Home > Products > Radiator fan > 13.8 Inch 350mm 380V AC Industrial Equipment Cooling Fans
13.8 Inch 350mm 380V AC Industrial Equipment Cooling Fans
- 20000 Piece / Pieces per Month
- shenzhen
Product Details
Electric Current Type: | AC | Mounting: | Other, cooling fan | Blade Material: | Stainless Steel |
Place of Origin: | Guangdong, China | Brand Name: | MX/OEM/ODM | Model Number: | MX3505ABH22 |
Voltage: | 220/240v,380V, 220V - 380V | Power: | 190W | Air Volume: | 1500m³/h |
Speed: | 1350R/Min, 2860R/Min | Certification: | UL, CE, Other, UL ,CE, RoHS, TUV |
Product Description
13.8 Inch 350mm 380V AC Industrial Equipment Cooling Fans
Applications:
Topfan’s 350mm AC fan products are utilized by all type of machines which required heat reduction systems, such as computer information technology, network communications, as well as industrial production equipment, medical equipment, home appliances, etc.
Description:
- 220V , 380V AC FAN, used for cooling and ventilation.
- Frame: Aluminum, Painted Black
- Blade:metal
- Stator& Rotor: Silicon steel
- Magnet Wires: Copper 1 PEW
- Bobbin: PA-66 UL 94 V-0
- Bearing Type: Ball Bearing

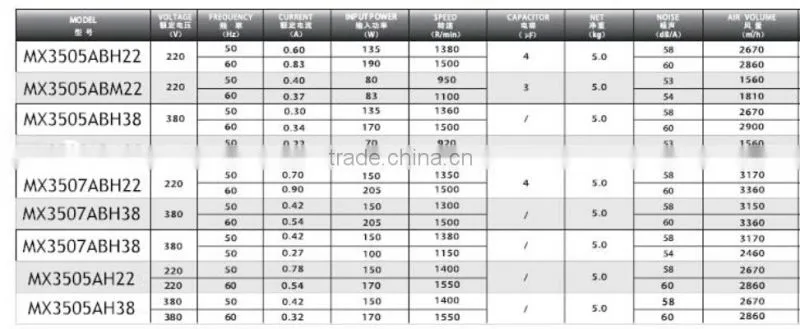

Specification:
1.Size(mm): 350 × 50mm
2.Model: MX3505ABH22
3.Rated voltage (v) : 220V, 380V
4.Current amp (Amp): 0.60/0.83A
5.Rated Input Power (Watt): 135/190
6.Speed : 1380/1500R/Min
7.Max air Flow: 2670/2860m³/h
8.Noise Leve (dB-A):58/60
11.Weight (KG): 5.0KG
Environmental Specification:
Item | Specification/Condition | |
01 | Operating Temp. Range | Temperature:-20℃~75℃ |
02 | Storage Temperature | Temperature:-30℃~140℃ |
03 | Life | 50000H |
Main Materials/Parts Specification:
(Item | Specification | |
01 | Blade | (PBT) PBT+15%GF |
02 | Frame | Aluminum ADC-12,Painted Black |
03 | Stator& Rotor | Silicon stee |
04 | Magnet Wires | Copper 2 UEW |
05 | Bobbin | PA-66 UL 94 V-0 |

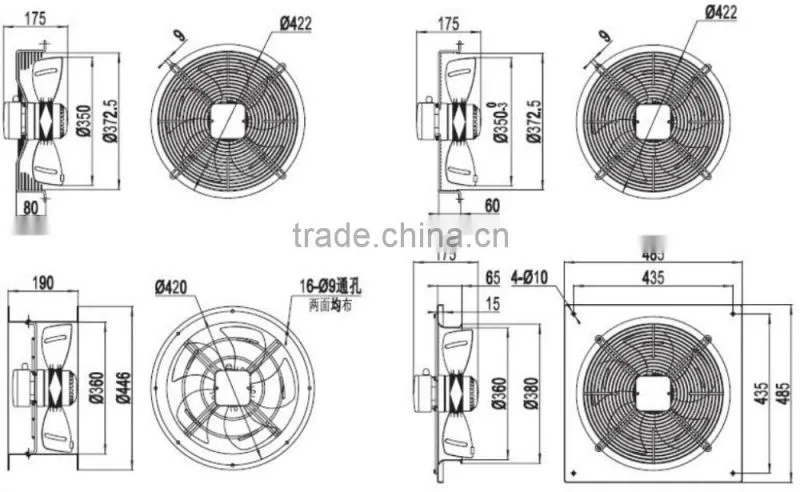

Dimension:
