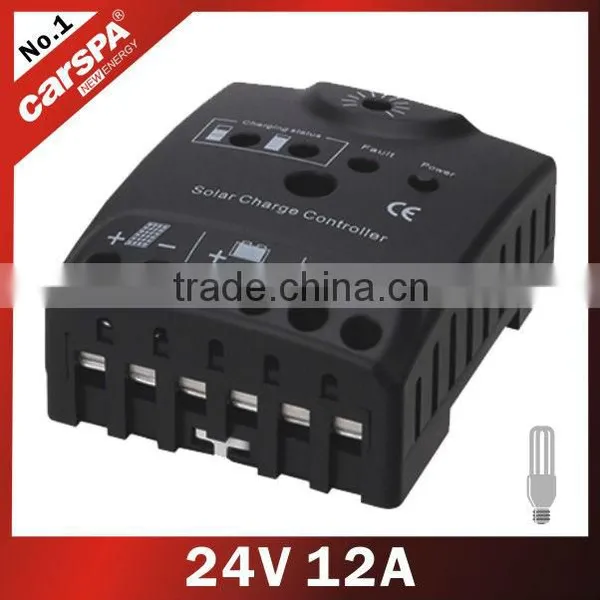

CD series 12A solar panel charge controller 24v (CD2412)

Specifications

smart compact design
Charging current: 12A
System Voltage: 24V
with DC load function

CD series 12A solar panel charge controller 24v (CD2412)



Why Choose Us?

1. Professional Manufacturer---9years experience
2. High Quality Products----Hot selling in European Market

3. Reliable Service---We serve for our clients with a golden team.

4. Powerful R&D Team---We have R&D centers in Shanghai & Shenzhen, which can provide the ODM service for you.

5. Advanced Technology---We have adopted the SMT & used the imported components.

6. Factory Management---5S System Management provides us with clean, ordered and joyful working environment.

7. Imported Main Components---We used the main components from oversea market, such as USA, JAPAN, TAIWAN, etc.



Introduction:
Our new solar charge controller are developed and engineered with the latest technical standards, representing the most innovative and benchmark technology in the industry.



Features:
1. Clear indication of charging status, easy to read
2. Maximum 16 Sq.mm connection terminals
3. Automatic protection for reverse polarity connection on batteries, solar panels and load output.
4. Full electronic protection: short circuit, reverse polarity and overload.
5. Battery remaining capacity based protection model and battery voltage based protection model.
6. Selectable charging model (gel battery and sealed battery)
7. Current back flow blocking
8. Automatic recovery after protection is initialized
9. Both wall and rail mountable
10. LED Indicators: 2 LED display 2 different charge state, Fault LED, Power press button



Specification:

Model	CD2410	CD2412	CD2415
System voltage	24V
Max. charge current	10A	12A	15A
Float charge	27.4V
Boost charge	29V
DC Load	10A	12A	15A
Temp. compensation	Yes
LED indicator	2 LED indicators for different charge status
Brands	CARSPA or OEM
Case color	Blue, Silver, black optional
Unit size	8.5*7*3.5cm
Unit weight	120g
Meas. / CTN	55.5*24.5*36cm
G.W. / CTN	16.6kg
Certification	CE-EMC / LVD, RoH
