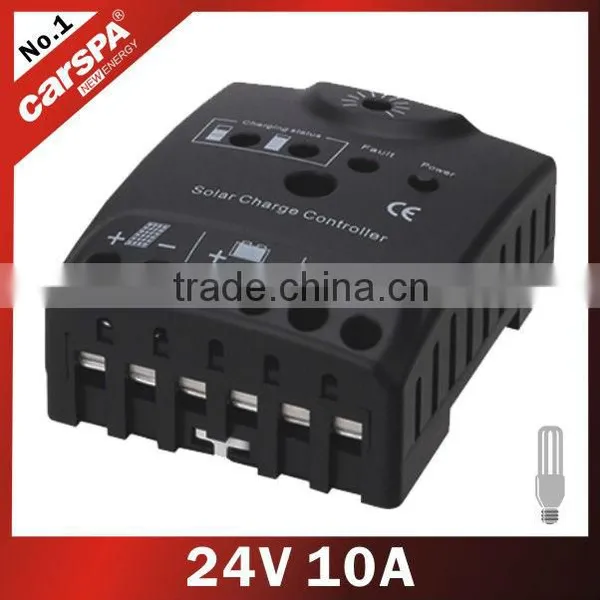

CD series 24V10A solar photovoltaic regulator (CD2410)
Why Choose Us?
1. Professional Manufacturer---9years experience
2. High Quality Products----Hot selling in European Market
3. Reliable Service---We serve for our clients with a golden team.
4. Powerful R&D Team---We have R&D centers in Shanghai & Shenzhen, which can provide the ODM service for you.
5. Advanced Technology---We have adopted the SMT & used the imported components.
6. Factory Management---5S System Management provides us with clean, ordered and joyful working environment.
7. Imported Main Components---We used the main components from oversea market, such as USA, JAPAN, TAIWAN, etc.
Introduction:
Our new charge controller are developed and engineered with the latest technical standards, representing the most innovative and benchmark technology in the industry.
Features:
1. Clear indication of charging status, easy to read
2. Maximum 16 Sq.mm connection terminals
3. Automatic protection for reverse polarity connection on batteries, solar panels and load output.
4. Full electronic protection: short circuit, reverse polarity and overload.
5. Battery remaining capacity based protection model and battery voltage based protection model.
6. Selectable charging model (gel battery and sealed battery)
7. Current back flow blocking
8. Automatic recovery after protection is initialized
9. Both wall and rail mountable
10. LED Indicators: 2 LED display 2 different charge state, Fault LED, Power press button
Specification:
Model |
CD2410 |
CD2412 |
CD2415 |
System voltage |
24V |
||
Max. charge current |
10A |
12A |
15A |
Float charge |
27.4V |
||
Boost charge |
29V |
||
DC Load |
10A |
12A |
15A |
Temp. compensation |
Yes |
||
LED indicator |
2 LED indicators for different charge status |
||
Brands |
CARSPA or OEM |
||
Case color |
Blue, Silver, black optional |
||
Unit size |
8.5*7*3.5cm |
||
Unit weight |
120g |
||
Meas. / CTN |
55.5*24.5*36cm |
||
G.W. / CTN |
16.6kg |
||
Certification |
CE-EMC / LVD, RoH |
||
