Home > Metallurgy, Mineral & Energy > Solar & Renewable Energy > Solar Controller > C Series Pwm Solar Charge Controller 12v/24v 12a(C12/24-12)

C Series Pwm Solar Charge Controller 12v/24v 12a(C12/24-12)

Name: C Series Pwm Solar Charge Controller 12v/24v 12a(C12/24-12)
Brand: CARSPA
SKU: 119403675

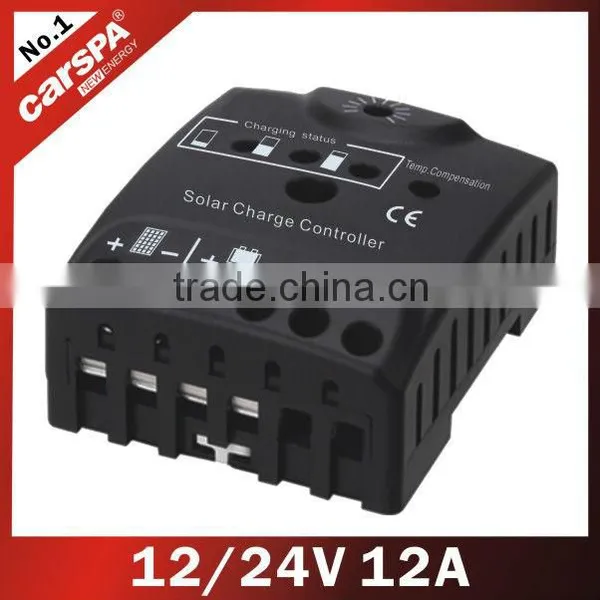

C Series Pwm Solar Charge Controller 12v/24v 12a(C12/24-12) thumbnail-1

C Series Pwm Solar Charge Controller 12v/24v 12a(C12/24-12) photo-1

Negotiable MOQ: 1000 Pieces (Price negotiable depending on order volume and customization)

Key Specifications

Get Latest Price

Place of Origin:

Zhejiang, China

Brand Name:

CARSPA

Model Number:

C12/24-12

Contact Supplier Request Quote Chat Now

Zhejiang Carspa New Energy Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

ningbo or shanghai

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Zhejiang, China

Brand Name CARSPA

Model Number C12/24-12

Application Charger Controller

Rated Voltage Other, 12/24V auto.charging

Maximum Current 12A

C series pwm solar charge controller 12v/24v 12a(C12/24-12)

Introduction:

Our new charge controller are developed and engineered with the latest technical standards, representing the most innovative and benchmark technology in the industry.

Features:
1. Clear indication of charging status, easy to read
2. Maximum 16 Sq.mm connection terminals
3. Automatic protection for reverse polarity connection on batteries, solar panels and load output.
4. Full electronic protection: short circuit, reverse polarity and overload.
5. Battery remaining capacity based protection model and battery voltage based protection model.
6. Selectable charging model (gel battery and sealed battery)
7. Current back flow blocking
8. Automatic recovery after protection is initialized
9. Both wall and rail mountable
10. Automatic temperature compensation
11. 3 LED dispay 3 different charge state : >25%,25~75%,>75%
12.12V/24V auto.switch

Specification:

Model	C12/24-10	C12/24-12	C12/24-15
System voltage	12/24V Auto. Switch
Max. charge current	10A	12A	15A
Float charge	13.7V/27.4V
Boost charge	14.5V/29V
Temp. compensation	Yes
LED indicator	3 LED indicators for different charge status
Brands	CARSPA or OEM
Case color	Blue, Silver, black optional
Unit size	8.573.5cm
Unit weight	120g
Meas. / CTN	55.524.536cm
G.W. / CTN	16.6kg
Certification	CE-EMC/LVD, RoHS
Warranty	24 months
