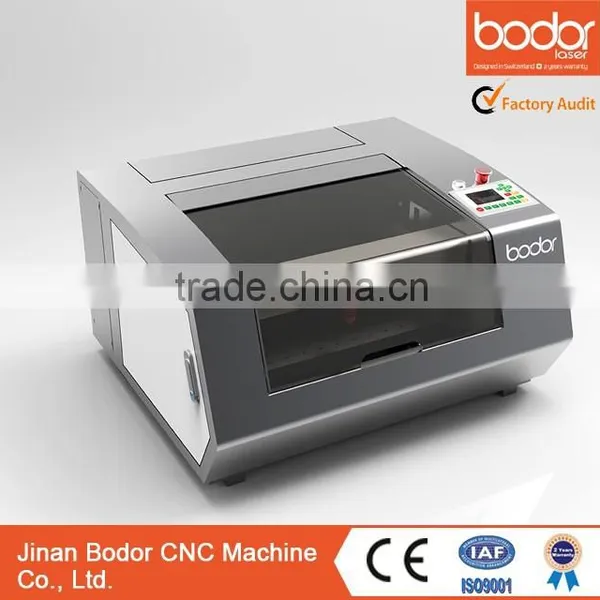

eastern laser cutting machine

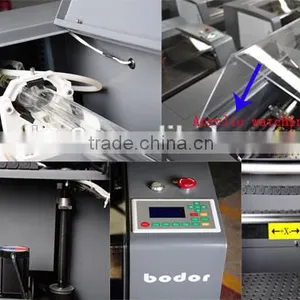

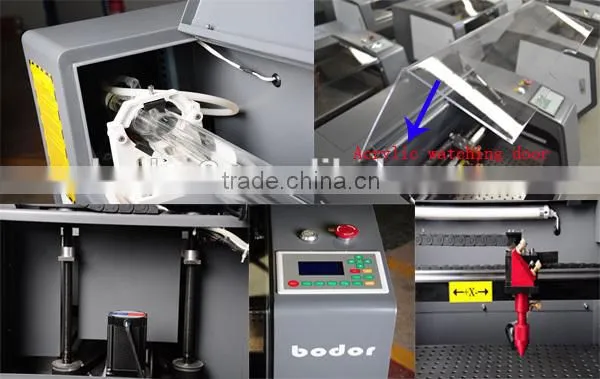

Laser engraving machine advantages
1. Modern smart design. Put on table and work easily.
2. Stronger frame together with HIWIN square rail, high accuracy.
3. Transparent acrylic watching door, easy checking work process.
4. Independent laser tube cabinet, protect tube and easy change.
5. Stainless steel comb working table, avoid rust.
6. Red cross point offers the highest accuracy position.
7. High efficiency tube with stable laser path. 40W—90W life time reach to 4000—10000 hours.
8. Professional motion control card offers continue fast curve cutting together with shortest path selection. Shorten work time.
9. U disk offline operation makes work convenient.
Machine parameter
Model |
BCL0503MU |
BCL0605MU |
Working Area |
500*300mm |
600*500mm |
Laser Power |
40W/50W/60W/90W |
|
Laser Type |
CO2 Sealed Laser Tube, 10.6μm |
|
Cooling Type |
Water Cooling |
|
Engraving Speed |
0-60000mm/min |
|
Cutting Speed |
0-40000mm/min |
|
Laser Output Control |
(0-100% Set by Software ) |
|
Min. Engraving Speed |
Chinese: 2.0mm*2.0mm, English Letter: 1.0mm*1.0mm |
|
Highest Scanning Precision |
4000DPI |
|
Locating Precision |
≤+0.01mm |
|
Controlling Software |
DSP Control System |
|
Graphic Format Supported |
DST PLT BMP DXF DWG AI LAS,etc |
|
Compatible Software |
TAJIMA,CORELDRAW,PHOTOSHOP,AUTOCAD,etc |
|
Color Separation |
Yes |
|
Drive System |
High-precision 3-phase Stepper Motor |
|
Auxiliary Equipments |
Exhaust Fan and Air Exhaust Pipe |
|
power Supply |
AC110V/220V+10%,50HZ/60HZ |
|
Working Environment |
Temperature:0-45°C,Humidity 5-95%(No Condensate Water) |
|
Optional Spare Parts |
Honeycomb Worktable, Rotary Device,Auto-focus Device |
|
eastern laser cutting machine parts
Appliation
Non-metal tubular products ,Mould industry(construction mould ,aviation and navigation mould,wooden mould).Advertising industry.decoration,arts and crafts,electronics,electric appliances.
Rubber,bamboo products,wooden products,PV,Acrylic,resin,ABS board,chimney and all non-metal tubular products

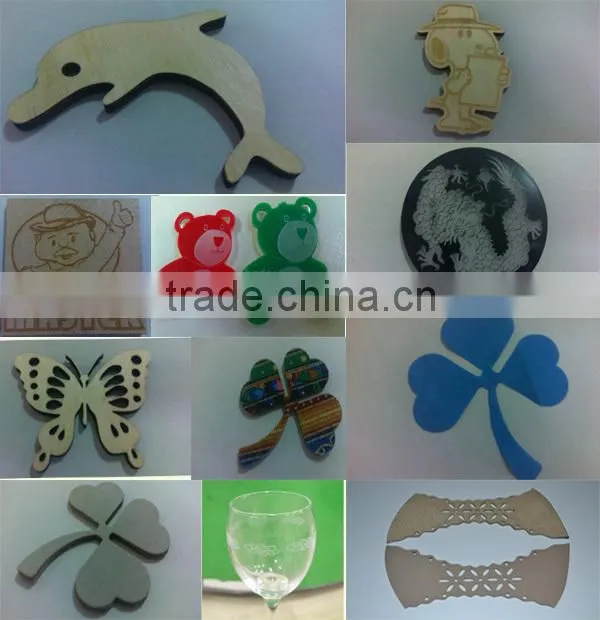

Machine samples
Why do you choose us?

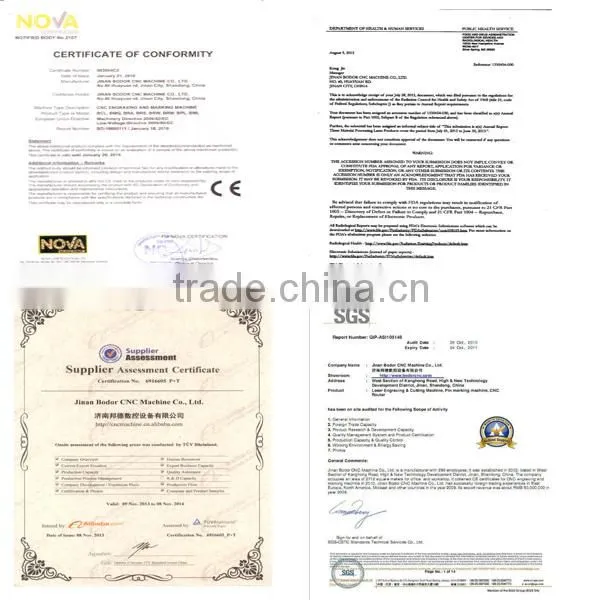

Our certificate
Look forward for agent all over the world
