Specifications
1)2 years warranty;2)Up-down table;
3)Red cross position;
4)CE,BV,ISO,TUV
5)Type:cnc machine

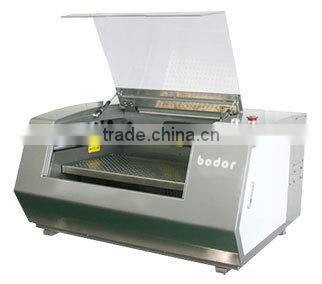

Desktop Laser Cutter
Mini laser engraving cutting machine 0503MU 0605MU
1. High-efficiency co2 laser tube 40w/50w/60w/90w(RECIW2)
2. Electric up and down working table 160mm
3. Stainless steel hollow working table
4. Red dot cross position system
5.Taiwan HIWIN square rail, high accuracy
6.Transparent acrylic watching door, easy checking work process
7. U flash offline operation
8. Independent laser tube cabinet, protect tube and easy change
Application Material
materials such as acrylic, crystal, plastic, wood planks(light planks,candlenut wood),bamboo ware, double color board, paper, leather, shell, coconut shell, ox horn, resin animal grease, ABS board, ceramic, lamp shade, etc.
Application
Mould industry (construction mould, aviation and navigation mould, wooden mould), advertising, decoration, arts and crafts,
electronics, electric appliances, etc.
| Model | BCL0503MU | BCL0605MU | Option |
| Working Area | 500*300mm | 600*500mm | According to Demands |
| Laser Power | 40W/50W/60W/90W | ||
| Laser Type | CO2 Sealed Laser Tube, 10.6μm | ||
| Cooling Type | Water Cooling | ||
| Engraving Speed | 0-60000mm/min | ||
| Cutting Speed | 0-40000mm/min | ||
| Laser Output Control | (0-100% Set by Software ) | ||
| Min. Engraving Speed | Chinese: 2.0mm*2.0mm, English Letter: 1.0mm*1.0mm | ||
| Highest Scanning Precision | 4000DPI | ||
| Locating Precision | ≤+0.01mm | ||
| Controlling Software | DSP Control System | ||
| Graphic Format Supported | DST PLT BMP DXF DWG AI LAS,etc | ||
| Compatible Software | TAJIMA,CORELDRAW,PHOTOSHOP,AUTOCAD,etc | ||
| Color Separation | Yes | ||
| Drive System | High-precision 3-phase Stepper Motor | ||
| Auxiliary Equipments | Exhaust Fan and Air Exhaust Pipe | ||
| power Supply | AC110V/220V+10%,50HZ/60HZ | ||
| Working Environment | Temperature:0-45°C,Humidity 5-95%(No Condensate Water) | ||
| Optional Spare Parts | Honeycomb Worktable, Rotary Device,Auto-focus Device |
||
transparent acrylic watching door
CO2 laser tube
laser head and stainless steel hollowing worktable
up and down table automatically
square rail with transmission belt
Samples:
inside package: transparent membrane

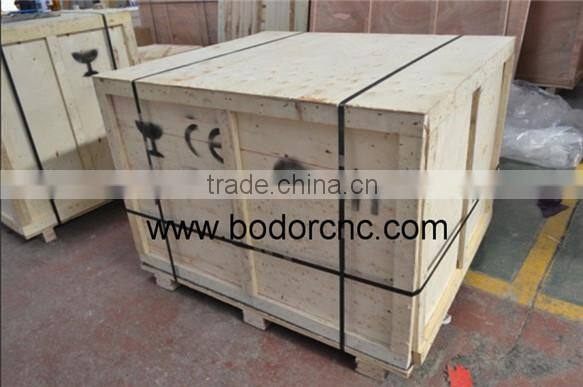

outside package: wooden boxes for sea transport or air transport
Jinan Bodor CNC Machine Co.,Ltd was founded in 2002.
In 2008 we formally changed name to Bodor with RMB 10 million registered capital.For 12 years,Bodor laser has always been devoted in studying and manufacturing laser cutting,engraving and marking etc
2 year warranty

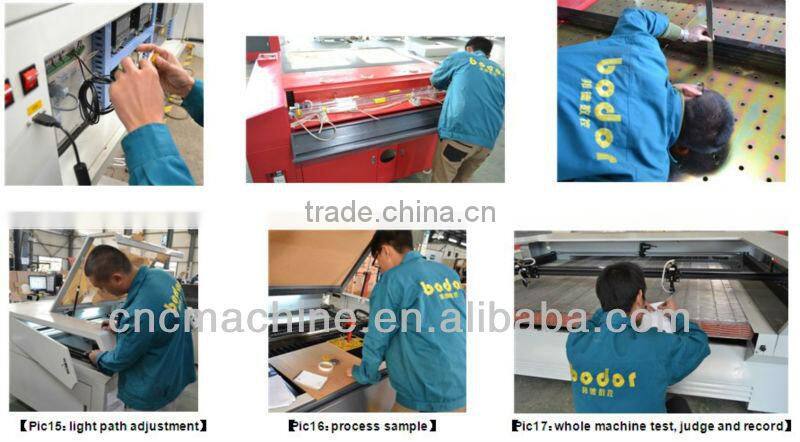

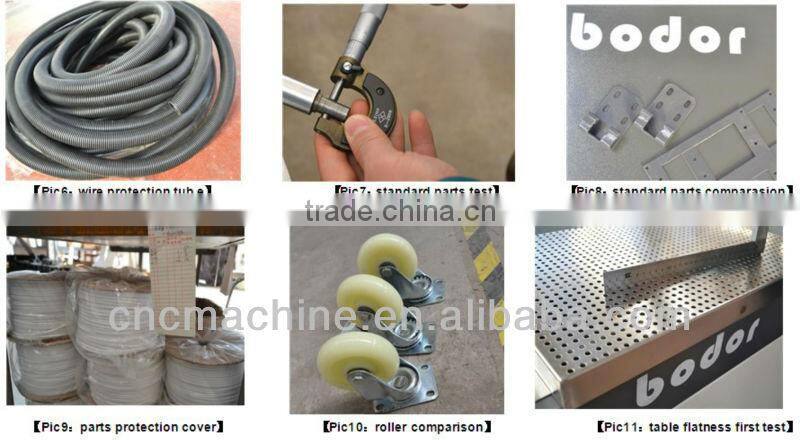

Quality control:
