Specifications

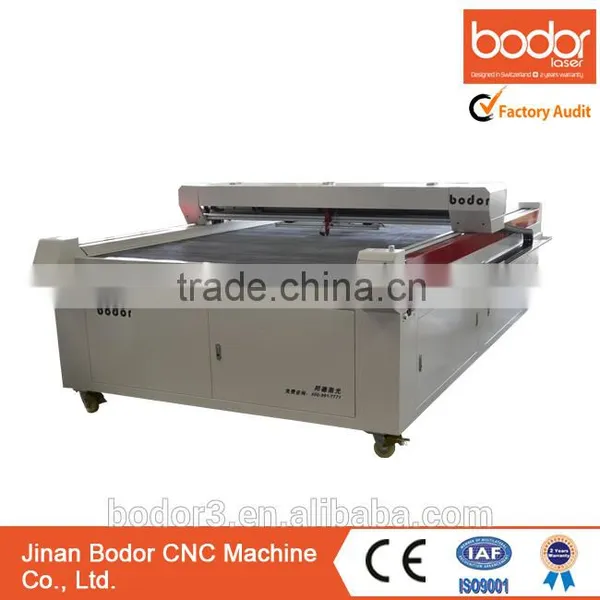

1700*3000mm laser cutting bed for fabric, textile1.2 year warranty
2. high density honeycomb worktable
3. CO2 sealed laser
1.In order to achieve large format cutting requirement, Bodor specially pushes-off laser cutting machine, which is applicable to auto decoration’s cutting and multi-plastic’s cutting, widely used in auto accessories and other industries.
2.Adopting machine tool working chassis which is more stable and stronger, so that stability and precision can be assured in high-movement processing.
3.Transmitting Motor system adopts linear guide guiding and precision gear, along with advance high-accurate motor and driver controlled by DSP system, which assures the processing precision and speed.
4.Stable and long lifespan high quality laser tube assures the work piece’s incision smooth, no need secondary operation.
5.Specially processing full-open net worktable, ensures easy and fast material-taking.
6.Special cutting equipment can save time, low down cast, and improve work efficiency to you.
7.Arranged with red dot position equipment, which could indicate position of laser head, getting rid of manual-position’s annoyance.
| Model | BCL1730B | BCL1835B | Optional |
| Applicable Materials Area | 1700*3000mm | 1800*3500mm | According to Demands |
| Actual Cutting Area | 1650*3000mm | 1750*3500mm | |
| Laser Power | 60w/80w/100w/130w//150w | ||
| Laser Type | CO2 Sealed Laser Tube , 10.6μm | ||
| Cooling Type | Water Cooling | ||
| Cutting Speed | 0-30000mm/min | ||
| Laser Output Control | 0-100% Set by Software | ||
| Min. Engraving Size | Chinese: 2.0mm*2.0mm, English Letter:1.0mm*1.0mm | ||
| Highest Scanning Precision | 4000DPI | ||
| Locating Accuracy | ≤+0.02mm | ||
| Controlling Software: | DSP Control System | ||
| Graphic Format Supported | DST PLT BMP DXF DWG AI LAS,etc | ||
| Compatible Software | CORELDRAW,PHOTOSHOP, AUTOCAD,TAJIMA,etc. | ||
| Color Separation | Yes | ||
| Drive System | High-precision 3-phase Stepper Motor | ||
| Auxiliary Equipments | Exhaust Fan and Air Exhaust Pipe | ||
| Power supply | AC110V/220V+10%,50HZ/60HZ | ||
| Working Environment | Temperature:0-45C,Humidity 5-95%(No Condensate Water) | ||
| Option | Blade Worktable | ||
driver systerm and power supply
About Bodor
Jinan Bodor CNC Machine Co.,Ltd was founded in 2002.In 2008 we formally changed name to Bodor with RMB 10 million registered capital.For 12 years,Bodor laser has always been devoted in studying and manufacturing laser cutting,engraving and marking etc.
With all Bodor staff persistence and hard working,Bodor laser has developed to a large-scale international manufacturing company.More accuracy,more automatically and higher quality products with intimate after-sales service enables Bodor be the leader of laser industry.Suitable services for customers,2-year warranty products,standard scientific management make bodor earn the best reputation and word-wide trusted customers.
For 12 years,Bodor laser machines cover all Chinese market and also very popular in America,West Europe,South Asian,East Asian etc. More than 80 countries. Bodor lasers will try our best to serve for you suitable laser solutions. Welcome you to join Bodor family,share top laser products and services together with word-wide customers.
Our Customer in Factory
Products series
Our sales team
Our Package Advantage:
1.Our wooden case is after fumigation treatment.Needn’t timber inspection,saving shipping time.
2.All the spare parts of the machine were covered by some soft materials,mainly using pearl wool.
Avoiding all damages that could happen in the delivery process.Then we’ll covered plastic wrap out it tightly,make sure intact of the covered soft materials,also avoiding Waterproof and rust proof.
3.The outmost is wooden case with fixed formwork.
4.The bottom of the wooden case has firm iron jack,convenient to Handling and transport.
We offer
- Sea Transportation
- Land Transportation
- Air Transportation
1. How to choose laser power ?
according to the length of laser tube
| laser power | length of laser tube | outside diameter of laser tube | acrylic cutting | wood cutting | plywood and MDF |
| 40w | 800mm | 50mm | 3mm | 1mm | / |
| 50w | 1000mm | 50mm | 5mm | 3mm | 1mm |
| 60w | 1250mm | 50mm | 8mm | 6mm | 3mm |
| 80w | 1600mm | 60mm | 15mm | 10mm | 6mm |
| 100w | 1650mm | 80+-2mm | 20mm | 12mm | 8mm |
|
W2:rated power90w max power100w |
1200mm | 80mm | 20mm | 12mm | 8mm |
|
W4:rated power120w max power135w |
1400mm | 80mm | 25-30mm | 16mm | 10mm |
|
W6:rated power150w max power170w |
1650mm | 80mm | 30-35mm | 22mm | 14mm |
|
W8:rated power170w max power200w |
1850mm | 90mm | 35-40mm | 24mm | 16mm |
2. What is in package?
machine with laser tube, double faced adhesive tape, path adjusting piece, focus scale, spanner, air pipe, water pipe, fan pipe...
3.What is M serial Packing size and Weight?
4.How to choose work table? Honeycomb table or stainless steel blade table?
For acrylic -we recommend stainless steel work table(blade worktable).
Reason: Acrylic is almost pure in light. Honey comb inside has 6 reflect pieces,when cutting acrylic,honey comb reflect pieces will make laser path reflect back to acrylic material surface.
For paper -we recommend honeycomb work table.
Reason:Honeycomb has flat and comb design ,When working, smoke will be absorbed totally inside to keep paper or leather in cleaning way.
Stainless Steel work table is between Honeycomb and Standard blade design.That is why we offer such workfloor as standard specification.
@What is the maximum diameter three jaw rotary device?
80mm
@How many mm is the up-down table?
160mm
@How can we do if the laser tube is longer the machine length?
RECI W2: Installing lengthened cover on the machine
