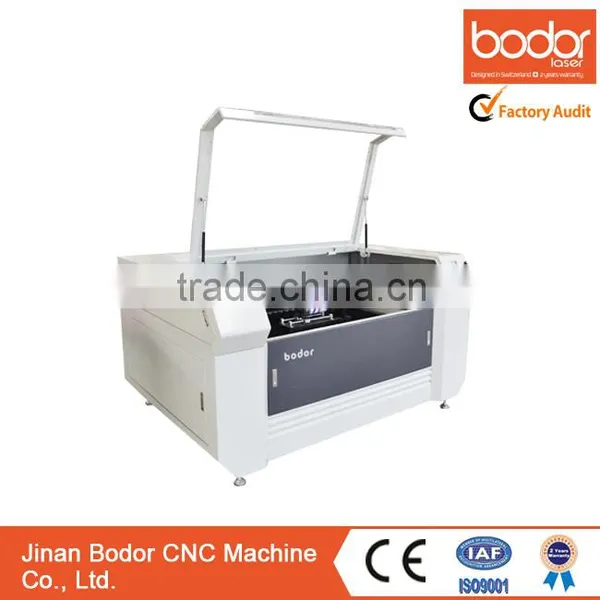

Website Fabric Laser Cutting Machine Eastern
US$ 1,500 - 5,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Laser Type:
CO2
Engraving Area:
1300x900mm
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Textile Fabric Cutting Laser Cutting Machine 1600*1000mmUS$ 3,000 - 6,000MOQ: 1 Set -
Fabric Laser Cutting Machine 1600*1000mmUS$ 3,000 - 6,000MOQ: 1 Set
-
Auto-feeding Double Head Laser Cutting Machine Fabric CuttingUS$ 3,000 - 6,000MOQ: 1 Set
-
Textile Laser Cutting Machine 1600*1000mmUS$ 3,000 - 6,000MOQ: 1 Set
-
Auto-feeding Laser Cutting Machine 1600*1000mmUS$ 3,000 - 6,000MOQ: 1 Set
Condition
New
Laser Type
CO2
Engraving Area
1300x900mm
Engraving Speed
0-60000mm/min
CNC or Not
Yes
Cooling Mode
Water Cooling
Applicable Material
Acrylic, Crytal, Glass, Leather, MDF, Paper, plastic, Plexiglax, Plywood, Rubber, Stone, Wood
Graphic Format Supported
AI, PLT, DXF, BMP, DST, DWG, LAS, DXP
Place of Origin
Shandong, China
Brand Name
Bodor
Model Number
BCL1006XU
Certification
CE, ISO, SGS, CCC, Other, CE, ISO, SGS, CCC, FDA
After-sales Service Provided
Overseas service center available
Specifications
alibaba website fabric laser cutting machine easternworking area:1300x900mm
laser tube:60w
two years warranty
CE/FDA
alibaba website fabric laser cutting machine eastern
Product Description
Main feature
1.Al platform design with 240mm height to ensure rotary device working smoothly.
2.48 gears improve lifting strength on basic of big contacting area.
3.Adjustable design of bold screw holder offer lower noisy and stable moving.
4.Both limited switches on top and bottom, protecting working table.
2.48 gears improve lifting strength on basic of big contacting area.
3.Adjustable design of bold screw holder offer lower noisy and stable moving.
4.Both limited switches on top and bottom, protecting working table.
Technical Parameter
| Model | BCL1006XU | BCL1309XU | Option |
| Working Area | 1000*600*240mm | 1300*900*240mm | Accordingtodemands |
| Laser Power | 40w/50w/60w/80w/100w/130w//150w | ||
| Laser Type | CO2 Sealed Laser Tube,10.6μm | ||
| Cooling Type | Water Cooling | ||
| Engraving Speed | 0-60000mm/min | ||
| Cutting Speed | 0-40000mm/min | ||
| Laser Output Control | 0-100% Set by Software | ||
| Min.Engraving Size | Chinese:2.0mm*2.0mm,English Letter:1.0mm*1.0mm | ||
| Highest Scanning Precision | 4000DPI | ||
| Locating Accuracy | ≤+0.01mm | ||
| Controlling Software | DSP Control System | ||
| Graphic Format Supported | DST PLT BMP DXF DWG AI LAS,etc | ||
| Compatible Software | CORELDRAW,PHOTOSHOP,AUTOCAD,TAJIMA,etc. | ||
| Color Separation | Yes | ||
| Drive System | High-precision 3-phase Stepper Motor | ||
| Auxiliary Equipments | Exhaust Fan and Air Exhaust Pipe | ||
| Power Supply | AC110V/220V+10%,50HZ/60HZ | ||
| Working Environment | Temperature:0-45C,Humidity:5-95%(No Condensate Water) | ||
| Packing Size | According to the Model | ||
| Net Weight | According to the Model | ||
| Option | Honeycomb Worktable,Rotary Device,Auto-focus Device | ||

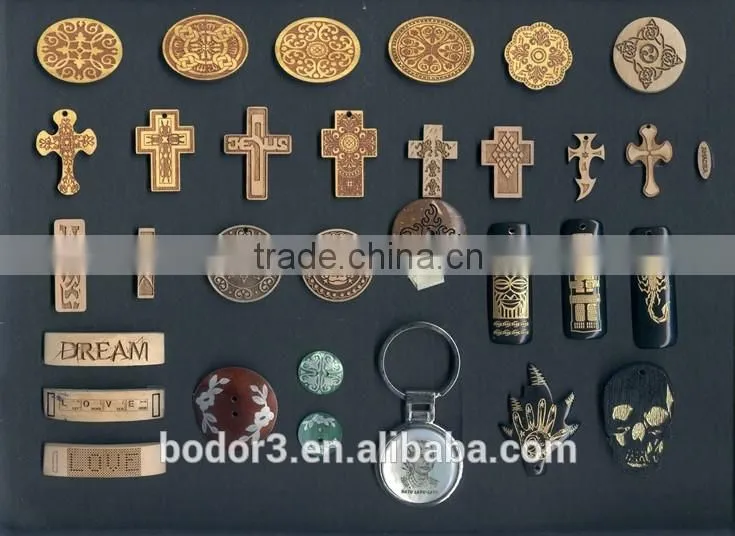

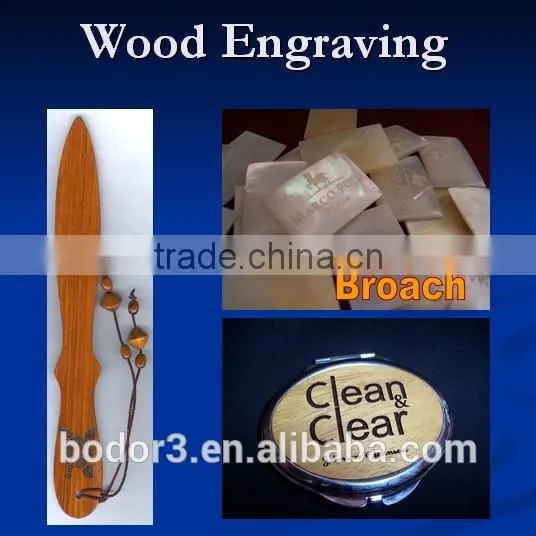

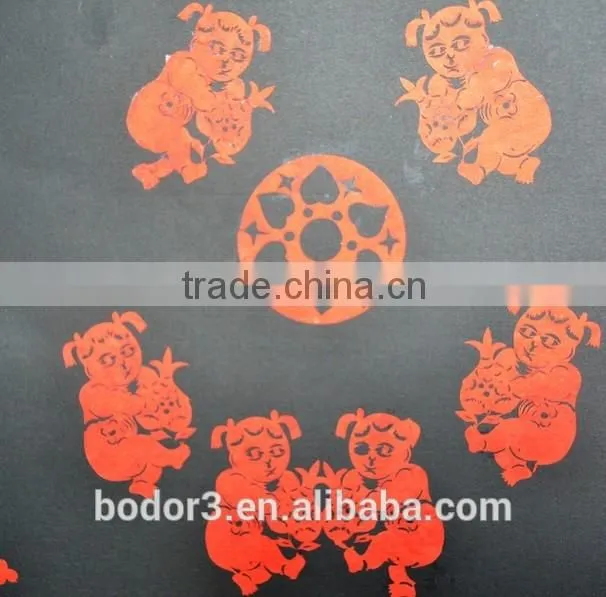

Samples

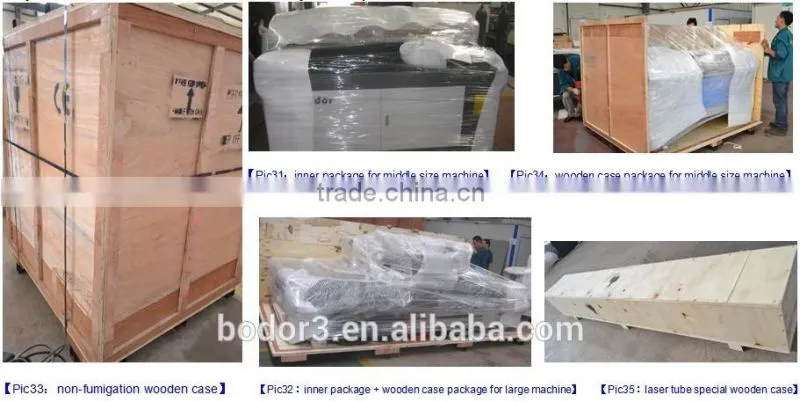

Packaging & Shipping
