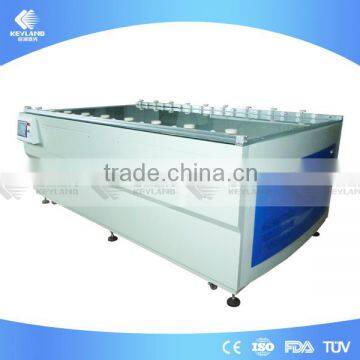

Auto Sensor Solar Panel Voltage Current Test Xenon Lamp Flash Solar Sun Simulator Price
Mainly used in automatic test and result record of solar mono-Si, poly-Si and a-Si cell module's Isc,Voc,Pmax,Vm,Im,FF,EFF,temp,Rs,Rsh ( Electrical performance test)
Solar Modules Test Machine / Sun Simulator / solar panel flash tester / I-V PV tester / xenon lamp solar simulator / solar panel simulator / solar system simulator
Testing area : 2000x1200mm
Testing power : 5W-300W
Test Parameter : Isc,Voc,Pmax,Vm,Im,FF,EFF,temp,Rs,Rsh.
Flash pulse 10~30ms, continuous adjustable ( 100ms for customized )
Keyland focuses on PV module production machines manufacturing and Turn-Key Solution .
A grade spectrum
A grade spectrum
A grade unevenness degree of irradiance
A grade instability of irradiance

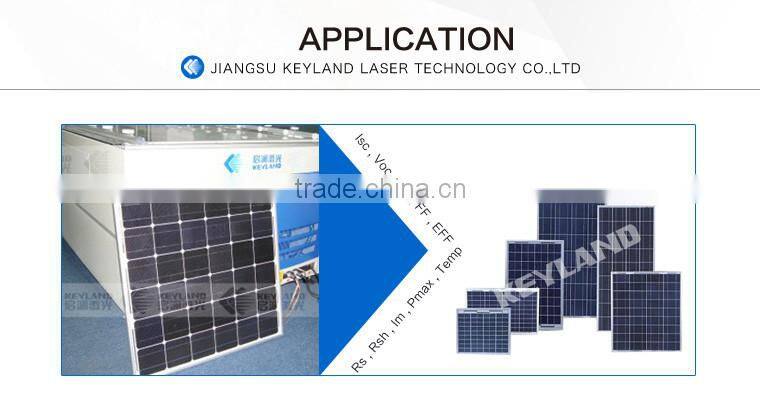

Sun simulator used in :
1.Solar Panel Production Line
2. University / Lab . / Research Institute and etc.
Keyland offers custom large area Sun Simulator Solar Flasher for testing , thin film ( both CdTe and CIGS ).
Sun simulator 's benefits :
• 4-line survey,14-bit 4-channel high-speed synchronous acquisition.
• 10 parameters display
• 8000 data collecting dots
• Irradiance&Temperature compensating automatically

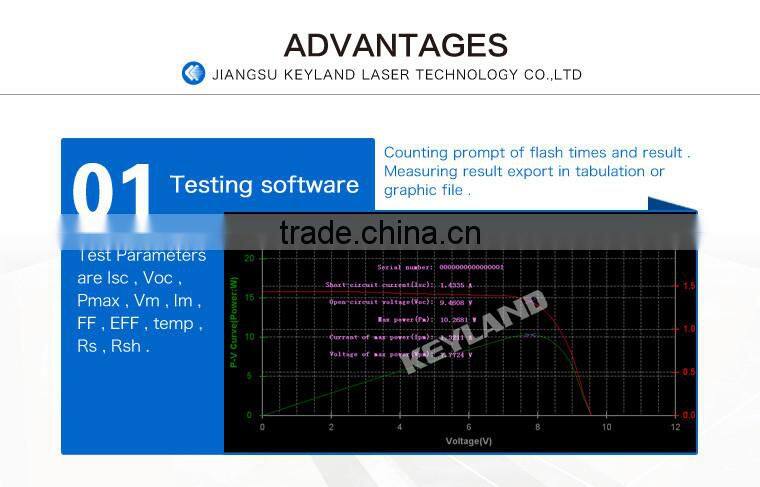

• Measurement parameter displays in tabulation and graphic way;
• Voice counts off and prompts;
• Counting prompt of flash times;
• 24hrs continuous working;
• Working life of imported xenon lamp is 300, 000 times of flash

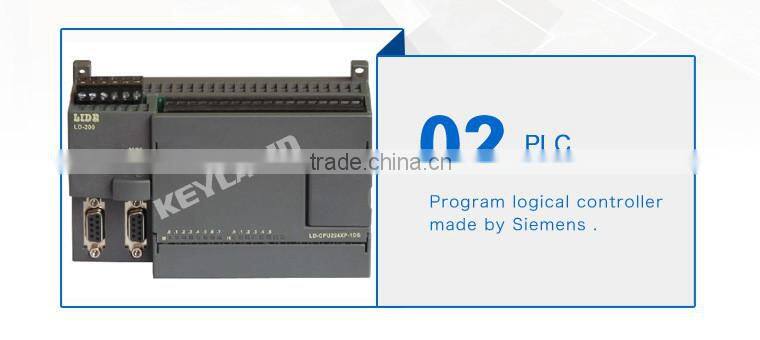

• Imported PLC control System
Sun simulator options:
Manual and automatical sliding tracks match the production line;
Special requests on customization of survey on various solar cell.
Demo video of sun simulator :
--how to operate solar simulator http://youtu.be/cS1d4i1Y4G8
--Solar simulator http://youtu.be/DZQpy8v9fMM
--Automatic solar simulator and EL tester http://youtu.be/or0tkRTmd4M
--How to install solar simulator 1parts http://youtu.be/QhW_zh0wI9A
--How to install solar simulator 2parts http://youtu.be/yPlN4RTMze8
--How to install solar simulator 3parts http://youtu.be/mCWALUL0MPE
--How to Calibrate of Keyland Solar Simulator http://youtu.be/LgNs75NnaZY
Before quotation, would you please let me know some items of solar simulator following?
1.What kind of solar cell modules do you want to test by our solar simulator?
2.What max. testing area do you demand?
3.Will you use in Lab. or solar panel production line?
Then, more details with good price will be sent . Also more industry solution will be supplied.

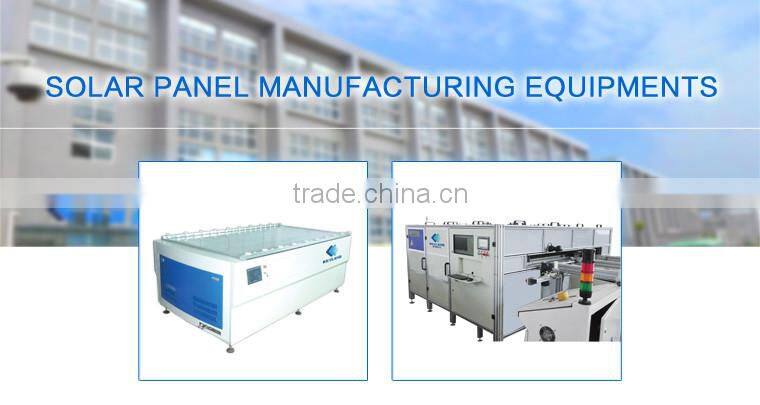

Keyland also manufacture solar panel making line equipments:
Notice:
Solar Simulator agents wanted all over the world.
Hope our good quality,comprehensive service and competitive price will help you expand your marketing sucessful.
About Keyland
More detials will be confirm , if you kindly leave a massage or contact us as follow :
CLICK "CONTACT SUPPIER" or "SEND MESSAGE" to send offer to me through alibaba.
