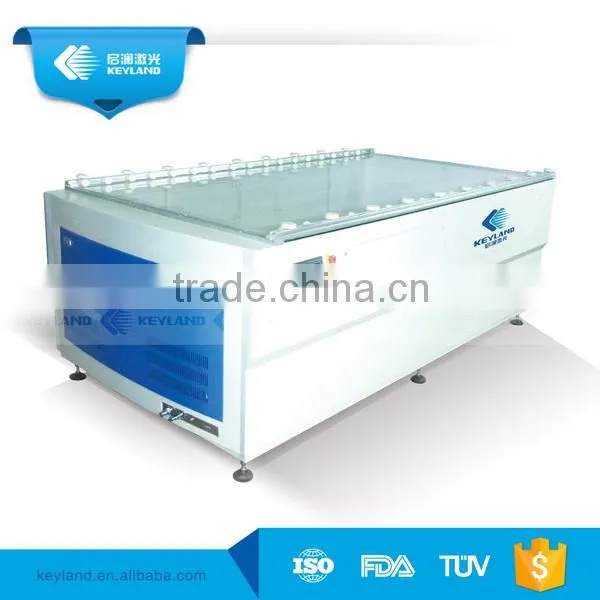

AM1.5 Sun Solar Simulator, Solar Module Tester Device, Flash Solar Panel Tester System
Simplify your solar module testing with KeyLand Laser's precision mesurement solutions!
Application
Mainly used in electrical performance auto test and result record of solar Mono-Si, Poly-Si or a-Si cell module / panel ( Monocrystalline, polycrystalline, and amorphous silicon).
Solar Simulator Technology characters
A grade spectrum;
A grade unevenness degree of irradiance;
A grade instability degree of irradiance
A grade test error,
A grade repeat test error;
Pneumatic and buffering contact, front probe contact, back contact;
Four-line survy; 14-bit 4-channel high-speed synchronous acquisition, 8,000 data collecting dots;
10 parameters display; measurement parameter displays in tabulation and graphic way;
Irradiance automatically compensating; temperature automatically compensating
Voice counts off and prompts; counting promts of flash time;
24h continous working; working life of imported Xenon lamp is 300,000 times of flash.
Solar Simulator Main Technical parameters
Type specifications GTM-5A-2012
Lamp spectrum In line with IEC60904-9 and JISC8933( Grade A)
Range of Light intensity 100mW/cm2(continous adjustable 70-120mW/cm2)
Light intensity non-uniformity ±2%( A grade)
Instability degree of irradiation ≤ ±2%(A grade)
Test results consistency ±0.5%
Test error of electrical proerties ≤±1%
Single flash time 10~100ms
Effective test range 2000X1200mm/5w~300w
Power Supply 220V ±10%, 5A/ 2KW/ 50-60Hz
Load time 5 s
Light Pulse Duration 10 ms
Data acquis. Speed per test 20 µs
Reference Cell Range 50 mV
Panels test per hour 700 pcs
Measuring voltage 0~100V (resolution 1mV)
Measuring current 0~20A (resolution 1mA)
Test parameters Isc,Voc,Pmax,Vm,Im,FF,EFF,Temp,Rs,Rsh
Detailed Product Description
1. Vacuum absorption and probes touching automatically system
2. Long-arc pulsed and longevity xenon lamp
3. High speed and big power electronic load
4. Data acquisition & processing software
Options and customizations
Manual and automatical sliding tracks match the production line; special request on
customization of survey on various solar cells.
Customize 100ms pulse width 225-1300nm dual light source.
Grade AAA Solar Simulator Under National Institution Inspection:

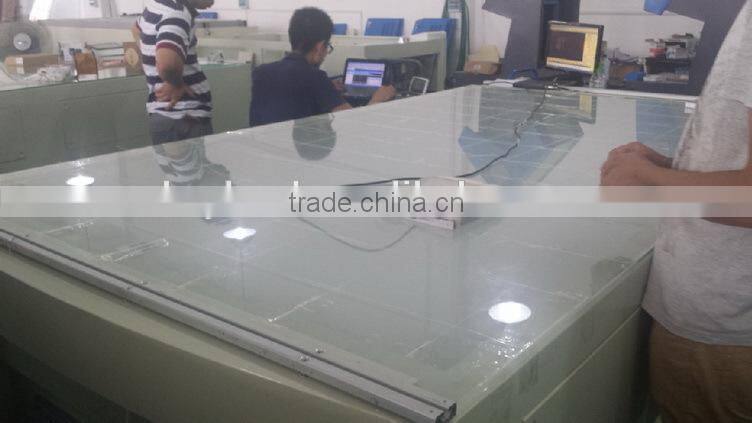

Solar Simulator at customer's factory:
We offer Whole set of Solar Panel Production Line Equipments:
Main Production Line Equipment:
1.Semi/Full Automatic Panel Laminator
2.Solar Cell Tester
3.EL Module Detector Machine
4.Solar Panel Testing Machine
Auxiliary Production Line Equipment:
5.Framing Machine
6.EVA/TPT cutting station
7.EVA/TPT transfer carrier
8.Single Solar cell soldering Welding station (interconnection)
9 .String Solar cell soldering Welding station (bus bar)
10.Soldering ribbon cutting machine
11.Cell string shelf
12.Ready material carrier
13.Module transfer carrier
14.Laying up station
15.Inspection station
16.Cell sorting table
17.Cleaning working table
18.Working table
19.Pneumatic glue gun
20.Compressor
21.Solar Cell Laser dicing (cutting, scribing ) machine (option)
22. Hydraulic pressure forklift
23.Power cable for machine
Machine application:

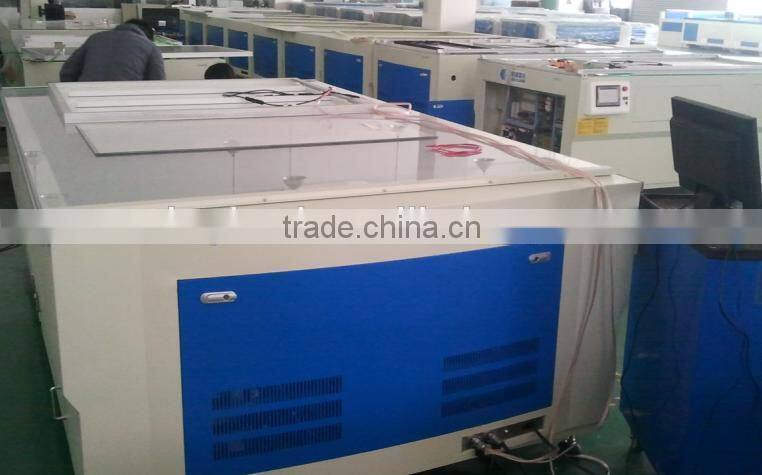

Solar Simulator Packing site:
Why Choose Keyland Solar Simulator:

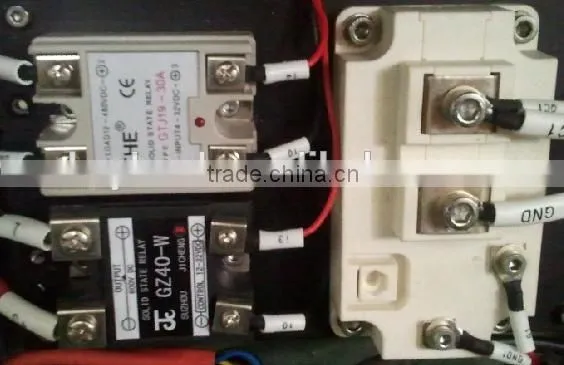

Keyland’s IGBT power

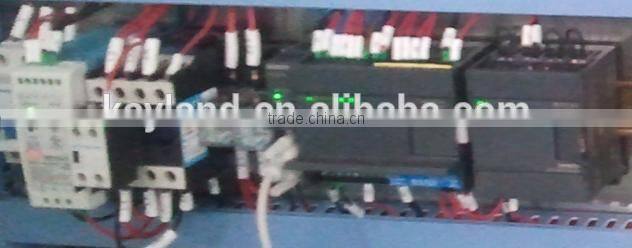

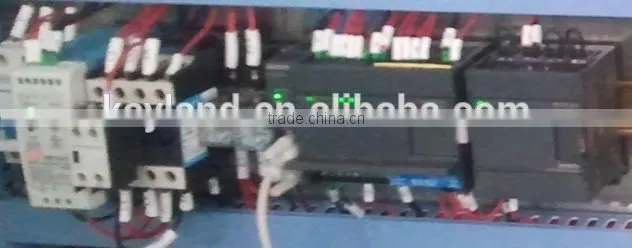

Keyland's Siemens PLC control Relay
Keyland's Version 3.0 Software gives a convenient interface:
Keyland's mass production factory ensures economic cost:
Keyland has got certificates:
