High quality solar cell machine 10w 20w for broken cells
Distributors/Agents wanted !
Fiber laser scriber machine 10w 20w for broken cells Model: GSC10F GSC-20F
What's the function of High quality solar cell machine ?

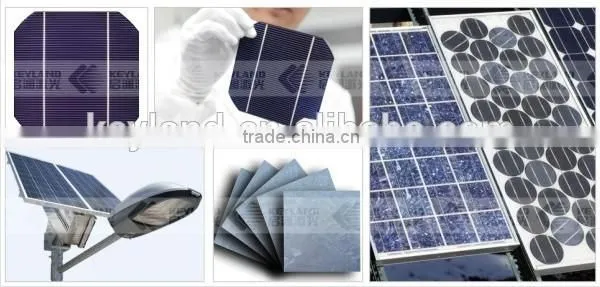

Laser Scriber,10w 20W IPG Fiber Wafer Solar Cells Scribing Machine is suitable for cutting,scribing of solar PV industry,just like mono crystalline silicon,poly crystalline silicon solar cell,amorphous ribbon silicon and silicon wafers.
What are the main parameters for High quality solar cell machine ?
Model |
GSC-10F |GSC-20F |
Laser wavelength |
1064nm |
Laser power |
10W |20W |
Scribing/cutting width |
30μm |
Scribing /cutting speed |
0-300mm/s |
Scribing/cutting accuracy |
±10μm |
Working area |
350x350mm |
Temperature control precision |
0.5°C |
Working power |
380V(220V)/50Hz/3kvA or 110V/60Hz |
Working table |
negative pressure absorbing and dust elimination |
Cooling method |
forced air cooling |
What are the features of the High quality solar cell machine ?
1. Imports of fiber lasers, to adapt to the environment more strong, and the better beam quality(mode TEM00) ,kerf finer,more smooth edge
2. Small size Compact design for easy moving and handling,in line with moder business management 6s
2.High efficiency electro-optical conversion.
3.High precision and Air cooling
4.Stable and continuous processing but lower operation cost
5.Easy&convenient operation
6.Maintenance-free (no damageable parts&consumable parts be replaced)
7.Touch screen control,servo motor for option
8.Automatic absoption and without foot pedal
9.Imported Core parts

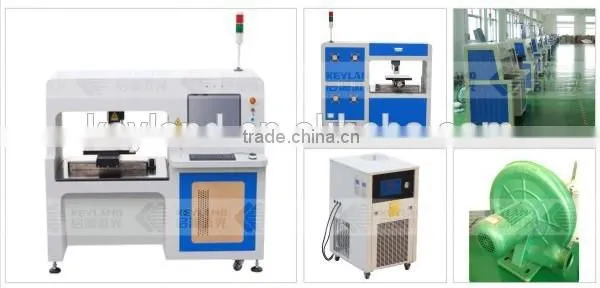

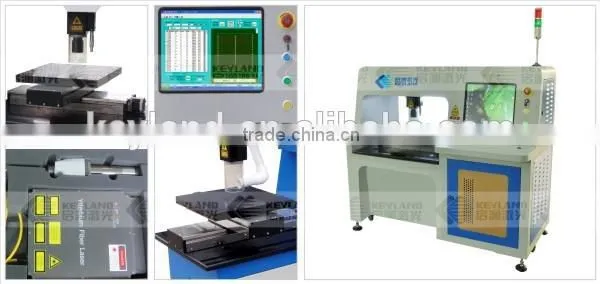

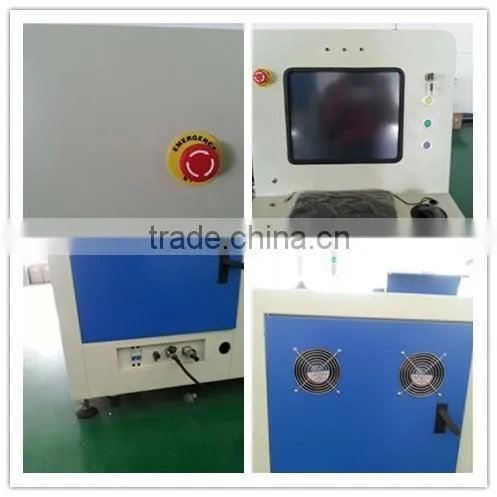

Detail pictures of machine for more clearly to know the machine:
More reasons to choose us:
Price advantages:
We are direct manufaturer,no middle man, you can get competitive High quality solar cell machine
price .
Quality advantages:
More than 20 years experience in laser industry, we are able to provide
professional design machine.
We are CE/ISO/compliant, you can get high quality product;
Service advantages:
We can ship the machinery to your door. All you need is providing us your address in the inquiry.
We are direct manufacturer ,you can get a satisfactory after sales service.
One year guarantee period for product quality.
Lifelong maintenance and spare parts supply.
Free training for machines installation and operation of the staffs.
Free samples supplied for customer verify.
Package:
Standard export Veneer Case.
Delivery time:
5 to 10 working days after receiving payment.
Our service:
1.12 Months warrenty on the whole machine .
2. Long life time technical support.
About us
Machines we supply:
Certificate:
Lizzy offers faster and better services! Just click "send"now!
You are welcome to contact us for getting more information about High quality solar cell machine .
