Solar Cell Laser Cutter
US$ 8,000 - 15,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Laser Type:
Fiber Laser
Applicable Material:
Other, Silicon wafer
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai/Shenzhen/Ningbo
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Keyland PV Cells Laser Cutting Machine With Laser Solar Cell Scribing SystemUS$ 2,500 - 15,000MOQ: 1 Set -
Keyland Silicon Wafer Fiber Laser Wafer Dicing Machine 20wattsUS$ 9,000 - 15,000MOQ: 1 Set
-
High Performance 20w Fiber Laser Silicon Wafer Laser Cutting MachineUS$ 9,500 - 10,000MOQ: 1 Set
-
KEYLAND Broken Silicon Wafer CNC Scribing With Negative CutUS$ 9,000 - 15,000MOQ: 1 Set
-
Keyland Fine Edge Laser Cutting Machine for PV CellsUS$ 9,000 - 15,000MOQ: 1 Set
Condition
New
Laser Type
Fiber Laser
Applicable Material
Other, Silicon wafer
Cutting Thickness
1mm
Cutting Area
350x350mm
Cutting Speed
300mm/s
CNC or Not
Yes
Cooling Mode
Air Cooling
Control Software
RDcam Laserwrok
Graphic Format Supported
AI, BMP, DST, DWG, DXF, DXP, LAS, PLT
Place of Origin
Jiangsu, China
Brand Name
KEYLAND
Model Number
GSC10, GSC20
Certification
CCC, CE, GS, ISO, SGS, UL
After-sales Service Provided
Engineers available to service machinery overseas
Solar Cell Laser Cutter
What is Description of laser cutting machine?
Application
Scibing solar PV cells/silicon wafer into any shapes to meet different power requirement of solar panels.
Advance
Compared to mechanical machining and chemical treatment, the laser offers wonderful process control, the process is cost-efficient and gentle to the material.
Principle
The fundamental process of most laser structuring applications on solar cells is the direct laser-induced vaporization and melt ejection by nanosecond laser pulses. The structuring processes, which are already used in many industrial pilot- and volume productions, offer big advantages due to their high speeds

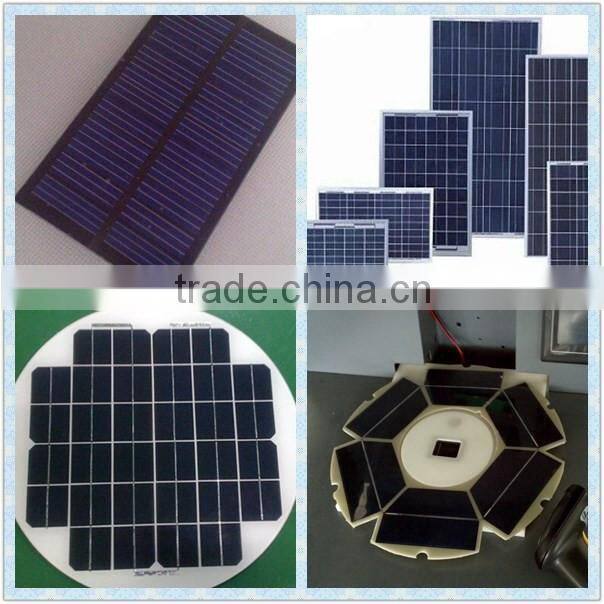

Solar cells have been cut into any shapes & sizes.
What is Features of laser cutting machine?
- Smaller pulse width, higher peak power brings faster cutting speed.
- Auto vac-sorb worktable lower the risk of break cells/wafers.
- Lower cost compared to fiber laser.
- Servo motor optional for high-end market.
- Powerful software easy to operate. It can show the cutting line preview.
- Wonderful cutting edge easy to seperate
What is Specifications of laser cutting machine?
| Model | GSC-50S | GSC-10E |
| Output power | 50W | 10W |
| Cooling way | Water | Air |
| Wavelength | 1.06μm | |
| Scribing line width | 50μm | |
| Max scribing speed | 120mm/s | |
| Scribing accuracy | ±10μm | |
| Laser repetition frequency | 20KHz-100KHz | |
| Worktable moving speed | ≥80mm/s | |
| Working table | Automatic vacuum 350*350mm |
|
| Temperature control accuracy | 0.5°C | |
| Power supply | 380V/220V, 50Hz, 3kVA | |

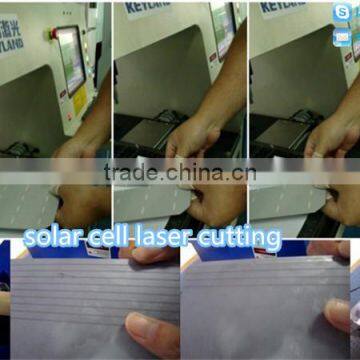

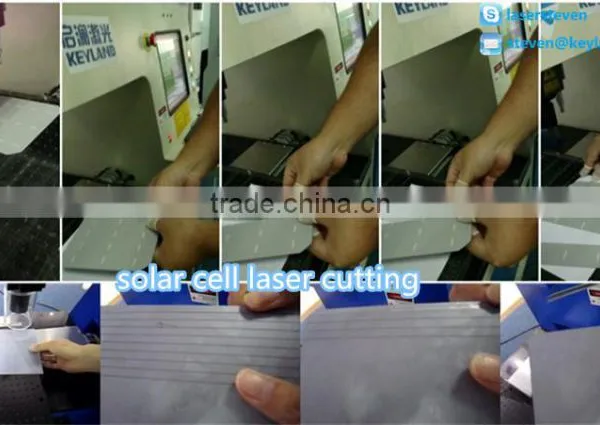

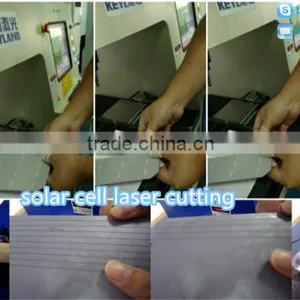

Machine Photos

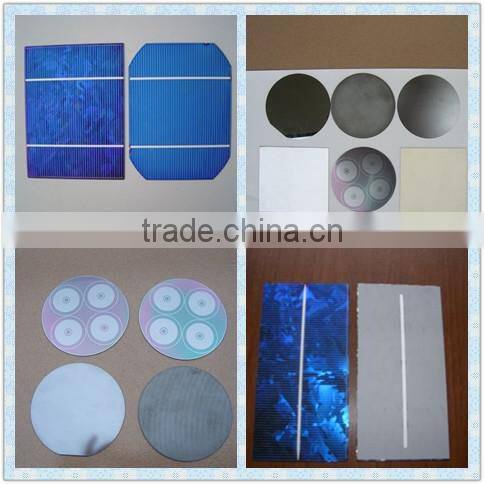

Work sample
DEMO VIDEOS
(copy the link to a new tab to watch)
| Laser cutting solar cell | http://youtu.be/fPheJhxrx0Y |
| Laser cutting wafer | http://youtu.be/LWOcysXYzUI |
| Laser cutting solar cell 2 | http://youtu.be/85L0umXcTzI |
Company View
Why Choose us?
1. Real manufacturer, providing factory direct selling price.
2. Capable of support operator training, installation and after-sale services for Laser cutting machine.
3. 10 yeas in Solar/Laser industry.
4. Experience of building several solar production line in Turkey, India, Mexico and Korea.
5. Besides laser scribing solar cells machine, we can also supply solar cells testing & sorting machine, sun simulator solar panel testing machine.
