2016 New Model

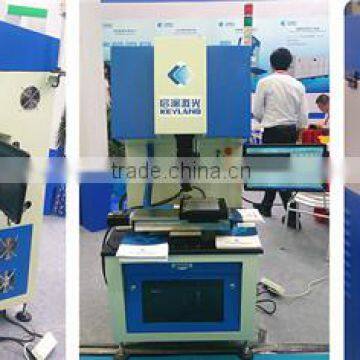

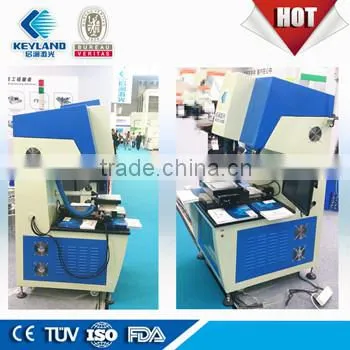

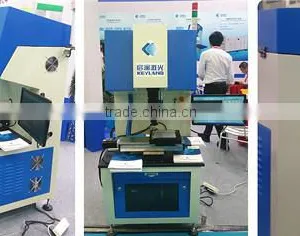

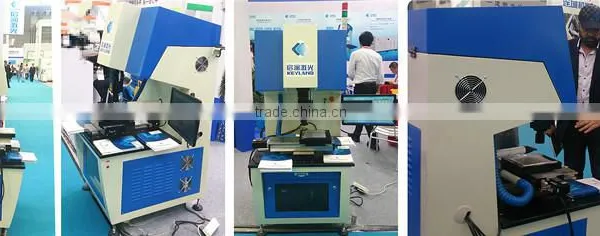

Keyland Solar Fiber Laser Cell Scribing Machine
Laser power: 10W 20W Fiber Laser
Solar Fiber Laser Cell Scribing Machine is suitable for cutting,scribing of solar PV industry,just like mono crystalline silicon,poly crystalline silicon solar cell,amorphous ribbon silicon and silicon wafers.
Details of Solar Fiber Laser Cell Scribing Machine :
Model |
GSC-10F |GSC-20F |
Laser wavelength |
1064nm |
Laser power |
10W |20W |
Scribing/cutting width |
30μm |
Scribing /cutting speed |
0-300mm/s |
Scribing/cutting accuracy |
±10μm |
Working area |
350x350mm |
Temperature control precision |
0.5°C |
Working power |
380V(220V)/50Hz/3kvA or 110V/60Hz |
Working table |

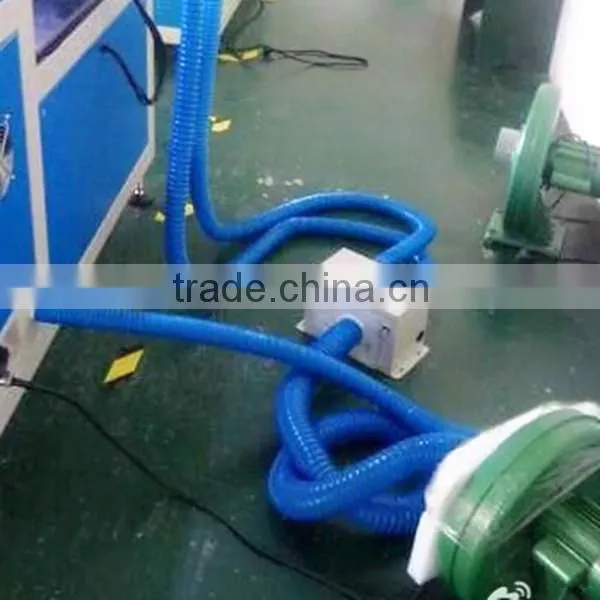

negative pressure absorbing and dust elimination |
Cooling method |
forced air cooling |
*Lucia Lv will tell you how to choose suitable Solar Fiber Laser Cell Scribing Machine .Meanwhile, your sampls can be sent to us for testing cutting by our Solar Fiber Laser Cell Scribing Machine , the
cutting performance will make you sure whether it is right machine for your choose.
Our Solar Fiber Laser Cell Scribing Machine 's Characters:
1. Imports of fiber lasers, to adapt to the environment more strong, and the better beam quality(mode TEM00) ,kerf finer,more smooth edge
2. Small size Compact design for easy moving and handling,in line with moder business management 6s
2015 New Model:
2014 Old Version
2.High efficiency electro-optical conversion.
3.High precision and Air cooling
4.Stable and continuous processing but lower operation cost
5.Easy&convenient operation
6.Maintenance-free (no damageable parts&consumable parts be replaced)
7.Touch screen control,servo motor for option
8.Automatic absoption and without foot pedal
9.Imported Core parts
Details of Solar Fiber Laser Cell Scribing Machine :
Scribing Cutting solar cell/wafer sample :
Broken cell is used for Solar lamp,Sun hat,Sun toy,solar air conditioning and etc.
Application of Solar Fiber Laser Cell Scribing Machine :
Our Package and shipping way
We manufacture
|
Solar Fiber Laser Cell Scribing Machine end-user /agent/dealer/distributor wanted Hope our competitive price, good quality,comprehensive service will help you expand market sucessful |
