Most famous 16m truck-mounted scissor lift platform supplier
The overall description of our Aerial Work Platform truck series
We are a one truck manufacturer in China, and we can provide our customers various configurations trucks with different prices acording to your needs.
1.At present Our Truck with Euro 2 and Euro 3 Emission Standard;Drive model:4*2; Brand with Dongfeng, JMC, JAC, Foton, etc;
2.Cab: Double-Row( rated passagers:6),One&Half-Row(rated passagers:3), Steering control:Left Hand Dive/Right Hand Drive;
3.Working height:10m,12m,14m,16m,18m,20m,22m,24m;
4.Hydraulic lifting system: 360°rotation; Arms number:two, three, four or five arms;equip with H-mode hydraulic legs;
5.The hydraulic operation system is set in the upper and lower end of the truck, equip with working platform & lifting hook.
6.Romote control system is optional, that could control the truck engine start/stop, to save energy when the truck fixed-point working.

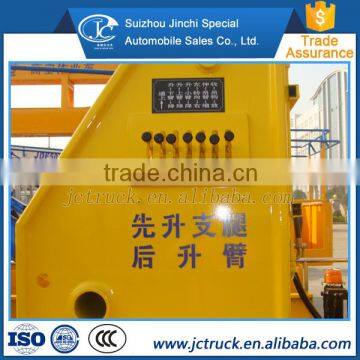

Product Photos
Most famous 16m truck-mounted scissor lift platform supplier
1.We are the manufacturer
2. OEM is OK
3. ISO 9100 certificate
4. Customizing our products according to your requirements.
Detailed parameters of this aerial work platform vehicle
| Technical parameters of Most famous 16m truck-mounted scissor lift platform supplier | ||||
| The totalmass(kg) | 5325 | Curb Weight(kg) | 5000 | |
|
Rated the quality of(kg) |
Chassis Model | DFA1070DJ35D6 | ||
|
Approach / departure angle(°) |
19/11 |
Front overhang / rear overhang |
1032/1968 | |
| Dimensions(mm) | 7400×1980×3100 |
Compartment dimension(mm) |
||
| Number of axes | 2 | Maximum speed | 90 | |
|
Tire Specifications |
7.00-16 14PR,7.00R16 14PR | Number of tires | 6 | |
| Front track | 1506,1404,1441 | Rear track | 1466,1458,1500 | |
| Wheelbase | 3300 | Axle load | 2920/4380 | |
| Number of spring | 8/9+5,6/8+4,6/6+5 | Type of fuel | Diesel | |
|
Emission Standards |
Euro3/Euro4 | |||
| Engine parameters | ||||
| Engine Model | CY4102-CE4F | Engine Manufacturer | Dongfeng chaoyang diesel engine co., LTD | |
|
Engine Displacement |
3856 | Engine power | 73 | |
|
Chassis Description |
1. Dongfeng 4x2 chassis, flat double row cab, left/right hand drive/AC; 2. Dongfeng Chaochai 4 cylinder 95HP diesel engine, 5 speed gear box, 7.00-16 tire; 3. Power steeling, gas brake. |
|||
|
Modified Description |
1. Operational height:10-26m,rated load of cage:200-250kg,four H-type hydraulic telescopic legs.. 2. 360°all rotation. 3. Two sets of operating system,operating mode:electronic control,cage operating and platform operating. |
|||
| Component | Basic composition:chassis,PTO,gear pump,chassis parts,folding arms/telescopic arms, oil cylinder,pipeline system,working cage, rotating mechanism,hydraulic system,electrical system. | |||
| Application | Convenient moving,used in narrow roads and streets.Aerial work platform can be used in aloft working of electricity,street lamp,municipal administration,gardens,transportation and so on. | |||
| Product advantage | reasonable price,multiple functions,easy operation | |||
What is the structure of our aerial work platform truck series?
What is the specification of our aerial work platform truck series?
Packing & Shipping, Trade Terms
Shipping
- By sea :/Nude/ Ro-ro ship / Bulk transport / Container packing / SKD / etc;
- Customers specifying freight forwarders or negotiable shipping methods;
- Delivery Time: 10-25 days.
Payment Terms
- Payment: T/T, L/C,Western Union, MoneyGram,PayPal; 30% deposits; 70% balance before delivery,
- MOQ: 1 UNIT
- Warranty: 1 year
- Trade Insurance
Why choose us?
1.We are Alibaba Trade Assurance Gold Supplier.
2.We are a factory manufacturing all kinds of special purpose vehicles,best production capability ,best quality control, best Service .
3.We have long-term cooperation with Shanghai Shipping Company with on time, safe and reliable shipping.
4. Our company can handle a variety of crelated certification of vehicles according to your needs.
5.100% QC inspection Before Shippment.
6.Our products meet OEM/ISO9001/CCC certifications,competitve price.
7. Warranty:1 year or 12 months.
Our Certificate
Our Company
How to Contact us?
Send your Inquiry Details in the Below, Click "Send" Now!
