2016 Factory 12M Dongfeng 12-16M Hydraulic Aerial Cage Hot Sale
- any port in China as your request
- T/T L/C D/P D/A Credit Card PayPal
You May Like
-
2016 12M Street Lights Maintenance Truck Price
-
2016 14M Aerial Work Platform 12-16M Cheap Price
-
Fashion 4X2 City Overhead Working Truck Price
-
Fashion 12M Overhead Platform Working Truck Sales
-
Fashion 14M China Factory High-altitude Operation Truck Net Price
-
Latest 4X2 Building Overhead Working Truck Factory Price
Product Details
| Transmission Type | Manual | Condition | New | |
| Emission Standard | Euro 3 | Fuel Type | Diesel | |
| Dimensions (L x W x H) (mm) | 7615X1990X2995 | Place of Origin | Hubei, China | |
| Brand Name | DongFeng | Model Number | EQ1042NJ20D3 |
Product Description

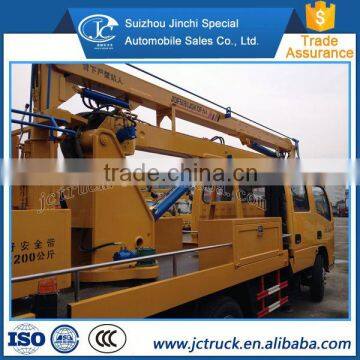

2016 factory 12M dongfeng 12-16M hydraulic aerial cage hot sale
The overall description of our Aerial Work Platform truck series
We are a one truck manufacturer in China, and we can provide our customers various configurations trucks with different prices acording to your needs.
1.At present Our Truck with Euro 2 and Euro 3 Emission Standard;Drive model:4*2; Brand with Dongfeng, JMC, JAC, Foton, etc;
2.Cab: Double-Row( rated passagers:6),One&Half-Row(rated passagers:3), Steering control:Left Hand Dive/Right Hand Drive;
3.Working height:10m,12m,14m,16m,18m,20m,22m,24m;
4.Hydraulic lifting system: 360°rotation; Arms number:two, three, four or five arms;equip with H-mode hydraulic legs;
5.The hydraulic operation system is set in the upper and lower end of the truck, equip with working platform & lifting hook.
6.Romote control system is optional, that could control the truck engine start/stop, to save energy when the truck fixed-point working.

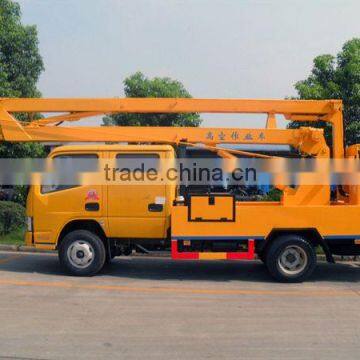

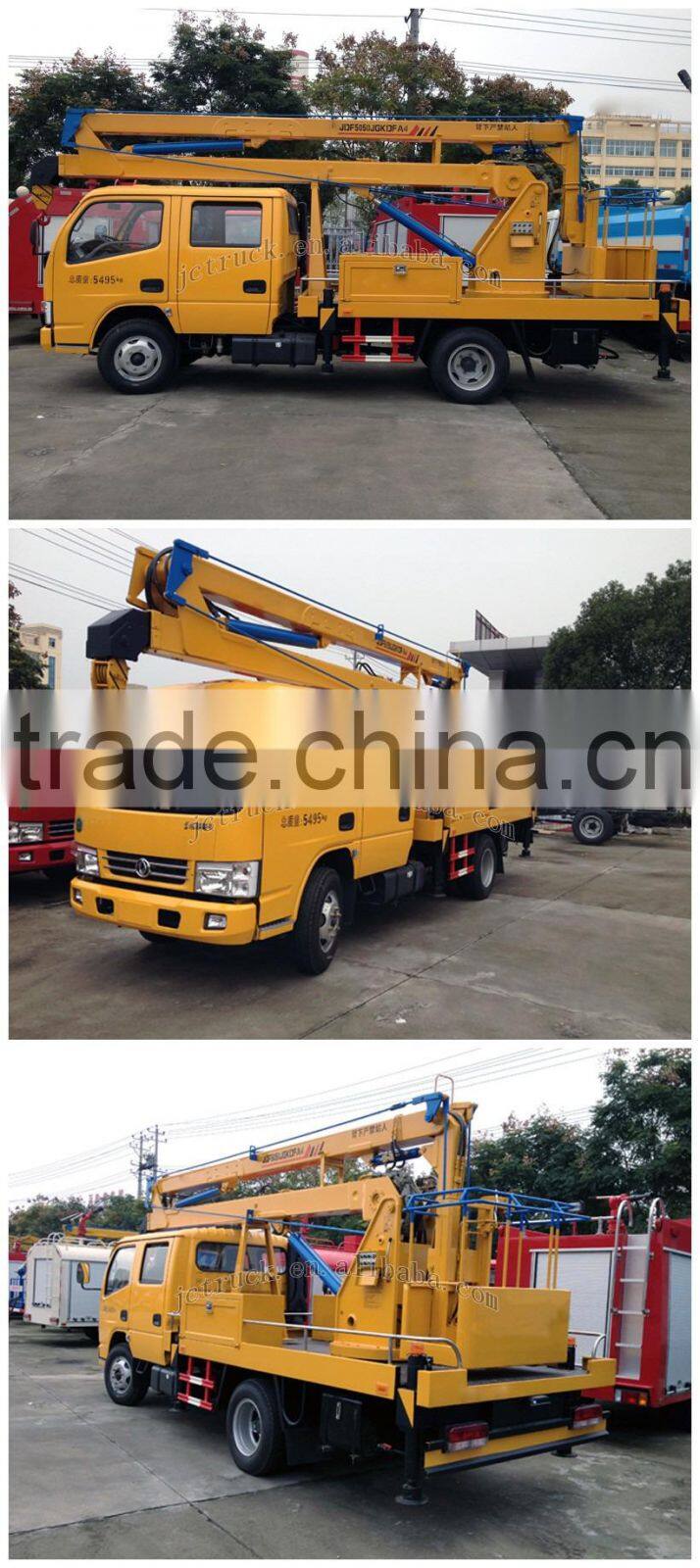

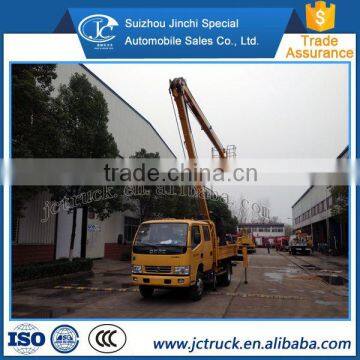

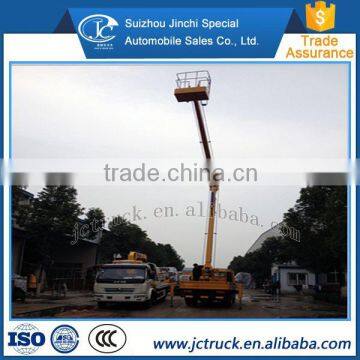

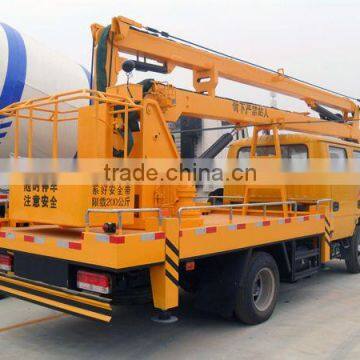

Product Photos
2016 factory 12M dongfeng 12-16M hydraulic aerial cage hot sale
1. We are the manufacturer.
2. OEM is OK.
3. ISO9001 certificate
4. best quality and price
Detailed parameters of this aerial work platform vehicle
| Product | 2016 factory 12M dongfeng 12-16M hydraulic aerial cage hot sale | |
| Cab | Single sleeper row,Left/right hand drive with A/C | |
| Chassis | Brand | Dongfeng |
| Chassis model | EQ1042 | |
| Drive type | 4x2 | |
| Tire Spec. | 7.00-16 | |
| Tire Numbers | 6 | |
| Braking System | Air braking | |
| Clutch | Uniwafer, dry clutch, hydraulic remote control | |
| Transmission | Manual | |
| Engine | Model | CY4102-C3F |
| Horse Power(hp) | 95 | |
| Displacement(cc)/ Power(kw) | 3856/70 | |
| Emission | EuroIII | |
| Main Parameters | Overall dimension (L*W*H/mm) | 7615X1990X2995 |
| Wheelbase(mm) | 3300 | |
| Axles No. | 2 | |
| GVW(kg) | 4325 | |
| Curb Weight(kg) | 4000 | |
| Leaf spring No. | 8/9+5 | |
| Approaching/Departure Angle(°) | 19/13 | |
| Front/Rear track(mm) | 1506/1466 | |
| Front/Rear suspension(mm) | 1032/1983 | |
| Max speed(km/h) | 95 | |
| Front/Rear Axle Load(kg) | 1730/2595 | |
| Modified Description | 1.Equipment:Max operation height 14-22m, with tubular shape platform(rated load 200kg), 3 section folding arms, hydraulic 360°continuous rotation, 1 ton stretch hook, 4 H-shape hydraulic legs, biliateral pilot-controlled valve is adjustable(the control of the legs can be manual or individual); | |
| 2. Operating system: the lifting, rotating, landing and hook of the arm adopt with magnetic exchange valve system, electrical control operation (1set platform pilot switch and 1 set pilot switch in the cabin); | ||
| 3. Control system: equipped with emergency flameout device. | ||
| Application | This truck can safely and effectively to send staff to 18-22 meters high altitude operation or maintenance, installation, cleaning, photography, shipbuilding, chemical industry, electric power, pruning, replacement lamps and other engineering repair operations. | |

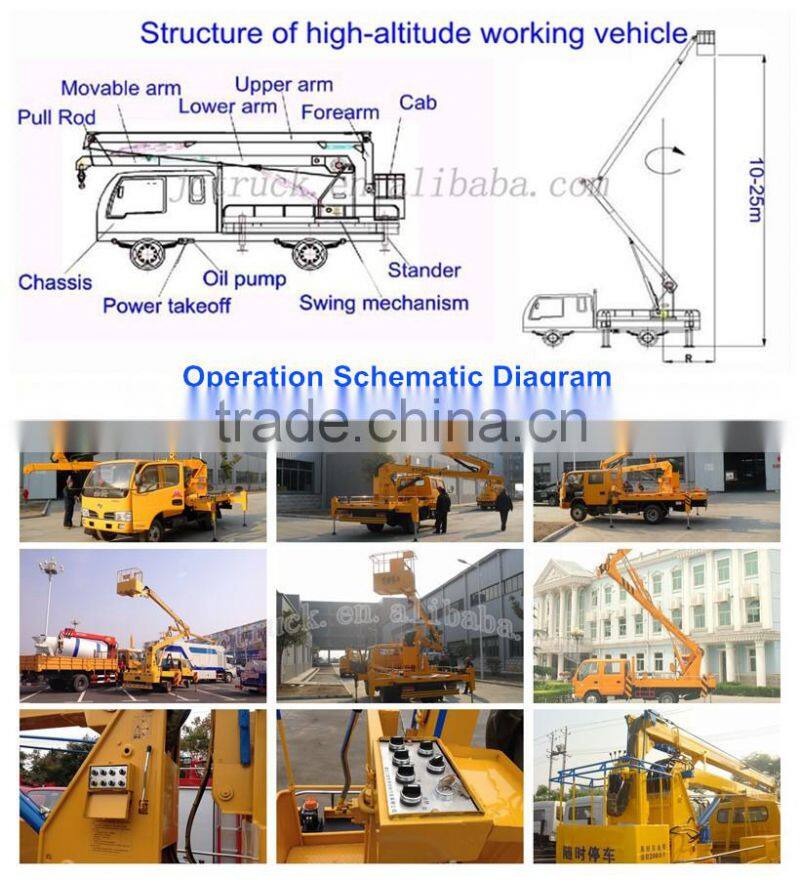

What is the structure of our aerial work platform truck series?

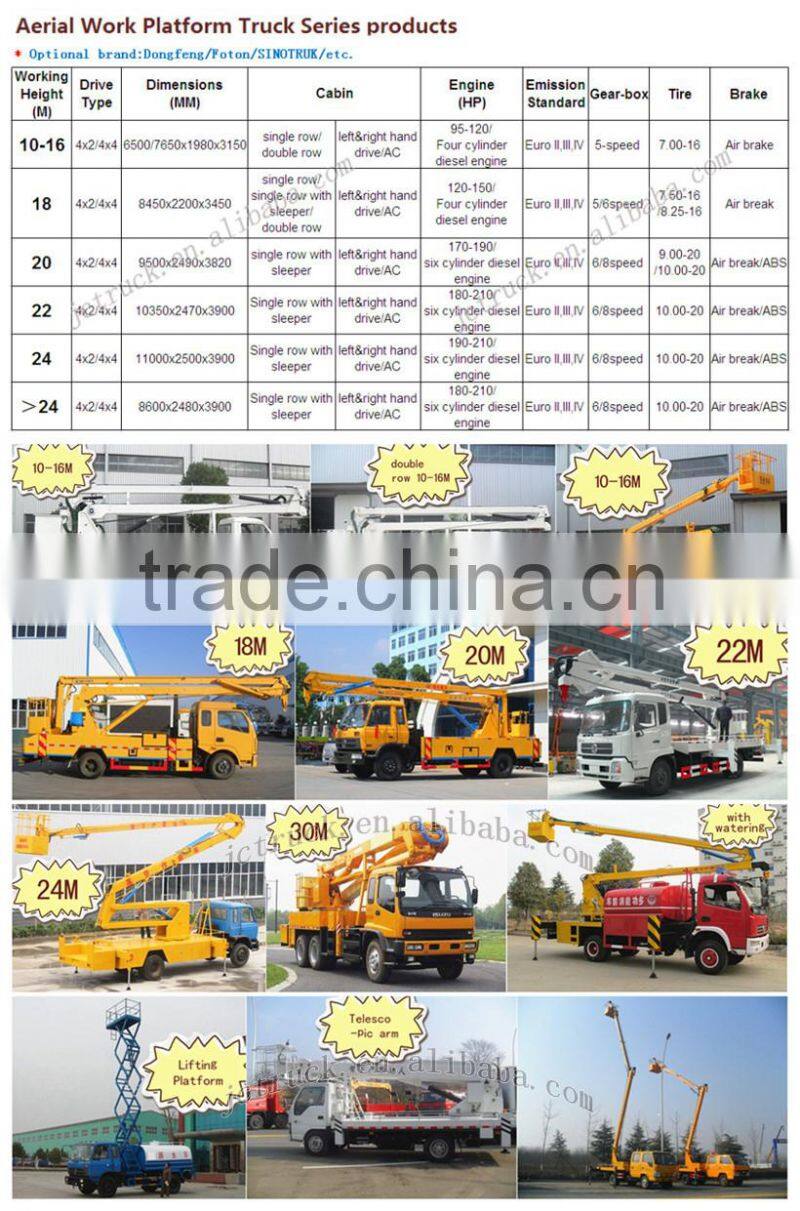

What is the specification of our aerial work platform truck series?
Packing & Shipping, Trade Terms
Shipping
- By sea :/Nude/ Ro-ro ship / Bulk transport / Container packing / SKD / etc;
- Customers specifying freight forwarders or negotiable shipping methods;
- Delivery Time: 10-25 days.
Payment Terms
- Payment: T/T, L/C,Western Union, MoneyGram,PayPal; 30% deposits; 70% balance before delivery,
- MOQ: 1 UNIT
- Warranty: 1 year
- Trade Insurance
Why choose us?
1.We are Alibaba Trade Assurance Gold Supplier.
2.We are a factory manufacturing all kinds of special purpose vehicles,best production capability ,best quality control, best Service .
3.We have long-term cooperation with Shanghai Shipping Company with on time, safe and reliableshipping.
4. Our company can handle a variety of crelated certification of vehicles according to your needs.
5.100% QC inspection Before Shippment.
6.Our products meet OEM/ISO9001/CCC certifications,competitve price.
7. Warranty:1 year or 12 months.
