Help CenterExpanded Metal Mesh Drawing
Related Products
Specifications
expanded metal mesh drawingDo customer made orders
Thickness:0.4-8mm
Strand Width:0.5-5mm
Opening width:2.5-50mm

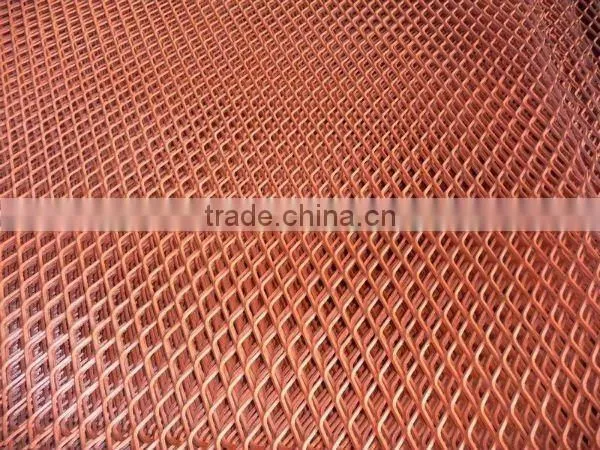

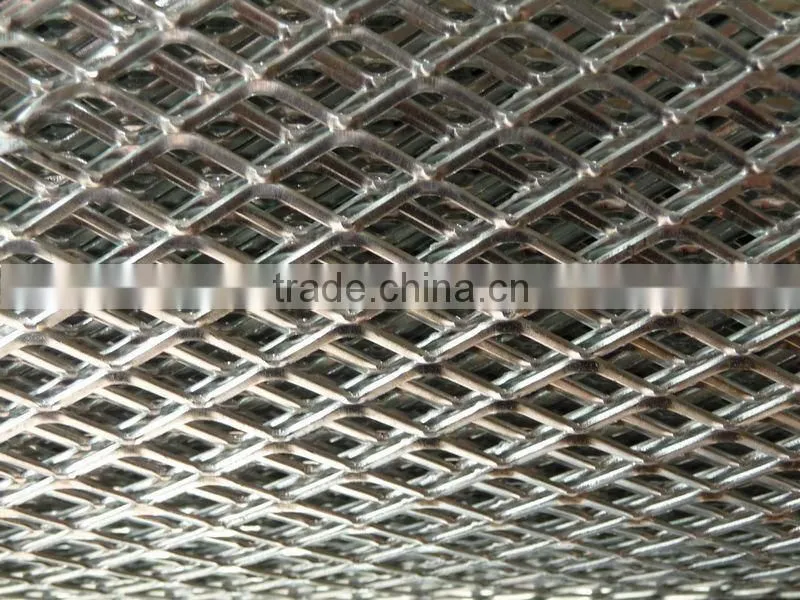

expanded metal mesh drawing
Materials: Steel Plate, Aluminum Plate, Stainless Steel Plate, Titanium Plate, Alum-Platinum Plate, Lead Plate, Nickel Plate, etc.
Opening shape: rhombus,hexagon, square, round, triangle and scale-like opening,etc.
Use: Widely used in the agriculture, construction, medicine, filtering, paper-making, handicraft -making etc.

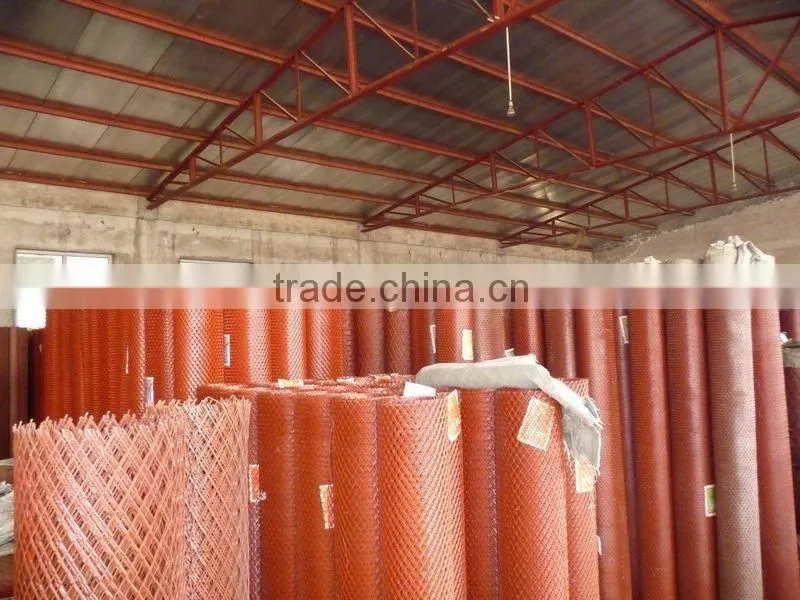

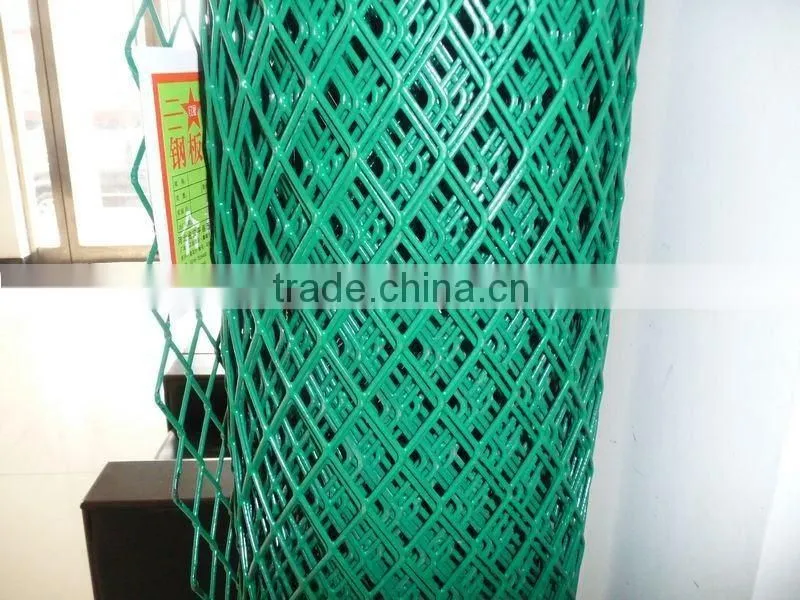

We can supply expanded metal mesh in rolls or sheets of different sizes.
Sheet Thickness (mm) |
SWD (mm) |
LWD (mm) |
Stem (mm) |
Width of the sheet (m) |
Length of the sheet (m) |
Weight (kg/m2) |
0.5 |
2.5 |
4.5 |
0.5 |
0.5 |
1 |
1.8 |
0.5 |
10 |
25 |
0.5 |
0.6 |
2 |
0.73 |
0.6 |
10 |
25 |
1 |
0.6 |
2 |
1 |
0.8 |
10 |
25 |
1 |
0.6 |
2 |
1.25 |
1 |
10 |
25 |
1.1 |
0.6 |
2 |
1.77 |
1 |
15 |
40 |
1.5 |
2 |
4 |
1.85 |
1.2 |
10 |
25 |
1.1 |
2 |
4 |
2.21 |
1.2 |
15 |
40 |
1.5 |
2 |
4 |
2.3 |
1.5 |
15 |
40 |
1.5 |
1.8 |
4 |
2.77 |
1.5 |
23 |
60 |
2.6 |
2 |
3.6 |
2.77 |
2 |
18 |
50 |
2.1 |
2 |
4 |
3.69 |
2 |
22 |
60 |
2.6 |
2 |
4 |
3.69 |
3 |
40 |
80 |
3.8 |
2 |
4 |
5.00 |
4 |
50 |
100 |
4 |
2 |
2 |
11.15 |
4.5 |
50 |
100 |
5 |
2 |
2.7 |
11.15 |
5 |
50 |
100 |
5 |
1.4 |
2.6 |
12.39 |
6 |
50 |
100 |
6 |
2 |
2.5 |
17.35 |
8 |
50 |
100 |
8 |
2 |
2.1 |
28.26 |
The mesh can be also made according to your own detailed specifications. | ||||||
