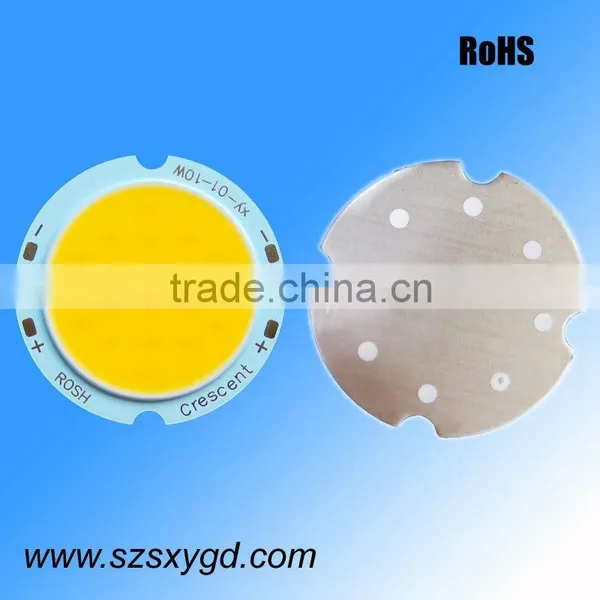

10W High Power LED/COB LED/Chip On Board LED

Specifications

1) Epistar chip
2) RoHS Certifacate
3) 50,000H operating life
4) 3 years warranty

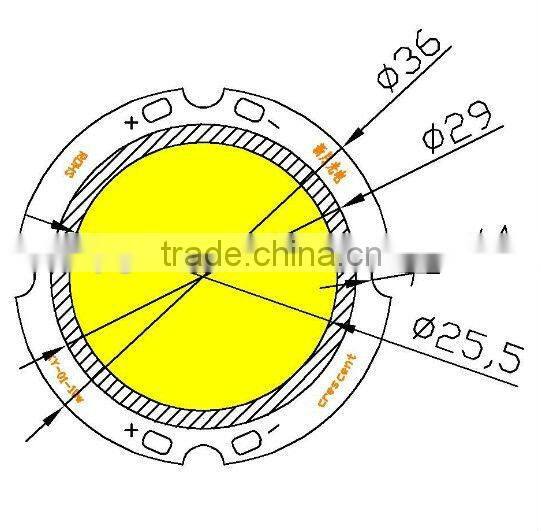

1.Dimensions of 10W High Power LED Emitter/Light Source from Shenzhen Crescent Optoelectronic Co.,Ltd



2.Specifications of 10W High Power LED Emitter/Light Source from Shenzhen Crescent Optoelectronic Co.,Ltd



Part No.	Emitting Color	Forward Current (mA)	Power Dissipation (W)	Wavelength(nm) CCT(K)	Driver Voltage (V)	Luminous Flux (Lm)
XY-C10QWCJ-B	White	350	11.2	2500-10000	32-34	700-800
XY-C10BRFJ-B	Red	350	7.7	615-630	22-24	400-450
XY-C10BYFJ-B	Yellow	350	7.7	585-595	22-24	400-450
XY-C10OBJ-B	Blue	350	11.2	460-470	32-34	150-200
XY-C10OGFJ-B	Green	350	11.2	515-530	32-34	500-600



Absolute Maximum Ratings At Ta=25°C



Parameter	Symbol	Ratings	Units
Power Dissipation	PD	11.2	W
Continuous Forward Current	IF	350	mA
Peak Forward Current	IF(Peak)	700	mA
LED Junction Temperature	TJ	125	°C
Reverse Voltage	VR	50	V
Operating Temperature Range	TOPR	-30°C To +60°C
Storage Temperature Range	TSTG	-30°C To +60°C
Manual Soldering Temperature	TSOL	350°C± 20°C For 3 Seconds
Soldering on a heat plate	TSOL	190°C± 10°C For 20Seconds
ESD Sensitivity	ESD	2000V HBM



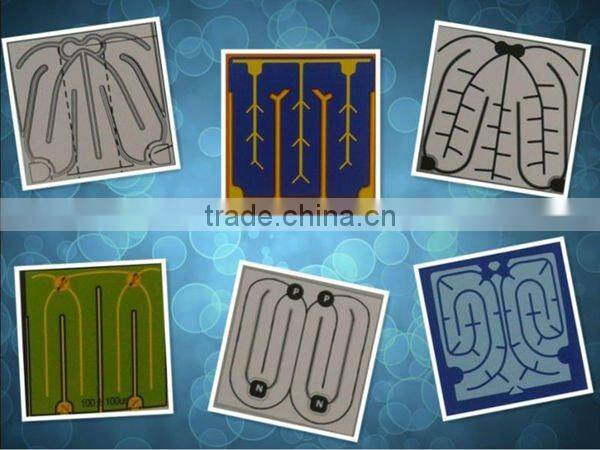

 3.High Quality Chips (Optional) of 10W High Power LED Emitter/Light Source from Shenzhen Crescent Optoelectronic Co.,Ltd

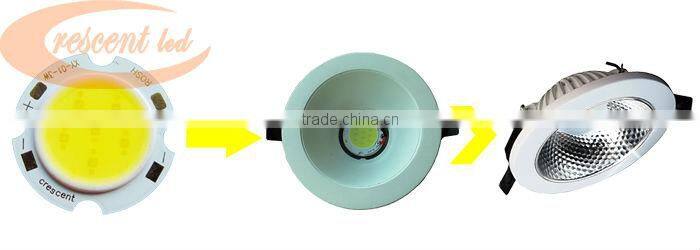

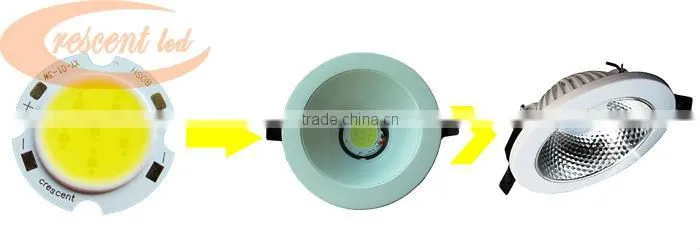

4.Applications  of 10W High Power LED Emitter/Light Source from Shenzhen Crescent Optoelectronic Co.,Ltd

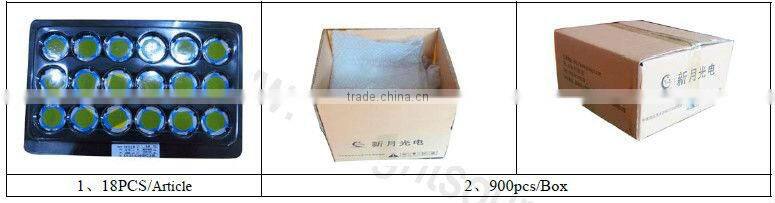

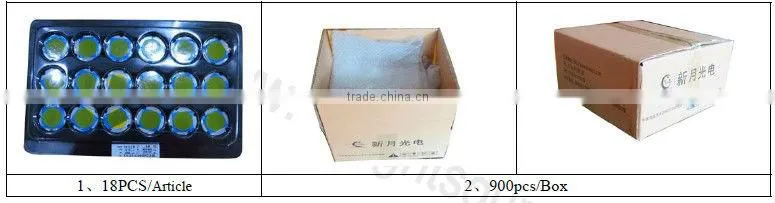

5. Package  of 10W High Power LED Emitter/Light Source from Shenzhen Crescent Optoelectronic Co.,Ltd
