Home > Lights & Lighting > LED Encapsulation Series > COB LED > 5W High Power LED Emitter / COB LED / Chip On Board LED

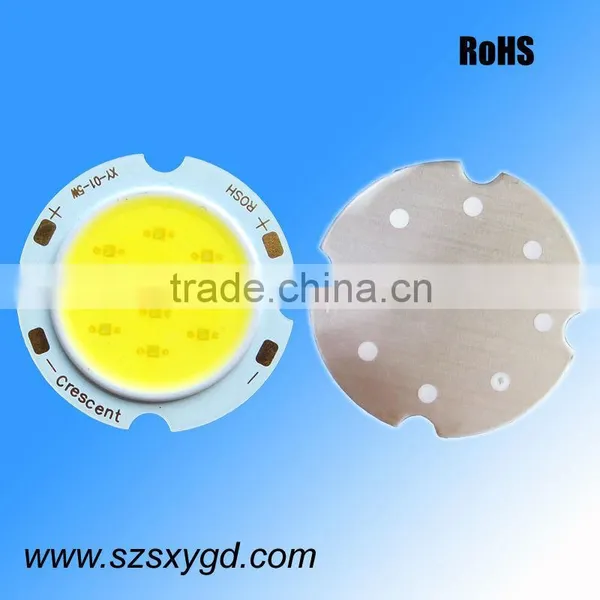

5W High Power LED Emitter / COB LED / Chip On Board LED
Negotiable
MOQ: 500 Pieces (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Model Number:
XY-C05QWCJ-B
Emitting Color:
Other, White
Luminous Flux(lm):
300-350
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
30W High Power LED/COB LED/LED Emitter/High BrightnessNegotiableMOQ: 500 Pieces -
10W High Power LED/COB LED/Energy Saving LED From Shenzhen CrescentNegotiableMOQ: 500 Pieces
-
5W High Power LED/COB LED/Chip On Board LEDUS$ 0.31 - 0.5MOQ: 500 Pieces
-
3W High Power LED Epistar Chip COB Made in P.R.CNegotiableMOQ: 500 Pieces
-
Shenzhn Crescent 30W High Power LED COB Warm White 2800-3500K RoHS CompliantNegotiableMOQ: 500 Pieces
Model Number
XY-C05QWCJ-B
Emitting Color
Other, White
Luminous Flux(lm)
300-350
Optical Attenuation(%)
0.2
Power
5W
Power Dissipation
6.3
Color Rendering Index(Ra)
75
Color Temperature
2,500-10,000K
Operating Temperature(℃)
-35, +65
Storage Temperature(℃)
-35, +80
Place of Origin
Guangdong, China
Brand Name
Crescent
Specifications
1) Epistar chip2) RoHS compliant and Pb free
3) 50,000H operating life
4) 3 years warranty

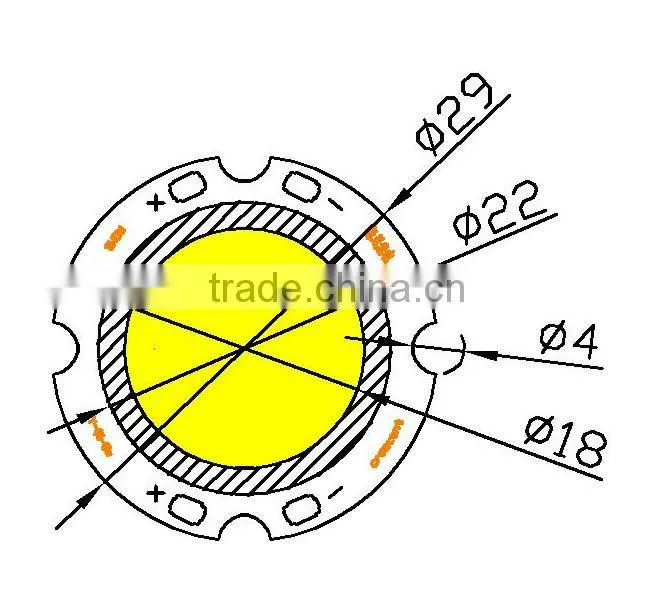

1.Dimensions of 5W High Power LED Emitter/Light Source from Shenzhen Crescent Optoelectronic Co.,Ltd
2.Specifications of 5W High Power LED Emitter/Light Source from Shenzhen Crescent Optoelectronic Co.,Ltd
| Part No. | Emitting Color | Forward Current (mA) |
Power Dissipation (W) |
Wavelength(nm) CCT(K) |
Driver Voltage (V) |
Luminous Flux (Lm) |
| XY-C05QWCJ-B | White | 350 | 6.3 | 2500-10000 | 16-18 | 300-350 |
| XY-C05BRFJ-B | Red | 350 | 3.5 | 615-630 | 10-12 | 200-250 |
| XY-C05BYFJ-B | Yellow | 350 | 3.5 | 585-595 | 10-12 | 200-250 |
| XY-C05OBJ-B | Blue | 350 | 6.3 | 460-470 | 16-18 | 70-80 |
| XY-C05OGFJ-B | Green | 350 | 6.3 | 515-530 | 16-18 | 250-300 |
Absolute Maximum Ratings At Ta=25°C
| Parameter | Symbol | Ratings | Units |
| Power Dissipation | PD | 5.6 | W |
| Continuous Forward Current | IF | 350 | mA |
| Peak Forward Current | IF(Peak) | 700 | mA |
| LED Junction Temperature | TJ | 125 | °C |
| Reverse Voltage | VR | 25 | V |
| Operating Temperature Range |
TOPR | -30°C To +60°C | |
| Storage Temperature Range |
TSTG | -30°C To +60°C | |
| Manual Soldering Temperature |
TSOL | 350°C± 20°C For 3 Seconds |
|
| Soldering on a heat plate | TSOL | 190°C± 10°C For 20Seconds |
|
| ESD Sensitivity | ESD | 2000V HBM | |
3.High Quality Chips (Optional) of 5W High Power LED Emitter/Light Source from Shenzhen Crescent Optoelectronic Co.,Ltd
4.Applications of 5W High Power LED Emitter/Light Source from Shenzhen Crescent Optoelectronic Co.,Ltd
5. Package of 5W High Power LED Emitter/Light Source from Shenzhen Crescent Optoelectronic Co.,Ltd
6. Shenzhen Crescent Optoelectronic Co.,Ltd
