Multi Roller Straightening Level Machine

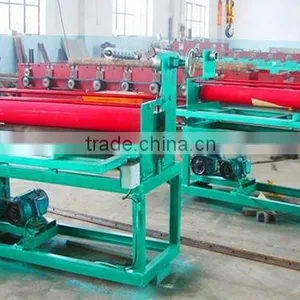

Multi Roller Straightening Level Machine thumbnail-1
Multi Roller Straightening Level Machine photo-1
US$ 18,565 - 55,695 MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
Hebei, China
Brand Name:
HUATONG
Model Number:
HT leveling machine
Contact Supplier Request Quote Chat Now
Nanpi Huatong Roll Forming Machinery Manufacturing Factory
Payment & Shipping
Payment Methods:
Port of Shipment:
XinGang port TianJin China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Hebei, China
Brand Name HUATONG
Model Number HT leveling machine

Specifications

1.HT leveling machine
2.Speed: 0-9m/min
3.Color: blue etc
4:Certificate: ISO9001:2000
5.Control by PLC

HT high precision steel sheet leveling machine



NO.

Item

Parameter

1

Thickness of middle plate

60mm

2

Shaft

15

3

Diameter of shaft (solid shaft)

105mm

4

Material of shaft (solid shaft)

(high grade) 45# Steel, quenched and tempered treatment,hard chromize coated

5

Drive type of roll forming machine

drive by chain

6

Chain

25.4 mm (high grade)

7

Bearing

6210 (high grade)

8

Reducer

6# cycloid reducer (high grade)

9

Power of main motor

7.5KW

10

Voltage

380V/50Hz/3phase

11

Line speed

about 0-9 m/min



12

Feeding width

0-1250mm

13

Suitable coil thickness

Max thickness for steel coil is 3.0mm

14

Appearance size of main machine

1.5m (length)*1.2m (width) *1.2m (height)

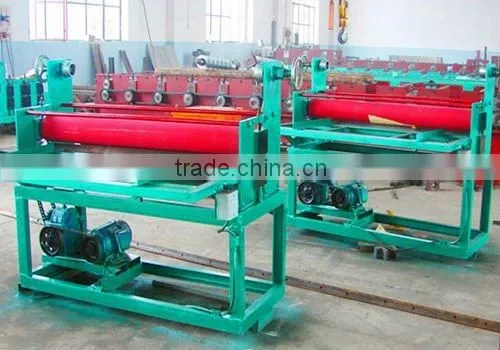

Picture of machine





Multi roller straightening Level Machine







Certification of our company



Multi roller straightening Level Machine







Note:We can customize the design and fabrication on the particular type of

machine according to the request of custmer.
