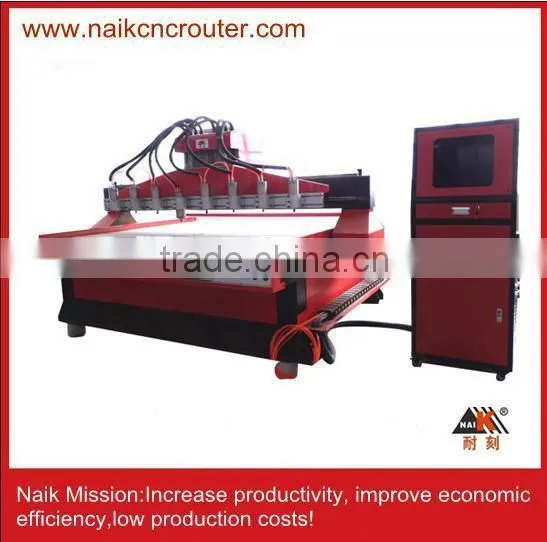

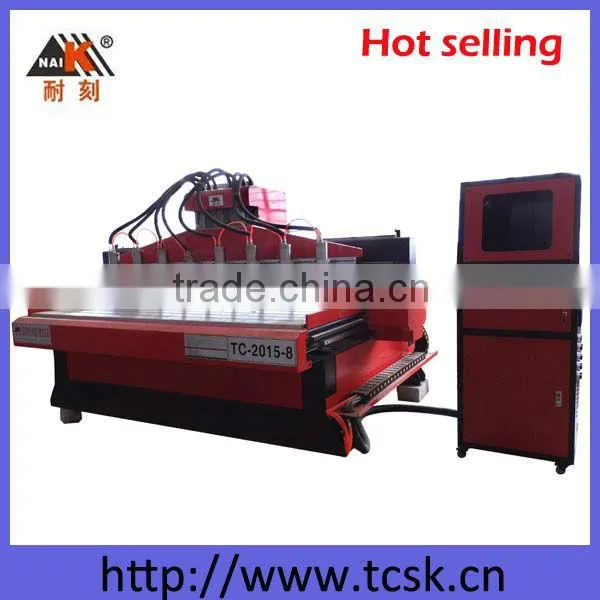

8-Head CNC Router Machine for Rosewood Furniture 2015

8-Head CNC Router Machine for Rosewood Furniture 2015 thumbnail-1
8-Head CNC Router Machine for Rosewood Furniture 2015 photo-1
US$ 5,000 - 12,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
CNC or Not:
CNC
Place of Origin:
Guangdong, China
Contact Supplier Request Quote Chat Now
Shenzhen Tiancheng Xin Li CNC Equipment Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
CNC or Not CNC
Place of Origin Guangdong, China
Brand Name NAIK
Model Number 5STC-2015-8
Voltage 110/220/380V 50±10HZ
Power(W) 1.5kw
Dimension(L*W*H) 2000*1500*180mm
Weight 2700KG
Certification CE,FDA,ISO9001
Warranty One year
After-sales Service Provided Engineers available to service machinery overseas

8-Head CNC Router for Rosewood Furniture



Product Description

1. T-gantry, with high precision linear square guide rails and double nuts ball screw for transmission.

2. Cutting size: 2000*1500 mm.

3. Control system: NcStudio control system, easy to learn and convenient to use.

4. Color is optional, vacuum table and dust collector can be added as your demand.

5. Strong tubular steel main body to ensure the stability while working at high speed.

6. 8 heads enhance working efficiency.

7. Each spindle is equipped with a Variable Frequency Converter.



Application Materials

Aluminum sheet, Copper sheet, Galvanized steel sheet, Plastic Plate, PVC sheet, Artificial stone, Marble, Granite, Foam, Styrofoam, EPS Foam, Wood, MDF, Solid wood, Hardwood, Ceramic Tile, Tombstone, milestone, Terrazzo, Limestone, Sandstone, Travertine, Quartzite, Slate, Grindstone, Jade, Crystal, Plexiglass etc.



Application Industries

Suitable for Furniture Industry, Moulding Industry, Craft Industry, Stone processing factories, Advertising Industry etc.



 Guarantee & After-sales service:

 Guarantee for one year

 24 hour technical support by email or calling

 User friendly English manual and Video CD for machine using and maintenance



8-Head CNC router machine for rosewood furniture 2015




Specification:



Model No.

5STC-2015-8

Table Size

2100mm×2100mm

Effective Working Area

2000mm×1500mm

Z Axis Travelling

180mm

Feeding Height

200mm

Body Frame/Structure

Tubular Steel

Table

Aluminum, T-slot

X,Y Transmission

Germany rack and pinion

Z Transmission

Taiwan HIWIN 2510 dual-nut ball screw

Rail Configuration

Taiwan HIWIN 25 Linear square guide rails

Positioning Accuracy

±0.15/300mm

Spindle Rotating Speed

0-24000rpm

Spindle power

2.2kw (eight)

Y Axis Drive Motor

Shenzhen Leisai Stepper Motor(Double Motor)

X,Z Axis Drive Motor

Shenzhen Leisai Stepper Motor

Movement Control

NCSTUDIO Control System

Carving Instruction

G code*,U00*,mmg*,nc

Resolution

0.00625/pulse

Collet

3.175mm,4mm,6mm,8mm,10mm,12.7mm

Cooling system

Water pump

Power

380V,50HZ±10(Internal Switch Power)

Movement Pattern

Gantry Moving



Product details with pictures:

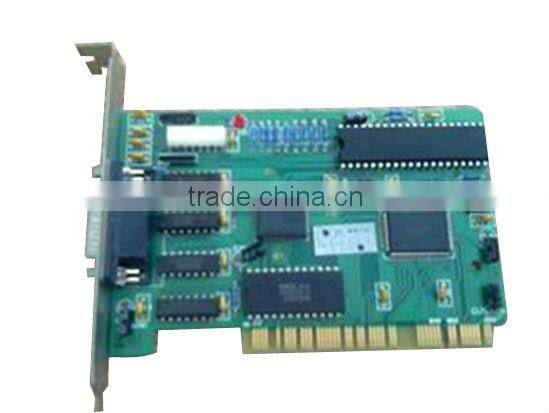

Motion Control System
8-Head CNC router machine for rosewood furniture 2015 The PCIMC control card is designed by Weihong technology company of Shanghai, specialized for NC STUDIO Motion Control System. The card will be inserted into the PCI card slot of the computer, and the operation of the CNC engraver is controled by the control card. We have PCIMC-3D/6B/ 6A etc. for optional
Driving Motor
8-Head CNC router machine for rosewood furniture 2015

The Driving Motor is the executive component of the automatic control system, it works with the simple push of a button. The motor we use for our CNC engraver can be steping motor/ Servo motor, and the brand is optional.
AC Servo motor is more popular for its advantages on performance and accuracy, but more costly. The brand can be Schneider/ Yaskawa etc. With different prices.

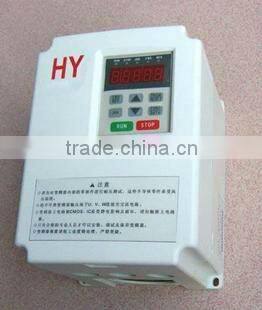

Frequency Converter
8-Head CNC router machine for rosewood furniture 2015 The frequency converter is an equipment to control the AC motor by adjusting the frequency of the motor power. So it can offer actual voltage to the motor as per the practical need of motor, to make sure of energy conservation and speed regulation. Besides, the converter can protect the motor from over current, over voltage, overloaded, etc. Each spindle motor is connected with a independent frequency converter, it's more safe and stable.

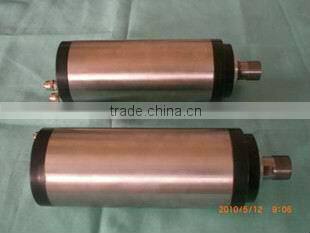

Main Spindle
8-Head CNC router machine for rosewood furniture 2015

There are two kinds of spindle: Water cooling and Air cooling spindles. And with different
power options: 1.5KW/ 2.2KW/ 3.0KW/ 4.5KW/5.5KW/6KW/7.5KW etc. The output voltage and frequency can be adjusted timely by a frequency converter. Advantage: work with high frequency, stable, low noise, fast heat dissipation, and long operating life.
Guide rail and sliding block
8-Head CNC router machine for rosewood furniture 2015

We use Linear square guide rails offered by HIWIN of Taiwan. The coefficient of rolling friction
is small and positioning accuracy is much higher than sliding friction. The accuracy can be at μm level. It can work with high speed and low power dissipation, and can easily be assembled and replaced.
Dual screw-nut anti-gap rod
8-Head CNC router machine for rosewood furniture 2015 The ball screw is an element to change the movements of the bearing from sliding to rolling. There are many roll balls between the screw shaft and the screw nut, and the balls rolling fast when the machine working. For the coefficient of rolling friction is smaller, the positioning accuracy is much higher.


 All the specifications can be customized as requested!

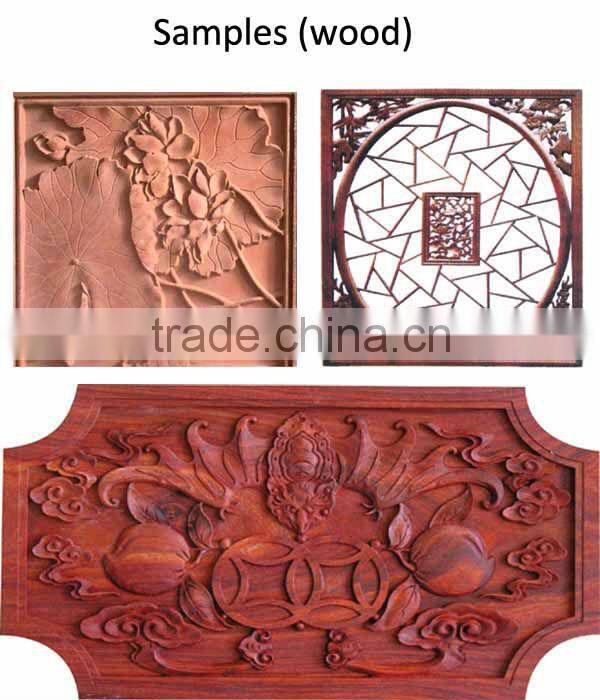

 Pictures of sample:

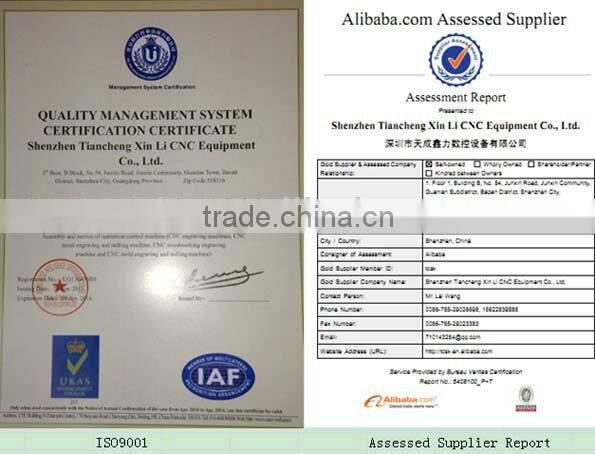

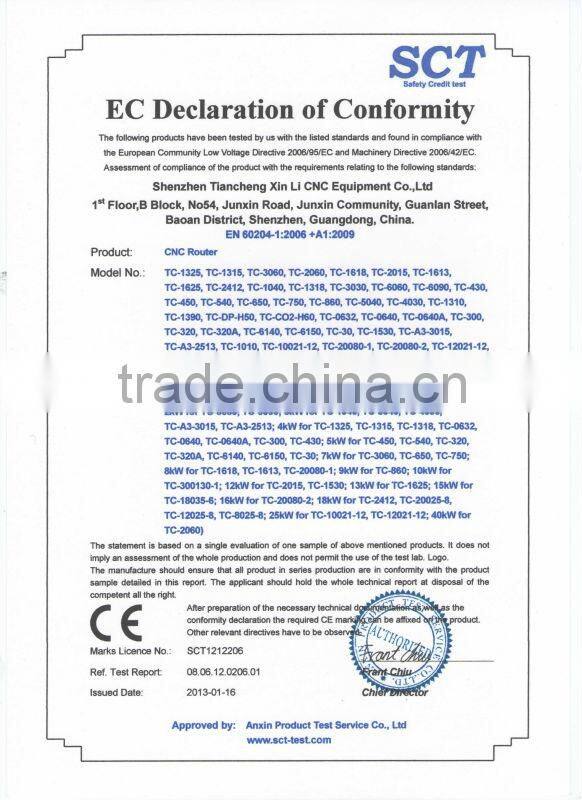

Company Certificates

8-Head CNC router machine for rosewood furniture 2015

 8-Head CNC router machine for rosewood furniture 2015

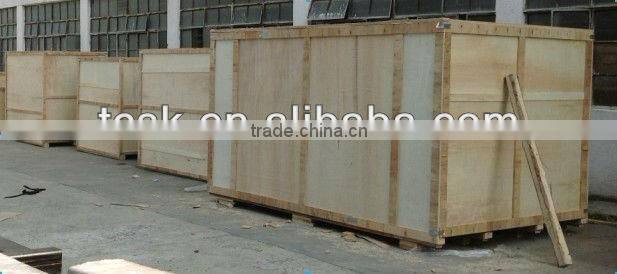

Packing

8-Head CNC router machine for rosewood furniture 2015



Pictures of our company

8-Head CNC router machine for rosewood furniture 20158-Head CNC router machine for rosewood furniture 2015



We are professional manufacturer of all kinds of CNC engraving machines, suitable for various of materials, such as: wood, stone, jade, acrylic, metal, ceramics, etc.

And we offer all kinds of CNC parts.

To know more about our products, please feel free to contact us !
