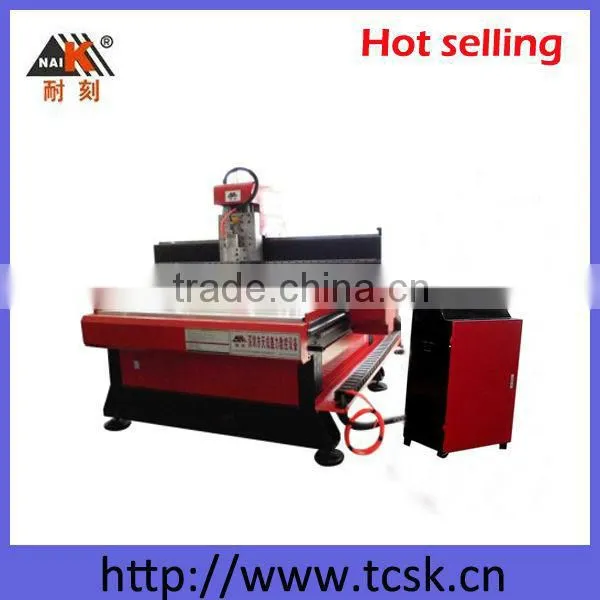

3 Axis CNC Router
Product Description
1. T - gantry, T-support, with liner guideway and rack transmission.
2. Cutting size: 1300*2500 mm.
3. Compatible Software: Type 3 software, Artcut software, Artcam software.
4. Color is optional, Rotary axis, vacuum table and dust collector can be added as your demand.
Application Materials
Foam, Styrofoam, EPS Foam, Wood, MDF, Solid wood, Hardwood, Artificial stone, Marble, Granite, Ceramic Tile, Tombstone, milestone, Terrazzo, Limestone, Sandstone, Travertine, Quartzite, Slate, grindstone ,Jade, crystal, plexiglass, aluminum composite panel, aluminum block, copper and so on.
Application Industries
Suitable for Furniture Industry, Mould Industry, Craft Industry, Stone processing factories, Furnace (fireplace) making, Tombstone processing industries, Advertisement industries for Stone art craft works, Home & Outdoor Product making industries, Architectural decoration industries,etc.
Technical parameter
Model No |
TC-1325 |
Table Size |
1380mm×2900mm |
Effective Working Area |
1300mm×2500mm |
Z Axis Travelling |
180mm |
Feeding Height |
200mm |
Body Frame/Structure |
Steel |
Table Configuration |
VAC-sorb table |
Adsorption Method |
Vacuum Pump |
X,Y Transmission Configuration |
Rack Gear Dual Z Axis(Independent Movement Control) |
Z Transmission Configuration |
Screw (Taiwan PMI 25 Screw) |
Rail Configuration |
20 Square Guide (Taiwan Hiwin) |
Positioning Accuracy |
±0.15/300mm |
Spindle Rotating Speed |
0-24000(rmp/min) |
Y Axis Motor |
Dorna Servo Motor(Double Motor) |
X,Y,Z Axis Motor |
Dorna Servo Motor |
Movement Control |
Shanghai NCSTUDIO Control System(6B) |
Carving Instruction |
G code*,U00*,mmg*,nc |
Resolution |
0.00625/pulse |
Collet |
3.175mm,4mm,6mm,8mm,10mm,12.7mm |
Spindle Power |
3.0kw water cooling motor(4.5,5.5KW for your choice) |
Power |
380v50HZ±10(Internal Switch Power) |
Movement Pattern |
Gantry Moving |
Samples of CNC Machine
Package Details
|
Wooden Box With Accessories inside
|
1),Electric Box(1pc) or computer control cabinet
|
|
|
(1),Tool box(1 set):
|
a,NCStudio Control card(1pc); b,Data cable(1pc); c,Disc(1pc); d,Power cable(1pc); e, Knife Tool(1set); f,Upper blade wrench(1 set); g,T-clip(1 set); h,Allen wrench(1 set); I,toolholder; j,Random Software Data sheet(1pc); k,Pump(2pcs); l,packing list(1pc)
|
|
Qty/Ctn |
1Set/ctn |
|
Cartoon Size |
Based on the products |
|
Shipping Terms
1,EXW
2,FOB SZ
3,CIF+Destination port
4,If you need us to book shipping cargo or not and etc,pls notice us,we are more pleased to do so.
Payment terms
1,T/T 30%T/T in advance against the order confirmed and pay the balance 70% against goods ready.
2,Western Union Total amount should be below than 5000 USD,and the bank handling fee should be responsible for you.
3,L/C We would like to talk details with you if you really need L/C payment terms.
Other payment terms,pls mention us.
Technical support
1,Once our business term is down,buyer can send your technical staff to learn related technology of CNC Router in our factory for free.
2,Or we can send our engineer to buyers’ country for technical support,but the buyer should be responsible for the return ticket for them.
What can we do?
1),For materials:
Wood(Timber ,Hard wood;plywood;whitewood;red wood,soft wood,MDF and etc) CNC Router Engraving/Carving/Cutting Machine;
Plastic(PMMA,,PVC Sheet,ABS Sheet;KT Sheet;UV,PU,;Aluminum Composite Panel and etc)CNC Router Engraving/Carving/Cutting Machine;
Stone(Tomstone,Gemstone,Granite,Marble and etc)CNC Router Engraving/Cutting/Carving Machine;
Acrylic CNC Router Engraving/Carving/Cutting Machine;
Metal(Iron,Stainless,Aluminum,Copper and etc)CNC Router Engraving/Cutting/Carving Machine;
2)For quantities of Spindle:
Single Spindle CNC Router,2 Spindles CNC Router;3,4...12,15 Spindles and etc Multi-spinldes CNC Router Engraving/Carving/Cutting Machinery;
3)For Axies:
2 Axis CNC Machine,3 Axis CNC Router,4 Axis CNC Engraving Machine,5 Axis CNC Router,6 Axis CNC Router Machine;
4)For Spindle Power:
There are 2.0KW/3.0KW/4.5KW/5.5KW/7.5KW/9.0KW CNC Router Machine;
5)Others,
Plane&Cylinder CNC Router Machine;ATC CNC Router;Automatic Tool Changed CNC Machine;Router Axis CNC Machine;Dual Z Axis CNC Machine;
Heavy-duty CNC Router,Low cost CNC Machine,Enconomic CNC Router;Vac-sorb CNC Engraving Machine;Ncstudio Control System CNC Router Machine;
CNC Laser Machine;CNC Plasma Cutter ;CNC Laser Cutting Machine ,MINI CNC Router and etc.
