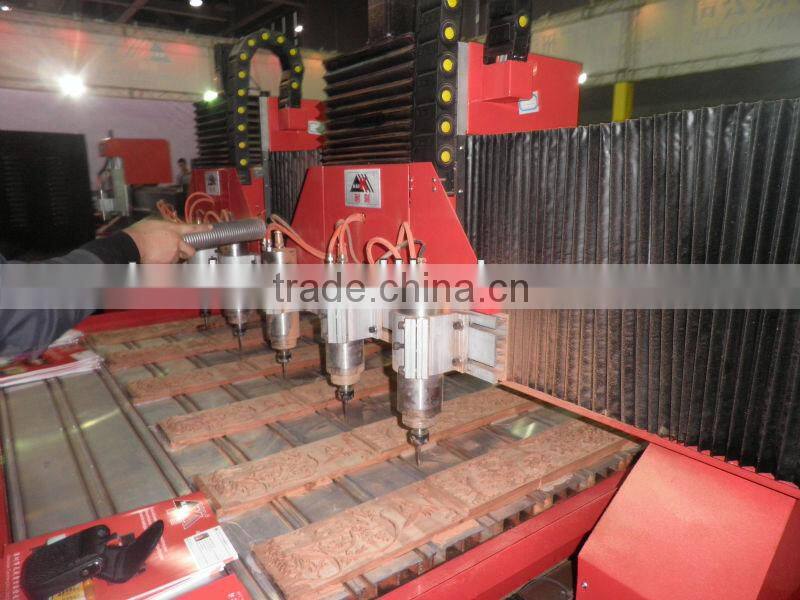

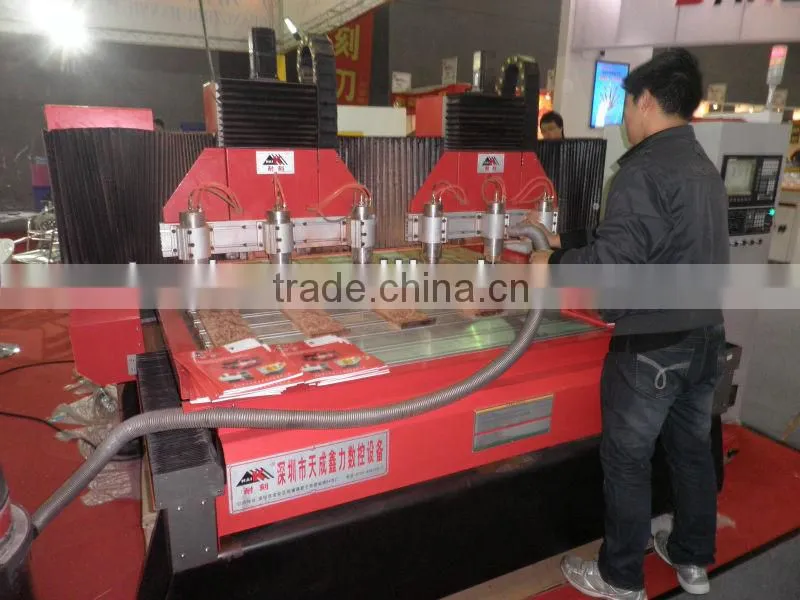

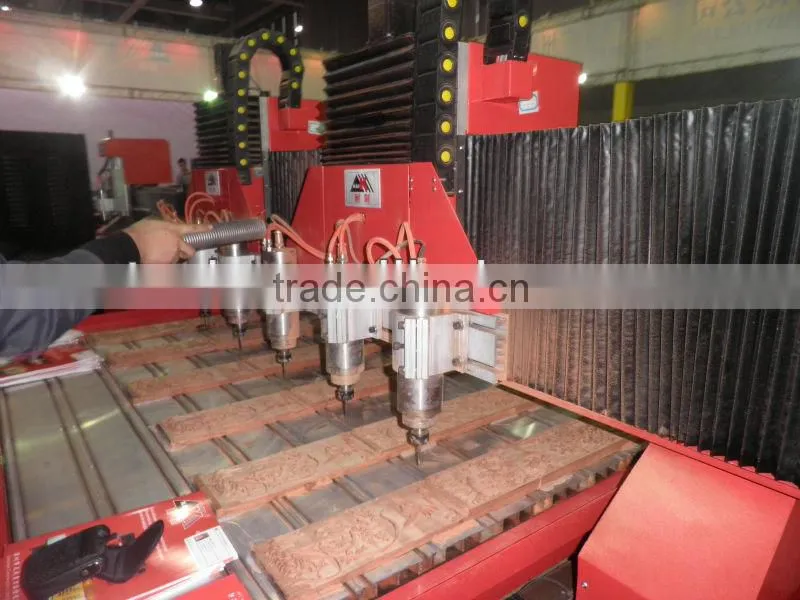

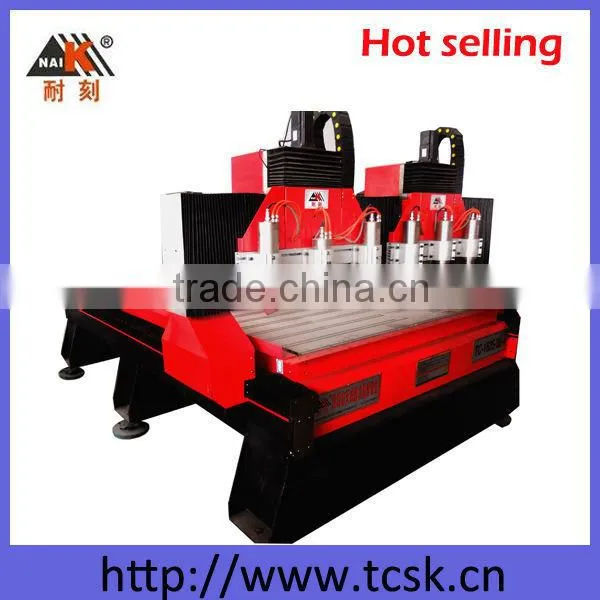

Servo Motor Driven Multi Spindles Woodworking CNC Router
Product features:
- With 1600mm* 2500mm engraving range;
- With 6 independent spindles, can enhance the efficiency of engraving work;
- Each spindle is cotrolled by an independent frequency converter, can ajust the motor power timely and accurately, it's more power-saving and safe.
- With whole casting iron frame, to ensure the structure stability, low inertia and no distortion;
- HIWIN linear guide and sliding block, Germany made dual screw-nut anti-gap rod, with high accuracy, low noise, and long life;
- Equipped with high-speed spindle motor, high-performance division drive to ensure the long time and stable working;
- Adopted with advanced controlled system, with simple operating software, it’s easy to learn; And the operator can check the real-time trajectory, plus or minus Z-axis depth in real-time, and adjust the motor speed conveniently;
- Powerful compatibility for most of software such as: type3, Artcam, Proe, Wentai a variety of CAD / CAM;
- Humanized design, convenient for removing and installing;
- Can meet not only the high sensitivity, high accuracy, high speed small sculpture, but also can adapt to large acrylic cutting, three-dimensional billboard production, wood carving.
Pictures of sample:
Samples of embossments
| Platform Size (mm) | 1700mm* 3100mm | |
| Engraving range (mm) | 1600mm* 2500mm | |
| Structure options | T-shape steel struture | |
| Platform material | Thickened aluminum, optional | |
| Table fixed type | T-clip/ Vacuum absorption optional | |
| X Axis structure | 25mm linear square guide rail of HIWIN & TBI 3120 screw | |
| Y Axis structure | 25mm linear square guide rail of HIWIN & TBI 3120 screw | |
| Z Axis structure | 25mm dual screw-nut anti-gap rod | |
| Z axis traveling height(mm) | 180mm | |
| Working Voltage | 380V 50Hz | |
| Spindle power (KW) | 2.2KW, optional | |
| Frequency converter | BEST 6 | |
| Spindle speed | 0-24000 (r/ min) | |
| Max Speed without material | 0-20000 mm/ min | |
| Max working speed | 0-15000 mm/ min | |
| X Axis Drive motor | Germany Schneider Servo motor, optional | |
| Y Axis Drive motor | Germany Schneider Servo motor, optional | |
| Z Axis Drive motor | Germany Schneider Servo motor, optional | |
| Resolution | 0.00625/ pluse | |
| Diameter of cutting tools (mm) | 3.175/ 4.0/ 6.0/ 8.0/ 10.0/ 12.7mm optional | |
| ATC | Yes | |
| Control system option | WeiHong 6A Motion Control System of Shanghai | |
| Code formats | G code, U00, mmg, nc | |
| Cooling system | Water cooling/ Air cooling, optional | |
| Motion Control System | |||
|
The PCIMC control card is designed by Weihong technology company of Shanghai, specialized for NC STUDIO Motion Control System. The card will be inserted into the PCI card slot of the computer, and the operation of the CNC engraver is controled by the control card. We have PCIMC-3D/6B/ 6A , optional | ||
| Driving Motor | |||
|
The Driving Motor is the executive component of the automatic control system, it works with the simple push of a button. The motor we use for our CNC engraver can be steping motor/ Servo motor, and the brand is optional. |
||
| Frequency Converter | |||
|
The frequency converter is an equipment to control the AC motor by adjusting the frequency of the motor power. So it can offer actual voltage to the motor as per the practical need of motor, to make sure of energy conservation and speed regulation. Besides, the converter can protect the motor from over current, over voltage, overloaded, etc. Each spindle motor is connected with a independent frequency converter, it's more safe and timeproof. | ||
| Main Spindle | |||
|
There are two kinds of spindle: Water cooling and Air cooling spindles. And with different |
||
| Guide rail and sliding block | |||
|
We use Linear square guide rails offered by HIWIN of Taiwan. The coefficient of rolling friction |
||
| Dual screw-nut anti-gap rod | |||
|
The ball screw is an element to change the movements of the bearing from sliding to rolling. There are many roll balls between the screw shaft and the screw nut, and the balls rolling fast when the machine working. For the coefficient of rolling friction is smaller, the positioning accuracy is much higher. The accuracy of ball screw is higher than linear guide rail, and we have different brands optional. | ||
All the specifications can be customized as requested!
We are professional manufacturer of all kinds of CNC engraving machines, suitable for various of materials, such as: wood, stone, jade, acrylic, metal, ceramics, etc. Platform material
And we offer all kinds of CNC parts.
To know more about our products, please feel free to contact with us !
