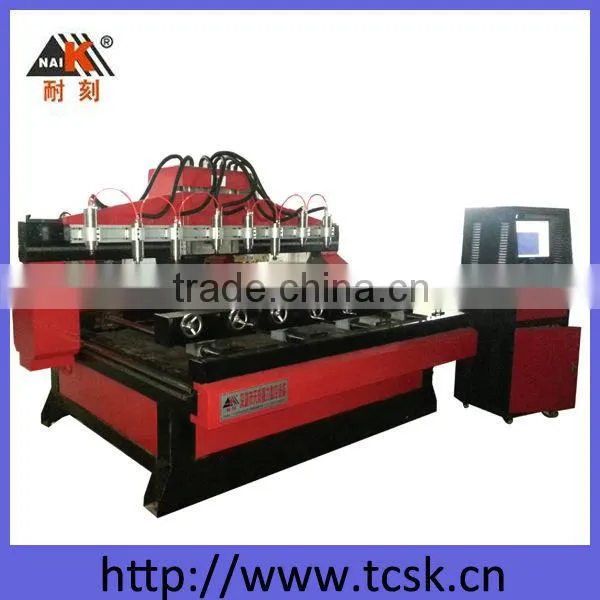

3d Carving/Engraving/Cutting Machine
Product Description
1. Chassis Dynamic, T-support, with liner guideway and rack transmission.
2. Cutting size: 2400*1200mm.
3. Compatible Software: Type 3 software, Artcut software, Artcam software.
4. Color is optional, Rotary axis, vacuum table and dust collector can be added as your demand.
Technical parameter
Model: |
9STC-2412-8 |
Guideway: |
XYZ-axis use liner guideway |
Driving mode : |
XY-axis use rack and Z-axis use Linear Square screw |
XY-axis working area : |
2400*1200mm |

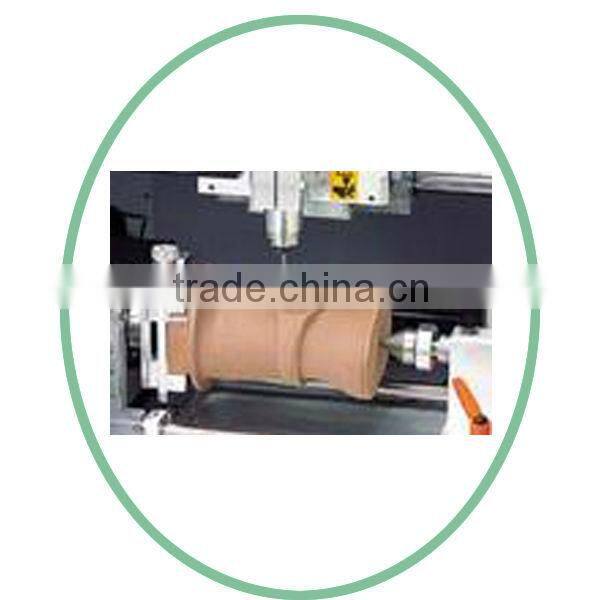

Cylindrical Engraving Size |
Φ300*1200mm |
Table Size |
2400*1400mm |
Z-axis working area: |
450 mm |
Feeding height: |
550 mm |
Spindle Speed: |
0-24000mm/min |
Processing speed : |
30000mm/min |
Mechanical precision: |
±0.1mm/300mm |
Compatible Software: |
Type 3 software , Artcut software , Artcam software |
Spindle Power consumption: |
2.2KW (8pcs) |
Power source: |
AC220/50HZ or 380V/50HZ |
Driver type: |
Stepper motor |
Memory: |
Without or DSP |
Spindle: |
2.2KW variable speed , water-cooled motor |
Blade diameter: |
3.175mm, 4mm, 6mm, 12mm or 12.7mm |
Control system: |
NCSTUDIO or DSP(USB interface) |
Command: |
G code , u00, mmg, plt, HPGL |
Running circumstance temperature: |
0-45degree |
Relative humidity: |
30%-75% |
Products Samples
Shipping Terms
1,EXW
2,FOB SZ
3,CIF+Destination port
4,If you need us to book shipping cargo or not and etc,pls notice us,we are more pleased to do so.
Payment terms
1,T/T 30%T/T in advance against the order confirmed and pay the balance 70% against goods ready.
2,Western Union Total amount should be below than 5000 USD,and the bank handling fee should be responsible for you.
3,L/C We would like to talk details with you if you really need L/C payment terms.
Other payment terms,pls mention us.
Technical support
1,Once our business term is down,buyer can send your technical staff to learn related technology of CNC Router in our factory for free.
2,Or we can send our engineer to buyers’ country for technical support,but the buyer should be responsible for the return ticket for them.
Other special requests,pls mention us.
