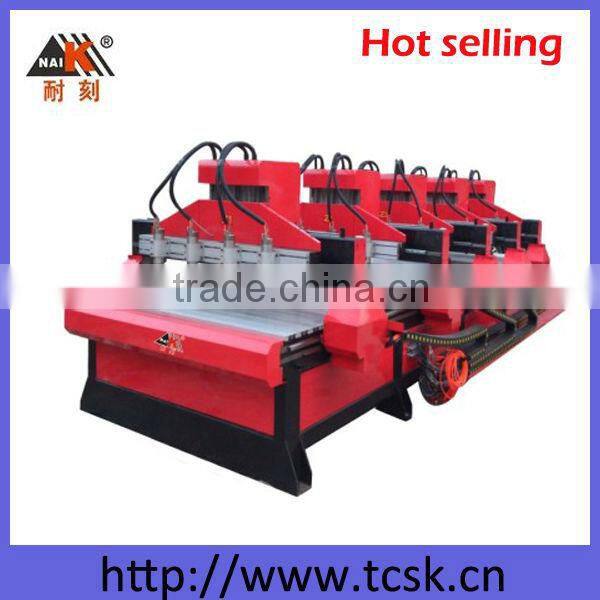

CNC MDF Machine for Sale
Application Materials
Foam, Styrofoam, EPS Foam, Wood, MDF, Solid wood, Hardwood, Artificial stone, Marble, Granite, Ceramic Tile, Tombstone, milestone, Terrazzo, Limestone, Sandstone, Travertine, Quartzite, Slate, grindstone ,Jade, crystal, plexiglass, aluminum composite panel, aluminum block, copper and so on.
Application Industries
Suitable for Furniture Industry, Mould Industry, Craft Industry, Stone processing factories, Furnace (fireplace) making, Tombstone processing industries, Advertisement industries for Stone art craft works, Home & Outdoor Product making industries, Architectural decoration industries,etc.
Advantages
1,Heavy duty machine body, no distortion, high-speed operation processing machine does not shake, the machined surface is smooth, and the tool is difficult to break.
2,Each spindle is equiped with a converter ,which is more powerful, more stable .Consistent pwer and high speed spindle,large cutting area per time,4 bearing motor is not easy to ware.
3,Original Guide rails from Taiwan Hinwin, high accuracy, good rigidity,durability,good sealability of slide and no broken about it.
4,System adopts original PC operating system which is easy to be operated, with high speed and good stability.
5,All motors adopt imported servo motor with high accuracy and fast speed.
6,X,Y,Z axis transimission adopt original screw(Taiwan Hiwin) with high accuracy.
7,X,Y,Z axis adopt software dust cover
8,With 5 gantries,and each gantry moves independently ,which can process 5 different row products.Thus,the effiency of the machine equals to 5sets 4 -spindles -machine.
Specification

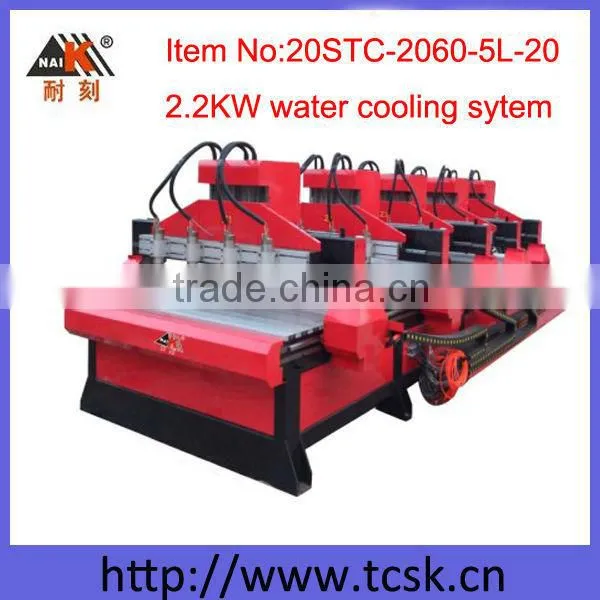

Model No |
20STC-2060-5L-20 |
Table Size |
1700mm×7000mm |
Effective Engraving Size |
1700mm×7000mm |
Z Axis Travelling |
180mm |
Feeding Height |
200mm |
Body Frame/Structure |
T-Steel(Steel structure 8mm Steel Pine) |
Table Material |
Thickness Aluminum |
Portal Side Wall Configuration |
Cast Iron |
Z Axis Movement Hardware Configuration |
Cast Aluminum |
Transmission Configuration |
Rack Gear(Germany Slanting Rack) |
Rail Configuration |
Ball screw transmiss |
Z Axis Screw |
Taiwai PMI 25 Screw C4 Grade,Double nut |
Positioning Accuracy |
±0.15/300mm |
Spindle Rotating Speed |
0-24000(rmp/min) |
Processing Speed |
0-30000mm/min |
X Axis Motor Drive |
Leisai 110(Shenzhen) |
Y Axis Motor Drive |
Leisai110(Shenzhen)(Dual Drive Double Motor) |
Z Axis Motor Drive |
Leisai110(Shenzhen) |
Movement Control |
NCstudio Control System |
Carving Instruction |
G Code*,U00*,mmg*,nc |
Resolution |
0.0025/Pulse |
Collet |
3.175mm,4mm,6mm,8mm, 12.7mm |
Spindle Rotating Power |
2.2KW Bearing Water Cooling Motor(20 pcs) |
Conventor |
Best,Independent conventor 20cs |
Power |
220V/380v50HZ±10(Internal Switch Power) |
Weight |
Appro45000KGS |
Electric Box Configuration |
Computer capinet |
Movement Method |
Gantry Moving |
Shipping Terms
1,EXW
2,FOB SZ
3,CIF+Destination port
4,If you need us to book shipping cargo or not and etc,pls notice us,we are more pleased to do so.
Payment terms
1,T/T 30%T/T in advance against the order confirmed and pay the balance 70% against goods ready.
2,Western Union Total amount should be below than 5000 USD,and the bank handling fee should be responsible for you.
3,L/C We would like to talk details with you if you really need L/C payment terms.
Other payment terms,pls mention us.
Why choose us
1.One year equipment warranty and maintenance for lifetime.
2.Free installation and test before shipping and free training for operators
3.Advice for the solutions best for customers requirements.
4.Free training and sample provided

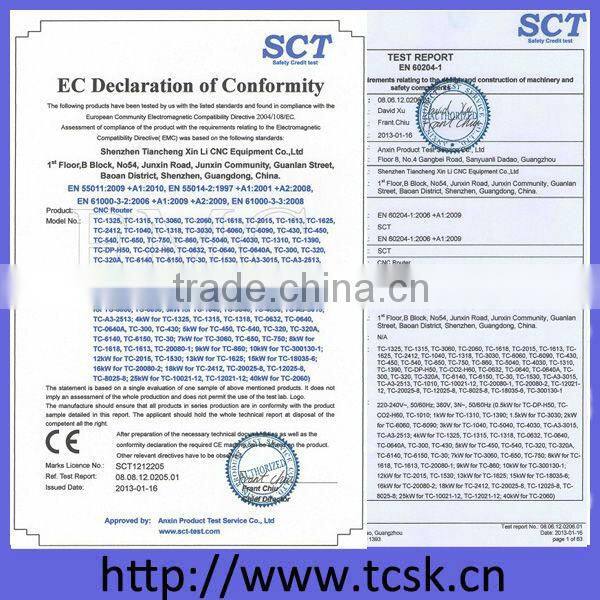

5.Meet CE,FDA,ISO9001 standards
Other special requests,pls mention us.
Packing photo
