Shenzhen naiK 1325 hot-sell wood working cnc router machine with high quality:
Suitable for:
Suitable in the advertisement, acrylic, PVC, PP, electric wood plate, ABS plate, wood etc. non-metal material To do the 3D processing, plane cutting, debossment, engraving and so on.
Feature:
1. Normal frame, no distortion, to ensure the structure stable, low inertia and to distortion during high speed working.
2. Assembled with original Hiwin linear square guide rail and dual-nuts anti-gap rod ball screw, and Ger many made slanting rack, to ensure high accuracy, low noise, and long life.
3. Adopt high speed spindle with constant torque, high-performance drive motor to ensure the long time and stable working.
4. Cpmputer control system with friendly UI, with simple operating software, it is convenient and easy to learn.

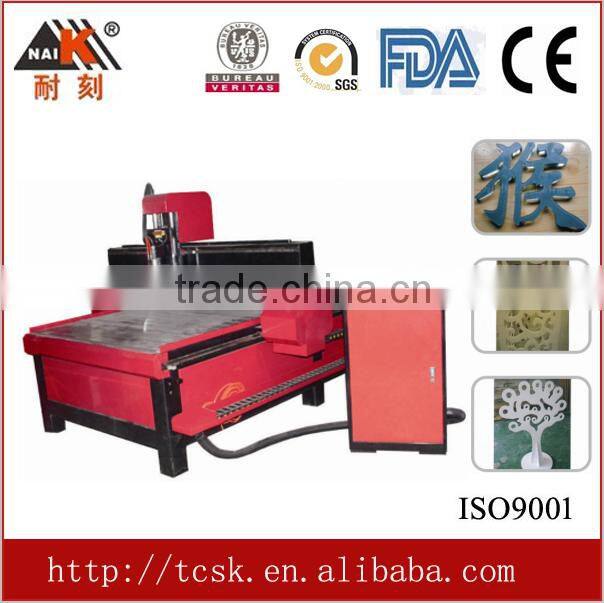

1. picture of Hot-sell wood working cnc router machine
| Specifications option of the machine | ||||||
| Model N | TC-1325C |
|||||
| Platform Size | 1380* 2900 mm | |||||
| Working range | 1300* 2500 mm | |||||
| Z axis travel | 180mm | |||||
| Max height of material | 200mm | |||||
| Machine base | 8mm thick heavy-duty tubular steel frame | |||||
| Z-axis clevis | U-shaped cast aluminum,machined by CNC center | |||||
| Sidewall of Y axis | Cast Iron machined by CNC center | |||||
| Fuselage | 8mm Steel machined by CNC center | |||||
| Sheet metal for X axis Drag Chain | Cast Aluminum machined by CNC center | |||||
| The Beam | 8mm Steel machined by CNC center | |||||
| Frame | 4mm Steel machined by CNC center | |||||
| Sheet metal | 2mm baking Paint | |||||
| Cutting bed | 3mm*5mm(sidewalls)*24mm,Thickened aluminum | |||||
| Fixing method | T-slot for clamp fixture (Vaccum table option) | |||||
| X Y Axis Transmission | Germany Slanting rack | |||||
| Z-axis Transmission | Taiwan HIWIN 2510 ball screw | |||||
| Rail configuration | Taiwan HIWIN 25 square guide rail | |||||
| Positioning accuracy | ±0.15/300 mm | |||||
| Spindle speed | 0-24000 r/min | |||||
| Y Axis dual Drive | Stepper Motor Leadshine 86 | |||||
| X Z Axis Drive motor | Stepper Motor Leadshine 86 | |||||
| Control system | NcStudio Controlling System | |||||
| Code formats | G code, U00, mmg, nc | |||||
| Idle speed | 0-20000 mm/ min | |||||
| working speed | 0-15000 mm/ min | |||||
| Resolution | 0.00625/ pluse | |||||
| Tool diameter | 3.175/ 4.0/ 6.0/ 8.0/ 10.0/ 12.7mm optional | |||||
| Spindle power | 3.0KW (other available) | |||||
| Cooling System | Water Pump | |||||
| Power | 380V50Hz/60Hz (Internal power) | |||||
| Mode of motion | Gantry moving | |||||
Electric Box |
Normal Electric Box | |||||
| Compatible software | CAD,CAM softwares such as MasterCAM/ Type3/ JDPaint/ ArtCAM/ Proe/ WenTai, etc | |||||
| Weight | 1100KG | |||||

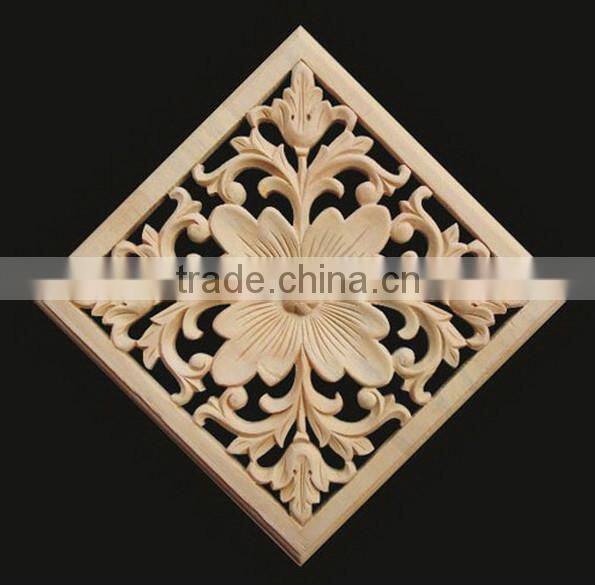

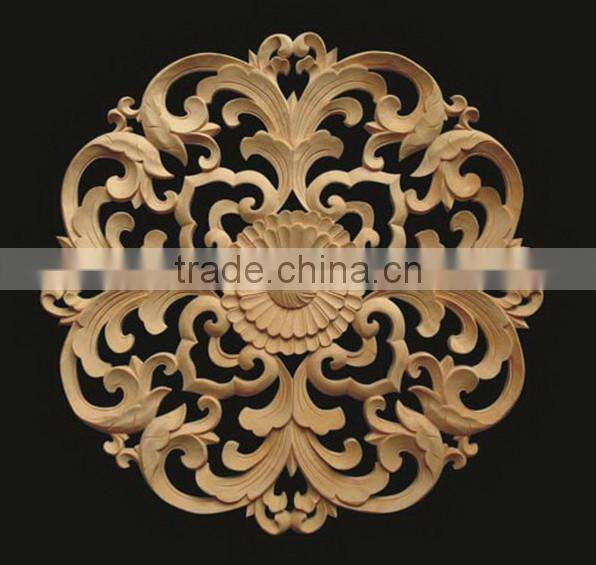

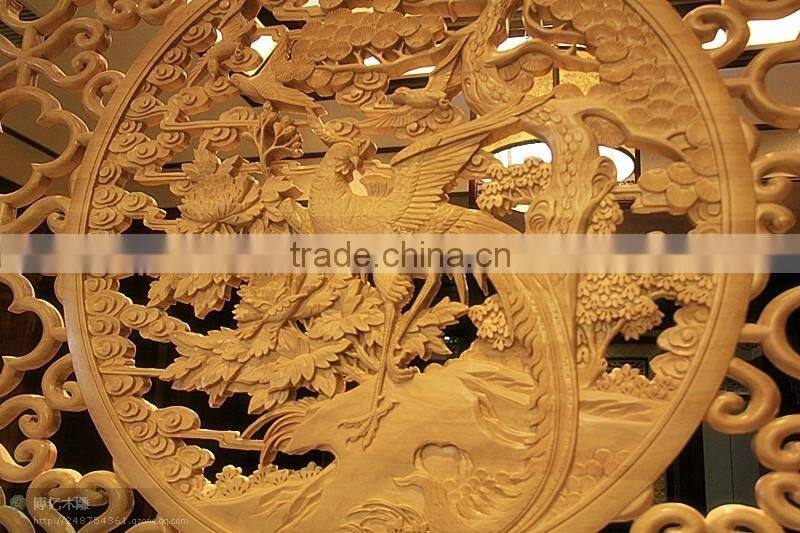

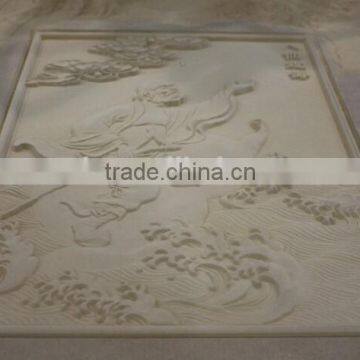

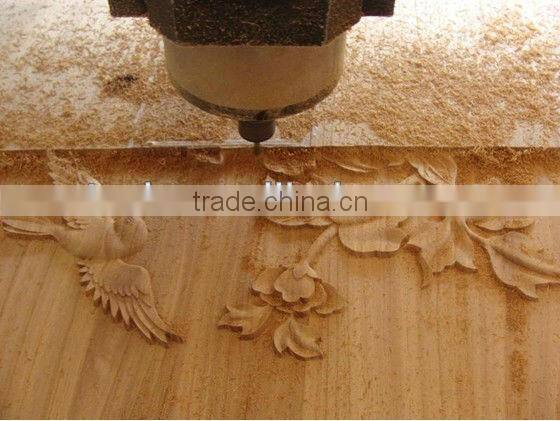

2 Pictures of the samples of Hot-sell wood working cnc router machine

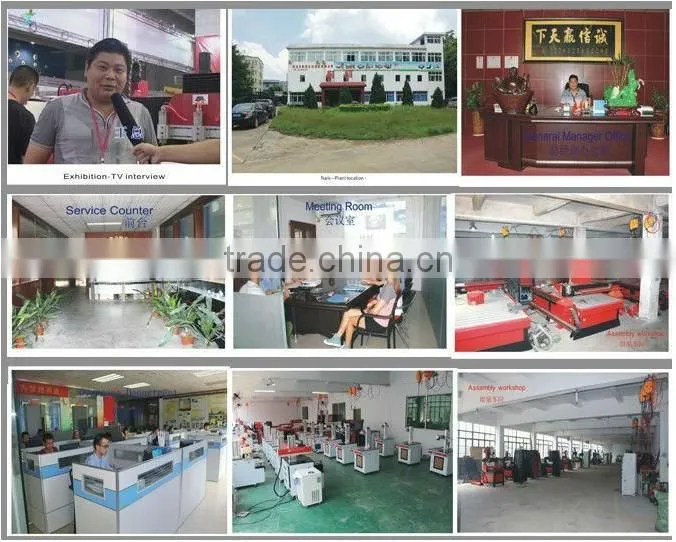

3.Our factory
We are Professional CNC Router Manufacturer and with thedevelopment of our factory , we are sincerely seeking for GlobalExclusive Agent.

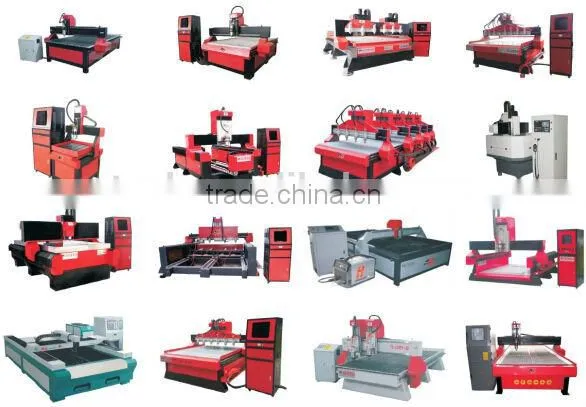

4.Pictures of our products
We have many kinds of cnc router machines,if you are finding machines please contact with us,we will try our best to find the most suitable machine for you.

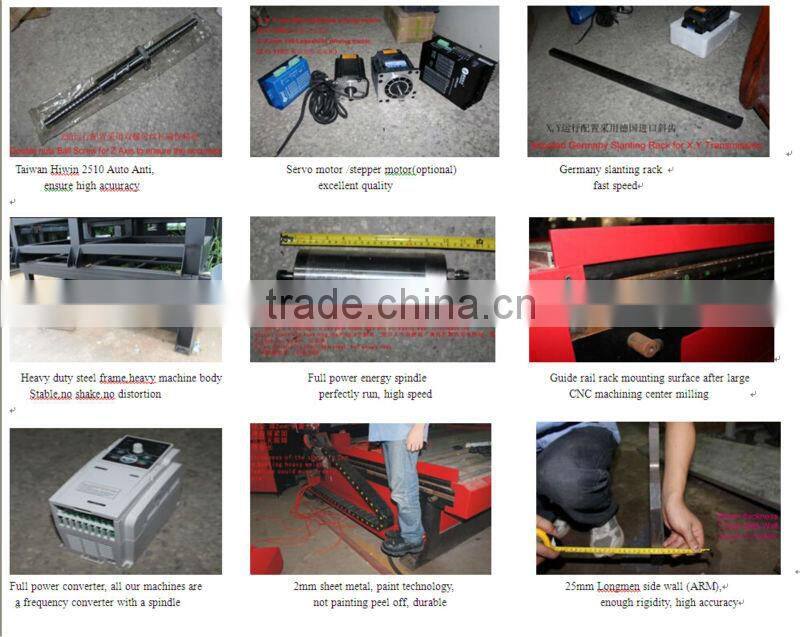

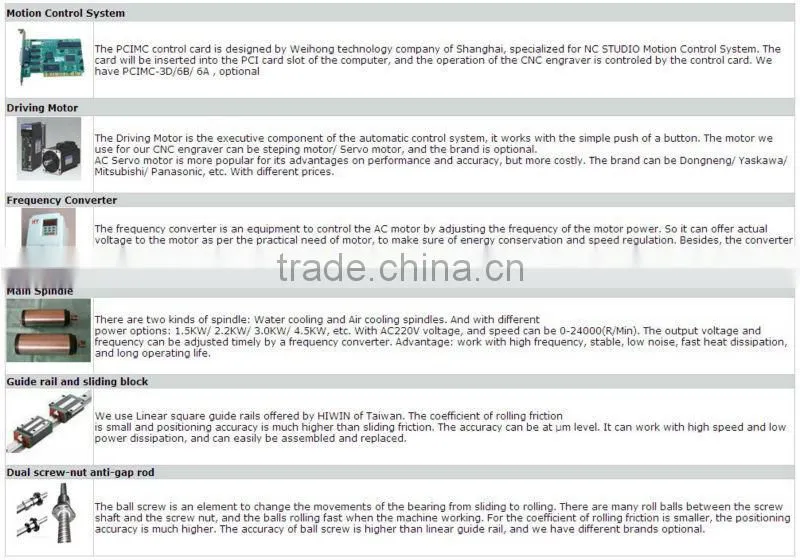

5. Hot-sell wood working cnc router machine for engraving wood details with pictures:
Optional parts:
1.The working range can be customized as per your requests;
2.The sturcture: can be Heavy-duty Tubular steel frame Or Lighter steel frame;
3.The table: can be T-slot Aluminum table Or Vacuum table for Maximun Fixturing Flexibility;
4. Spindle: the power of spindle can be 1.5KW/ 2.2KW/ 3.0KW/ 4.5KW/5.5KW/ 7.5KW/ 9KW, etc;
5. Drive Motor: can be Stepper Motor Or Servo Motor;
6. ATC(Automatic Tool Changing): Can be with Or without, Linear Or Hat shaped;
7. Control system: NcStudio with DSP Or computer cabinet;
8. Water cooling pipe: with Or without;
9. Rotary axis for 3D working: with Or without;
6.Our team
We will focus on your demand,providingyou with advise and information to help you grow!

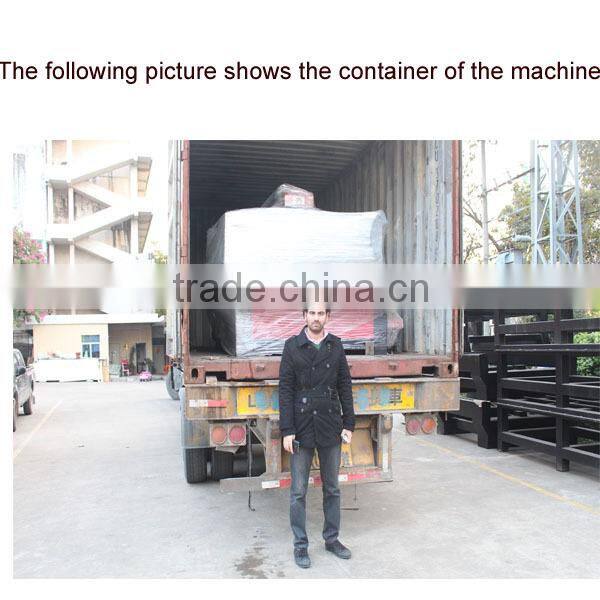

7. deliver goods
Shipping Terms
1,EXW
2,FOB SZ
3,CIF+Destination port
4,If you need us to book shipping cargo or not and etc,pls notice us,we are more
pleased to do so.
Payment terms
1,T/T 30%T/T in advance against the order confirmed and pay the balance 70%
against goods ready.
2,Western Union Total amount should be below than 5000 USD,and the bank
handling fee should be responsible for you.
3,L/C We would like to talk details with you if you really need L/C payment term
8.Certificate -CE /FDA/BV and so on
9.Our Service to you:
1. One year equipment warranty and maintenance for lifetime
2.Free installation and test before shipping and free training for operators
3.Advice for the solutions best for customers requirements
4.Free training and sample provided
Attn: Ecky Chen
QQ: 2871956603
SKYPE:lucky.guy.c
TEL:15986694413
