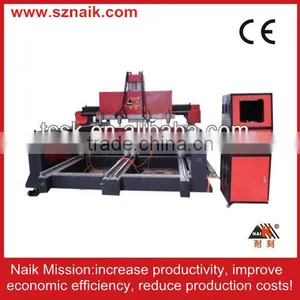

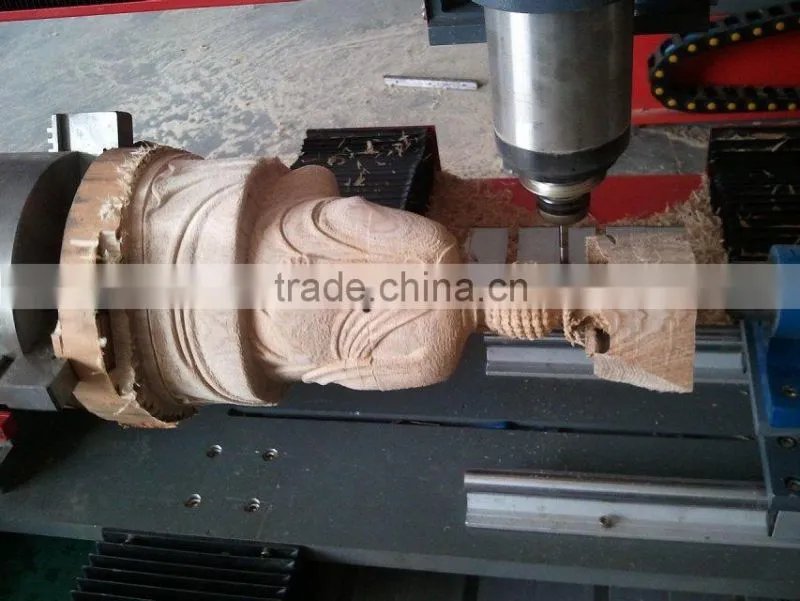

popular high efficiency cnc sculpture engraving machine cylinder
Suitable materials of popular high efficiency cnc sculpture engraving machine cylinder
1)With both aluminum alloy table&ratory axis,which can work on good-sized plane&cylindrical material;
2All kinds of wood,stone,plastic,glass,metal material,such as aluminum/stainless steelsheet/curtain wall/tombstone/stonewall/honorific arch/PVC/PP sheet/high precision prototype and electronic goverance and etc;
3)Can perfectly run in cutting/engraving;
4)Widely used in construction,decoration,furniture,art,and advertising industries.
Features of popular high efficiency cnc sculpture engraving machine cylinder
1,with 8mm thick heavy-duty T-steel frame,full-welded and VSR processed,to en sure stable,low inertia and no distortion during high-speed working;
2.Assembled with original Hiwin Linear square guide rail&dual-nut anti-gap rod ball scew and Germany made slanting rack,to ensure high accuracy,low noise,and long life;
3.Adopt high-speed sindle with constant torque,high-performance drive motor to ensure the long time and stable working;
4.Original Ncstudio OS,and computer cabinet control system with friendly UI,with simple operating software.it is convinient and easy to learn.
Field of application of popular high efficiency cnc sculpture engraving machine cylinder
Advertising industry, seal industry, craft and gift, art mould, wood working, mould etc. applicable material including on arylic, double-color board, PVC, ABS board, stone, imitation stone, metal,Steel, Aluminum Mold etc.
l Woodwork industry: sewing machine table, machine cabinet panel, sporting equipment, wooden door etc.
l Advertising industry: engrave and cut various signboards, marble, copper, character mold, font. And various metal sign, brand.
l Craft & gift industry: engrave various word or graph on the souvenir and handicraft, ironwork engraving, dials.
l Mould industry: architecture, Gilt membrane, electric machinery, High frequency mold, moulding on shoes, badge, embossed mould, biscuit, candy, chocolate mould
Specification of popular high efficiency cnc sculpture engraving machine cylinder
Model No |
14Stc-2022-4 |
Table Size |
2400mm×2600mm |
Effective Engraving Size |
2000mm×2200mm D500*2200 |
Z Axis Travelling |
750mm |
Feeding Height |
900mm |
Body Frame/Structure |
T-Steel(Steel structure 8mm Steel Pine) |
Table Material |
Thickness Aluminum |
Portal Side Wall Configuration |
Cast Iron |
Z Axis Movement Hardware Configuration |
Cast Aluminum |
Transmission Configuration |
Rack Gear(Germany Slanting Rack) |
Rail Configuration |
25mm Ball screw |
Z Axis Screw |
25 mm Screw C4 Grade,Double nut |
Positioning Accuracy |
±0.15/300mm |
Spindle Rotating Speed |
0-24000(rmp/min) |
Processing Speed |
0-30000mm/min |
X Axis Motor Drive |
France Schneider Servo Motor |
Y Axis Motor Drive |
France Schneider Servo Motor |
Z Axis Motor Drive |
France Schneider Servo Motor |
Movement Control |
NCstudio Control System |
Carving Instruction |
G Code*,U00*,mmg*,nc |
Resolution |
0.00625/Pulse |
Collet |
3.175mm,4mm,6mm,8mm, 12.7mm |
Spindle Rotating Power |
4.3KW Bearing Water Cooling Motor(4 pcs) |
Conventor |
Best,Independent conventor 4pcs |
Power |
220V/380v50HZ±10(Internal Switch Power) |
Weight |
Appro42000KGS |
Electric Box Configuration |
Computer capinet |
Movement Method |
Gantry Moving |
Samples

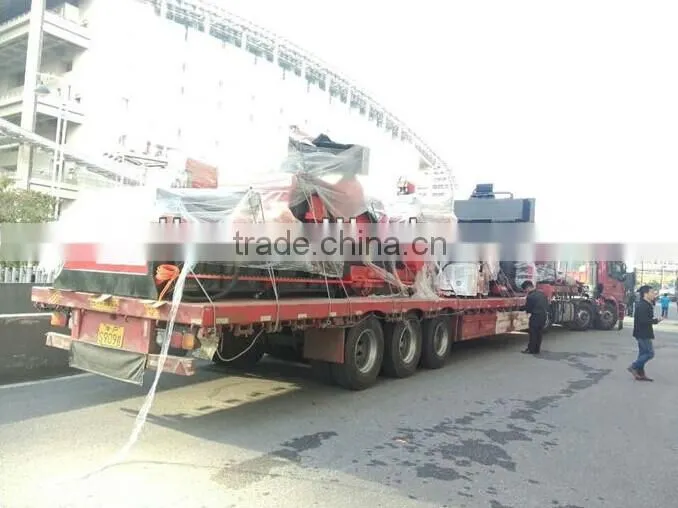

Shipping Terms
1,EXW
2,FOB SZ
3,CIF+Destination port
4,If you need us to book shipping cargo or not and etc,pls notice us,we are more pleased to do so.
Payment terms
1,T/T 30%T/T in advance against the order confirmed and pay the balance 70% against goods ready.
2,Western Union Total amount should be below than 5000 USD,and the bank handling fee should be responsible for you.
3,L/C We would like to talk details with you if you really need L/C payment terms.
Other payment terms,pls mention us.

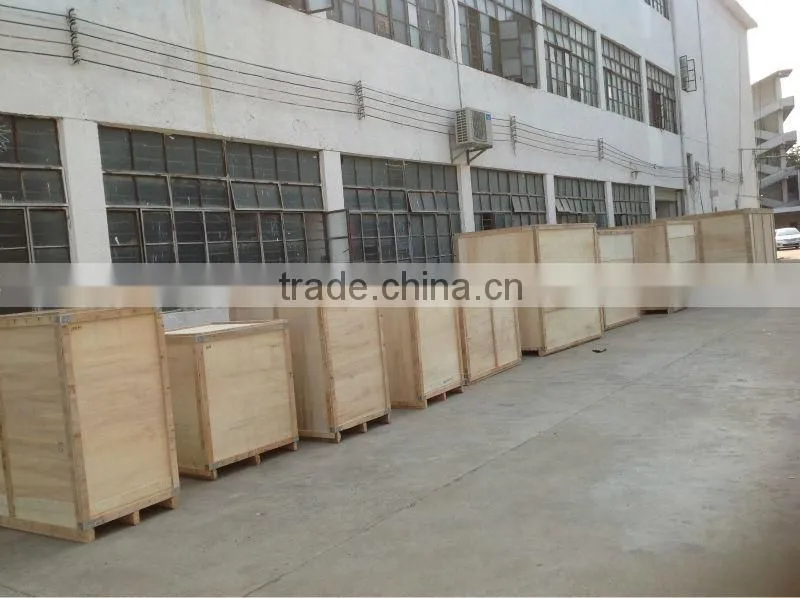

Packing photo
Certificates

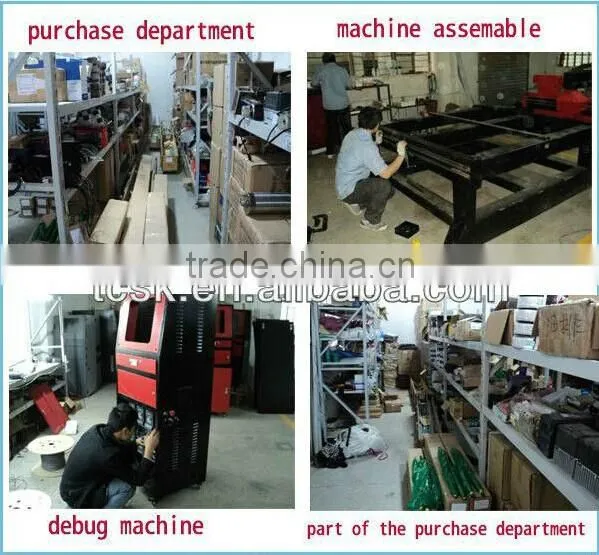

Our factory
Technical support
1,Once our business term is down,buyer can send your technical staff to learn related technology of CNC Router in our factory for free.
2,Or we can send our engineer to buyers’ country for technical support,but the buyer should be responsible for the return ticket for them.
Other special requests,pls mention us.
We are sincerely looking for agents all over the world,pls join us asap.
