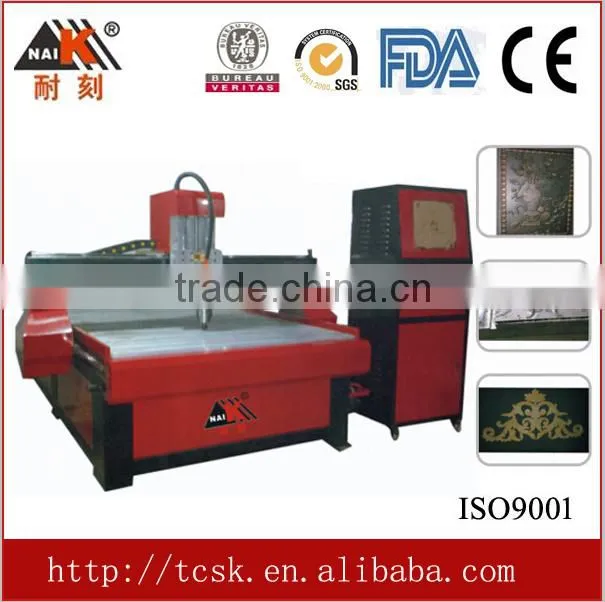

Shenzhen Naik 1325 hot-sale woodworking cnc router with high quality:
Product Features
1. Heavy duty steel frame, no distortion, no shake while working at high speed, the machined surface is smooth, and the tool is not easy to break; The full-weld and VSR process is used to make sure the structure stable, low inertia and no distortion during high-speed working.
2. Assembled with original Hiwin linear square guide rail & dual-nut anti-gap rod ball screw, and Germany made stanting rack, to ensure high accuracy, low noise, and long life.
3. Adopt high speed spindle with constant torque, big bearing, Strong Cutting capacity.
4. Original NcStudio OS, DSP control system with friendly UI, with simple operating sofware, it’s convenient and easy to learn.
Application Materials
All kinds of wood, plastic, metal Such as Aluminum/Stainless sheet/curtain wall/PVC/PP sheet/high precision Prototypel and electronic gove rnance, etc Can perfectly run
in cutting & eng raving Widely used in Construction, decoration, furniture, art, and advertising industries.
Guarantee & After-sales service:
Guarantee for one year
24 hour technical support by email or calling
User friendly English manual and Video CD for machine using and maintenance
Model No. |
4STC-1325B |
Table Size |
1450mm×2900mm |
Effective Working Area |
1300mm×2500mm |
Z Axis Travelling |
180mm |
Feeding Height |
200mm |
Body Frame/Structure |
Strong Steel frame |
Table |
Aluminum table |
X,Y Transmission |
Germany slanting rack and pinion |
Z Transmission |
Taiwan HIWIN 2510 dual-nut ball screw |
Rail Configuration |
Taiwan HIWIN 25 Linear square guide rails |
Positioning Accuracy |
±0.15/300mm |
Spindle Rotating Speed |
0-24000rpm |
Spindle power |
3KW(3.0,4.5,6,7.5kw for option) |
Y Axis Drive Motor |
Shenzhen Leisai Stepper Motor(Double Motor) |
X,Z Axis Drive Motor |
Shenzhen Leisai stepper Motor |
Movement Control |
NCSTUDIO control system |
Carving Instruction |
G code*,U00*,mmg*,nc |
Resolution |
0.00625/pulse |
Collet |
3.175mm,4mm,6mm,8mm,10mm,12.7mm |
Cooling system |
Water pump |
Power |
380V,50HZ±10(Internal Switch Power) |
Movement Pattern |
Gantry Moving |
Optional parts:
1.The working range can be customized as per your requests;
2.The sturcture: can be Heavy-duty Tubular steel frame Or Lighter steel frame;
3.The table: can be T-slot Aluminum table Or Vacuum table for Maximun Fixturing Flexibility;
4. Spindle: the power of spindle can be 1.5KW/ 2.2KW/ 3.0KW/ 4.5KW/5.5KW/ 7.5KW/ 9KW, etc;
5. Drive Motor: can be Stepper Motor Or Servo Motor;
6. ATC(Automatic Tool Changing): Can be with Or without, Linear Or Hat shaped;
7. Control system: NcStudio with DSP Or computer cabinet;
8. Water cooling pipe: with Or without;
9. Rotary axis for 3D working: with Or without;
Remark: The cost will be different with different configurations.
Machine details with pictures:
All the specifications can be customized as requested!

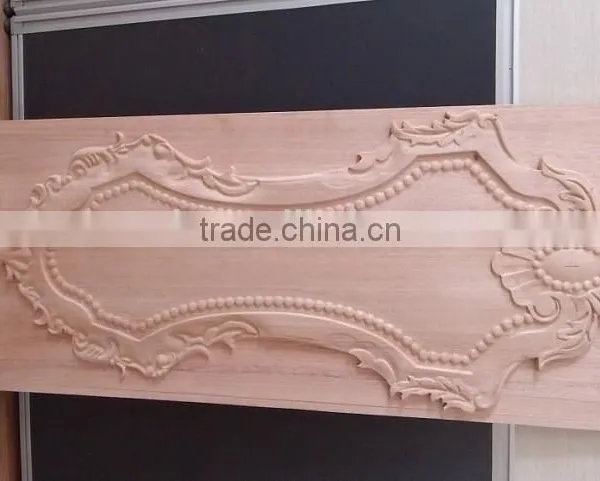

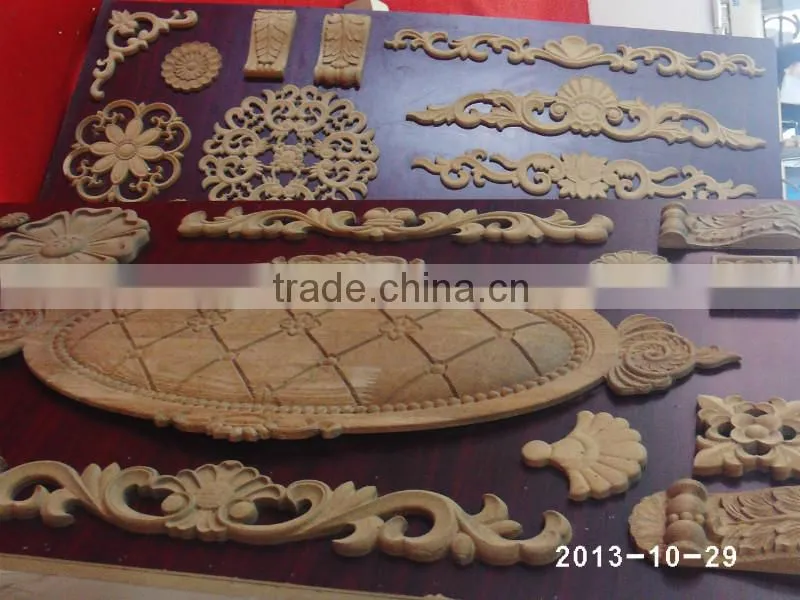

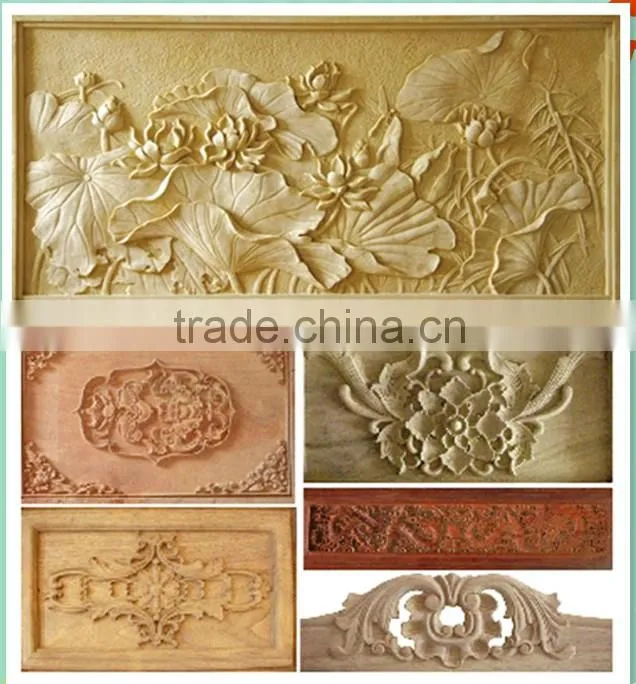

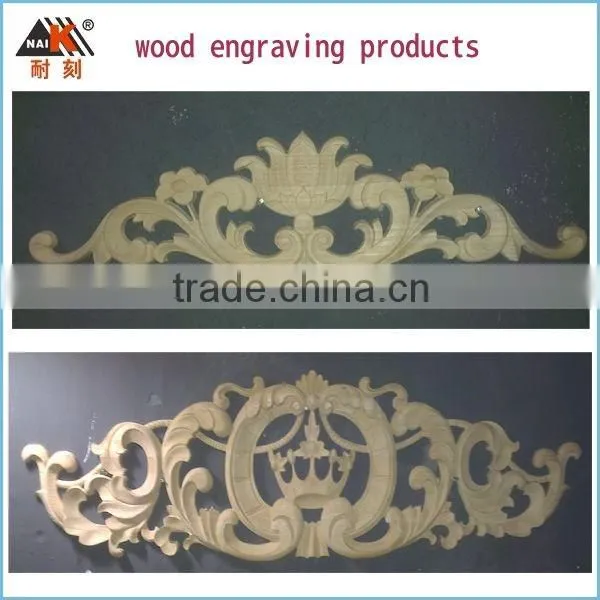

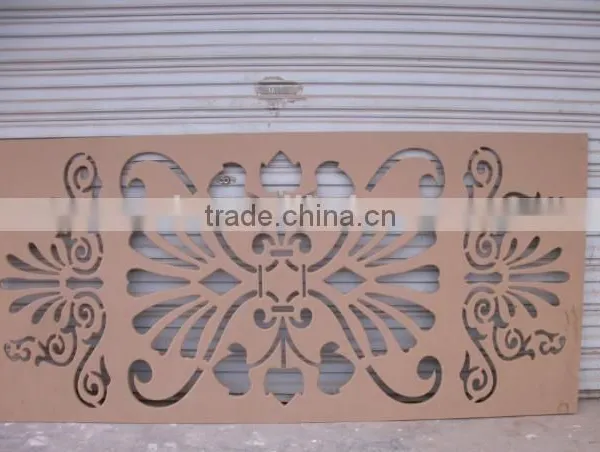

Pictures of sample:
Company Certificates

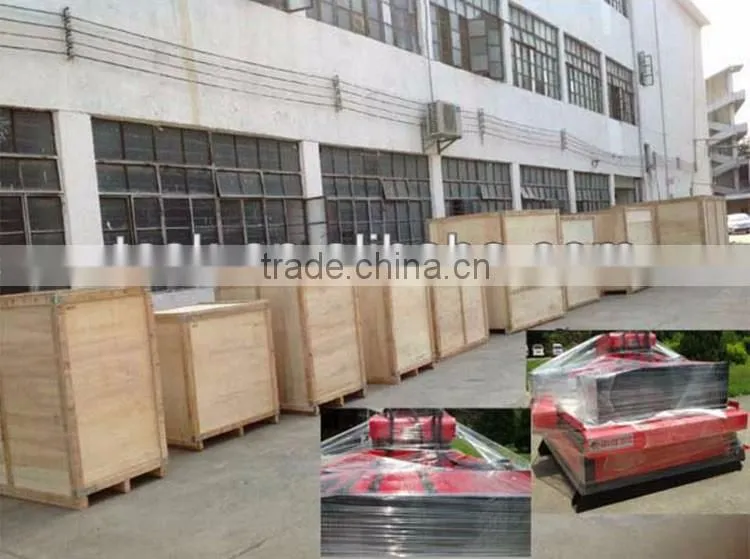

Pictures of our company
We are professional manufacturer of all kinds of CNC engraving machines, suitable for various of materials, such as: wood, stone, jade, acrylic, metal, ceramics, etc.
And we offer all kinds of CNC parts.
To know more about our products, please feel free to contact us !
