Famous Brand Chinese cnc machine hot sale! wood cnc engraving machine
Product features:
- With 2000mm* 1500mm engraving range;
- With 8 independent spindles, can enhance the efficiency of engraving work;
- Each spindle is cotrolled by an independent frequency converter, can ajust the motor power timely and accurately, it's more power-saving and safe.
- With T shape steel frame, to ensure the structure stability, low inertia and no distortion;
- HIWIN linear guide and sliding block, Germany made dual screw-nut anti-gap rod, with high accuracy, low noise, and long life;
- Equipped with high-speed spindle motor, high-performance division drive to ensure the long time and stable working;
- Adopted with advanced controlled system, with simple operating software, it’s easy to learn; And the operator can check the real-time trajectory, plus or minus Z-axis depth in real-time, and adjust the motor speed conveniently;
- Powerful compatibility for most of software such as: type3, Artcam, Proe, Wentai a variety of CAD / CAM;
- Humanized design, convenient for removing and installing;

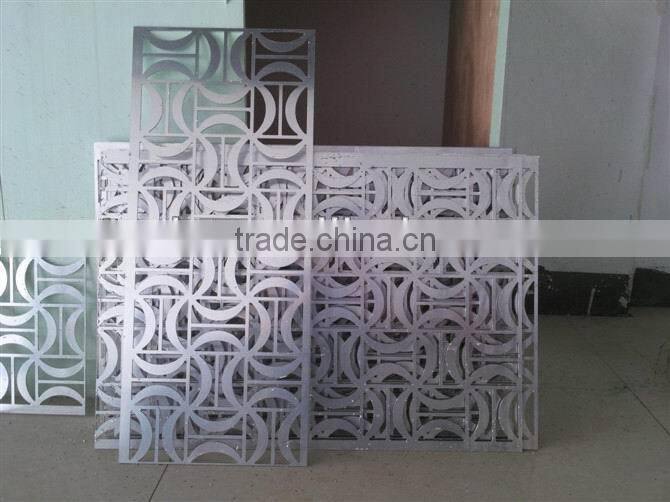

Pictures of sample:

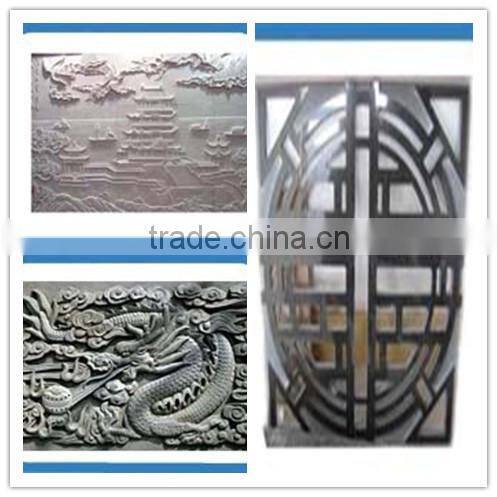

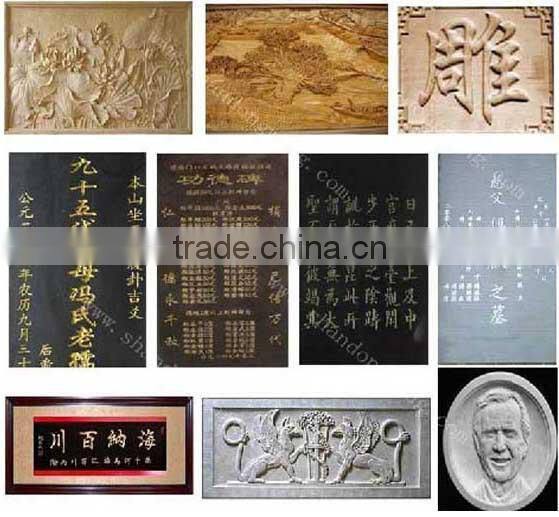

Samples of embossments
| Specifications option of the machine | ||||||
| Model No | 5STC-2015-8 | |||||
| Platform Size (mm) | 2100*2100mm | |||||
| Engraving range (mm) | 2000*1500mm | |||||
| Z axis traveling height(mm) | 180mm | |||||
| Max feeding height | 200mm | |||||
| Machine structure | 8mm thick heavy-dutytubular steel frame,Full welded VSRprocessed | |||||
| Z-axis clevis | U-shaped cast aluminium machined by cnc center | |||||
| Sidewall of Yaxis | Cast iron machined by cnc center | |||||
| Fuselage | 8mm steel machined by cnc center | |||||
| Surface material | 3mm(Top thickness)*5mm(side wall)*24mm(hight) aluminium alloy | |||||
| sheet metal for x axis drag chain | Cast Aluminium machined by cnc center | |||||
| The beam | 8mm steel machined by cnc center | |||||
| XY Transmission | Taiwan HIWIN 25Ball Screw | |||||
| Z Transmission | Taiwan HIWIN 25 ball Screw | |||||
| Rail configuration | HIWIN 25 Square guide rail | |||||
| Positioning accuracy | ±0.05/300mm | |||||
| Spindle speed | 0-24000(r/min) | |||||
| Y-axis dual drive | Stepper Motor Leadshine 86 | |||||
| X Z axis drive | Stepper Motor Leadshine 110 | |||||
| Control system | Ncstudio control system | |||||
| code Formats | G code U00mmg,NC | |||||
| Idle speed | 0-20000mm/min | |||||
| working speed | 0-15000mm/min | |||||
| Resolution | 0.00625/Pulse | |||||
| Tool diameter | 3.175mm,4mm,6mm8mm10mm12.7mm | |||||
| Spindle power | 8-2.2kw water cooling 4bearings | |||||
| converter | 8-shenzhen sunfar converter | |||||
| Cooling | Water Pump | |||||
| Weight | 2700kg | |||||
| Power | 380v50HZ±10(internal powre) | |||||
| Electric Box | intergrated computer control cabinet | |||||
| Mode of motion | Gantry moving | |||||
| Remarks: We can freely clear customs for you . | ||||||
| Price term & Warranty | ||||||
| MOQ: 1 Set | ||||||
| Price term: EXW/ FOB Shenzhen (optional) | ||||||
| Payment term: 30% advanced by T/T, the balanced before shipping | ||||||
| Validity of quote is within 15 days. | ||||||
| Delivery time: In 10-15 days | ||||||
| Warranty: 1 year. With A full range of technical support | ||||||
Main Programing Software---Matercam;Catia;Jdpaint;Powermill;Delcam;Cimatron;UG;Pro-e and etc.
| Motion Control System | |||
|
The PCIMC control card is designed by Weihong technology company of Shanghai, specialized for NC STUDIO Motion Control System. The card will be inserted into the PCI card slot of the computer, and the operation of the CNC engraver is controled by the control card. We have PCIMC-3D/6B/ 6A , optional. | ||
| Driving Motor | |||
|
The Driving Motor is the executive component of the automatic control system, it works with the simple push of a button. The motor we use for our CNC engraver can be steping motor/ Servo motor, and the brand is optional. |
||

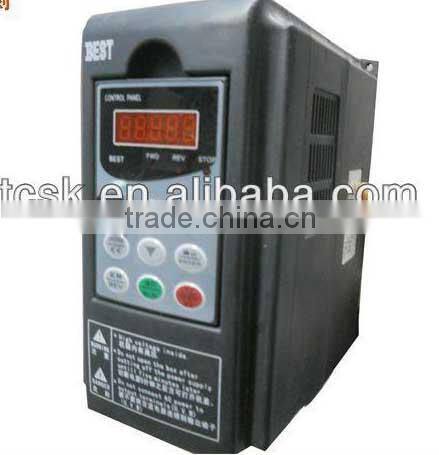

| Frequency Converter | |||
|
The frequency converter is an equipment to control the AC motor by adjusting the frequency of the motor power. So it can offer actual voltage to the motor as per the practical need of motor, to make sure of energy conservation and speed regulation. Besides, the converter can protect the motor from over current, over voltage, overloaded, etc. Each spindle motor is connected with a independent frequency converter, it's more safe and timeproof. | ||
| Main Spindle | |||
|
There are two kinds of spindle: Water cooling and Air cooling spindles. And with different |
||
| Guide rail and sliding block | |||
|
We use Linear square guide rails offered by HIWIN of Taiwan. The coefficient of rolling friction |
||
| Dual screw-nut anti-gap rod | |||
|
The ball screw is an element to change the movements of the bearing from sliding to rolling. There are many roll balls between the screw shaft and the screw nut, and the balls rolling fast when the machine working. For the coefficient of rolling friction is smaller, the positioning accuracy is much higher. The accuracy of ball screw is higher than linear guide rail, and we have different brands optional. | ||
All the specifications can be customized as requested!
What can we do?
1)For materials:
Wood(Timber ,Hard wood;plywood;whitewood;red wood,soft wood,MDF and etc) CNC Router Engraving/Carving/Cutting Machine;
Plastic(PMMA,,PVC Sheet,ABS Sheet;KT Sheet;UV,PU,;Aluminum Composite Panel and etc)CNC Router Engraving/Carving/Cutting Machine;
Stone(Tomstone,Gemstone,Granite,Marble and etc)CNC Router Engraving/Cutting/Carving Machine;
Acrylic CNC Router Engraving/Carving/Cutting Machine;
Metal(Iron,Stainless,Aluminum,Copper and etc)CNC Router Engraving/Cutting/Carving Machine;
2)For quantities of Spindle:
Single Spindle CNC Router,2 Spindles CNC Router;3,4...12,15 Spindles and etc Multi-spinldes CNC Router Engraving/Carving/Cutting Machinery;
3)For Axies:
2 Axis CNC Machine,3 Axis CNC Router,4 Axis CNC Engraving Machine,5 Axis CNC Router,6 Axis CNC Router Machine;
4)For Spindle Power:
There are 2.0KW/3.0KW/4.5KW/5.5KW/7.5KW/9.0KW CNC Router Machine;
5)Others,
Plane&Cylinder CNC Router Machine;ATC CNC Router;Automatic Tool Changed CNC Machine;Router Axis CNC Machine;Dual Z Axis CNC Machine;
Heavy-duty CNC Router,Low cost CNC Machine,Enconomic CNC Router;Vac-sorb CNC Engraving Machine;Ncstudio Control System CNC Router Machine;
CNC Laser Machine;CNC Plasma Cutter ;CNC Laser Cutting Machine ,MINI CNC Router and etc.

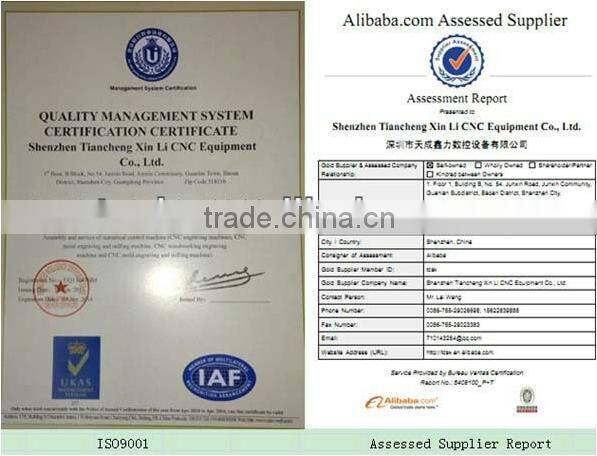

Information of our company
We are professional manufacturer of all kinds of CNC engraving machines, suitable for various of materials, such as: wood, stone, jade, acrylic, metal, ceramics, etc. Platform material
And we offer all kinds of CNC parts.
To know more about our products, please feel free to contact with us !
