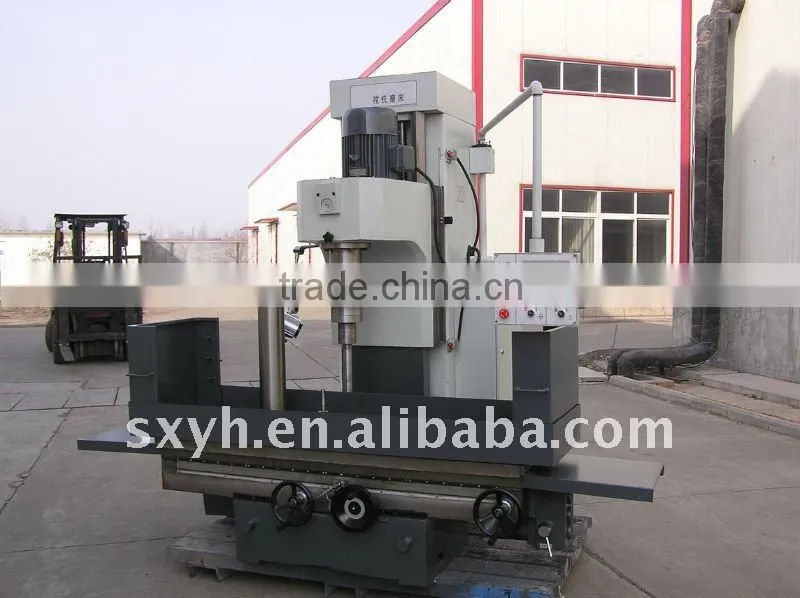

Help CenterTXM260 Vertical Fine Boring Grinding and Milling Machine
Related Products
Specifications
1.CE,standard2.No.1 quality in the market
3.High quality to price ratio
4.spare parts support
MAIN SPECIFICATIONS:
1. Milling head diameter: φ250
2. Max. Milling area(mm): 600×1000
3. Grinding head diameter:φ320
4. Max. grinding area(mm): 600×1000
5. Max. Boring Dia.:φ180
6. Spindle rotating speed (stepless)(r/min): 120-1200
7. Spindle feed (stepless)(mm/min): 14-900
8. Longitudinal feed of table(mm): 32-1350
9. Spindle travel(mm): 700
10. Distance between spindle face and table(mm): 0-700
11. Distance between spindle axis and carriage vertical plane(mm): 375
12. Table dimensions(mm): 450×1590
13. Table longitudinal travel (mm): 1500
14. Table latitudinal travel (mm): 150
15. Main motor power (Kw): 5.5
16. Spindle and table feed motor: DC220V 4.5A
17. Overall dimensions of the machine(cm): 200×160×220
18. Packing dimensions(cm): 210×170×225
19. CNC system is made in China (English vision)
