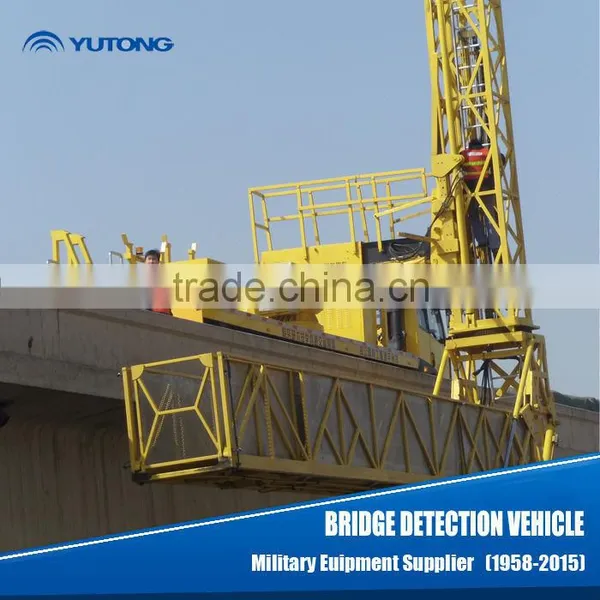

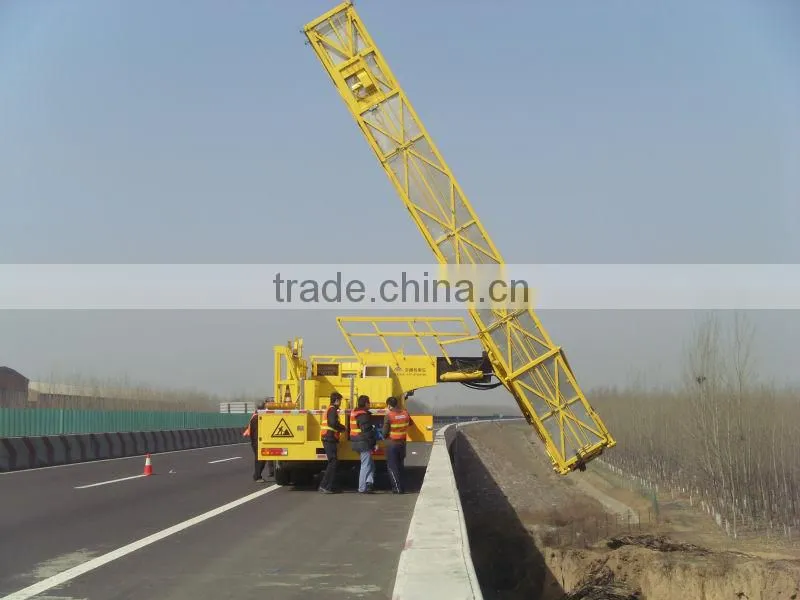

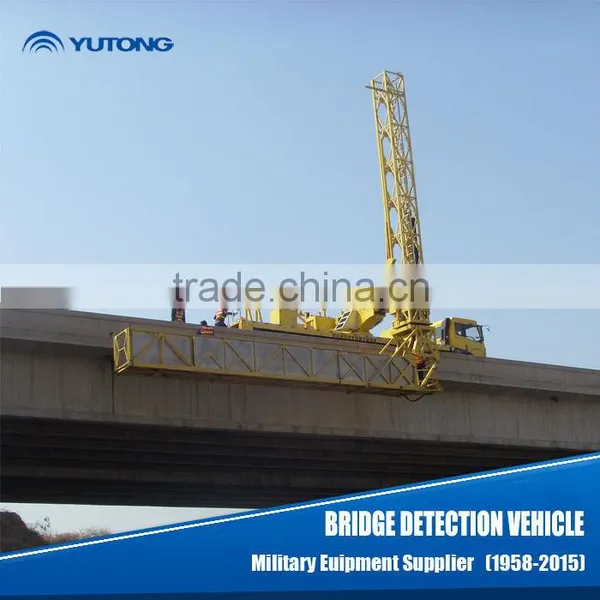

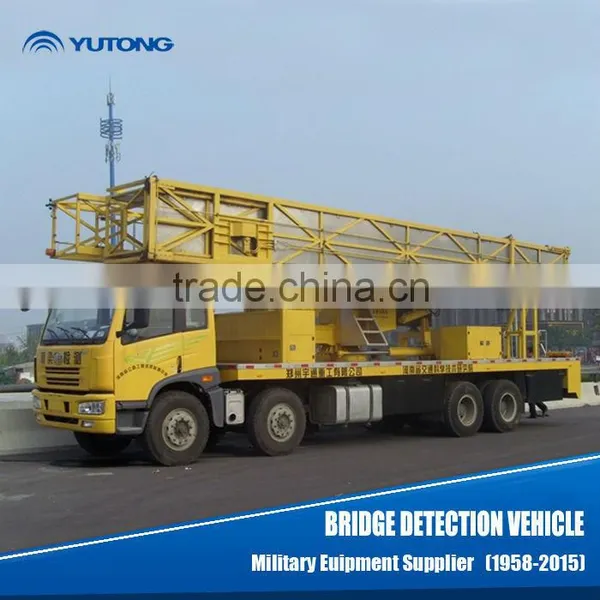

Yutong Bridge Inspection Vehicle
Parameters of complete vehicle and chassis of YTZ5310JQJ18 bridge-inspection vehicle
Vehicle model |
YTZ5310JQJ18 |
Chassis model |
CA1313P7K1L11T4E |
Chassis manufacturer |
China FAW Group Corporation |
Engine model |
FAW BF6M1013-28E3 |
Engine power (kw/Ps) |
206/280 |
Wheelbase |
1900+4500+1350 |
Rear axle |
13T class double rear axle |
Tyre |
11.00R20 Steel wire tire |
3. Parameters of working devices of YTZ5310JQJ18
Horizontal operating range under the bridge (mm) |
10325~18000 |
Working platform's maximum dimension of getting off the bridge (mm) |
8000 |
Rated load/remote load of working platform (kg) |
600/300 |
Swing angle of working platform under the bridge (°) |
180 |
Distance of crossing the sidewalk (mm) |
2100~2500 |
Height of crossing the guardrail (mm) |
2100 |
Structural type of working platform |
Trussed type |
Main power of working device |
Take the force from chassis through power take-off |
Standby power of working device |
Gasoline engine unit |
Drive type of self-propelled device |
Hydraulic drive |
Self-propelled speed (m/min) |
≤16 |
Operation method |
Manual, electric control |
Communication mode |
Wired and wireless intercom system |
Monitoring mode |
Wired monitoring system |
4. Performance characteristics of YTZ5310JQJ18
a. High reliability:
The material of trusswork of YTZ5310JQJ18 bridge-inspection vehicle adopts high-strength rectangular tube imported from Germany. The complete set of software and hardware products of electrical control system uses the products of Italy 3B6 Company. All the main components of hydraulic system adopt the products produced by Germany HAVE, Italy RR, OilControl, NEM, Denmark Danfoss and other international well-known manufacturers. The vehicle has taken a five-day reliability test. Its standby power is imported from Honda.
b. High security:
The key positions of this vehicle have three limit switches, including mechanical limit switch, hydraulic limit switch and electrical limit switch, and they can be interlocked when the operator gets on and off the vehicle. The automatic oil filling module which is independently developed by Yutong ensures the security of the vehicle’s hydraulic system. Operator can know the operating conditions in time through monitoring system. In order to prevent dangerous working conditions caused by strong wind, the vehicle is equipped with wind speed monitor.
c. High efficiency
Standard large-power generator provides independent power for the detection and construction under the bridge. The self-propelled capacity is strong during operation.
d. Humanized design
The bridge-inspection vehicle can be unfolded directly on the ground, without getting on the bridge, so it facilities the routine maintenance. The passageway of working platform adopts non-barrier design.
There is no packing to the main machine, small parts and wear parts will be packed in box . |
We usually use roll-on-roll-off ship because the volume is too big to be put into a container. |
|
|
|
- We supply the package of service to minning works. such as drilling, stone crushing, granule delivery, etc.
- We supply the package of service to sanitation works, such as road cleaning, city garbage compactor, delivery, etc.
- We supply the technique support to these customer for better usage of our products.
- 24 hours response principle, let us to help you faster and better.
- Some products can be found below, (Click the name or the picture for quick browsing)
| Catalogue |
Products Description | |
|
Dump truck | Loadage can be 40t -100t |
|
Wheel loader | Loadage can be 3t - 8 t |
|
Bulldozer | 3 m3 capcity and other capcity |
|
Truck mounted crane | 5t - 50 t |
|
Crawler crane | 50t - 360 t |
|
Drilling rigs | Rotary Drilling Rigs; Auger Rigs; Anchor rigs |
|
Sanitation equipment | Sweeper; garbage compressing machine; sewage suction truck; Sprinkler Vehicle etc. |
|
Concrete Mixer Truck | 8 m3 - 10 m3 |
You can contact with me for more information and serive.
Yutong Heavy Industries") is the core enterprise of Yutong Group, a profe-
ssional manufacturer integrating research and development, manufacturing
and sales service. Being one of the 50 largest engineering machinery ma-
nufacturers in China, with registered capital of 600 million and more than
3,000 employees.
