High Tensile Hollow Anchor Rod R38L Diameter 1000mm - 8000mm for Quarry Stabilization

Name: High Tensile Hollow Anchor Rod R38L Diameter 1000mm - 8000mm for Quarry Stabilization
Brand: Miroc
SKU: 119095975
Availability: InStock

High Tensile Hollow Anchor Rod R38L Diameter 1000mm - 8000mm for Quarry Stabilization thumbnail-1

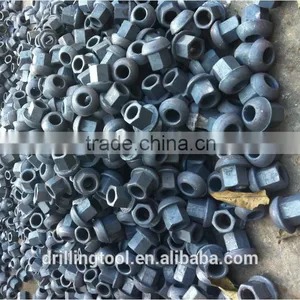

High Tensile Hollow Anchor Rod R38L Diameter 1000mm - 8000mm for Quarry Stabilization thumbnail-2

High Tensile Hollow Anchor Rod R38L Diameter 1000mm - 8000mm for Quarry Stabilization thumbnail-3

High Tensile Hollow Anchor Rod R38L Diameter 1000mm - 8000mm for Quarry Stabilization thumbnail-4

High Tensile Hollow Anchor Rod R38L Diameter 1000mm - 8000mm for Quarry Stabilization photo-1

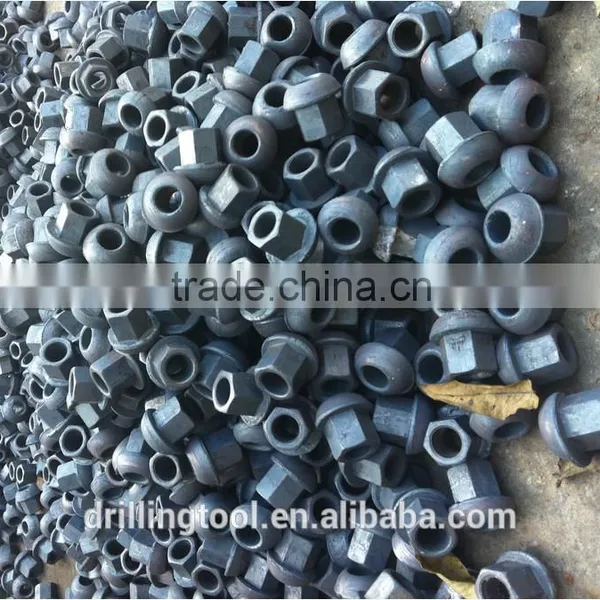

High Tensile Hollow Anchor Rod R38L Diameter 1000mm - 8000mm for Quarry Stabilization photo-2

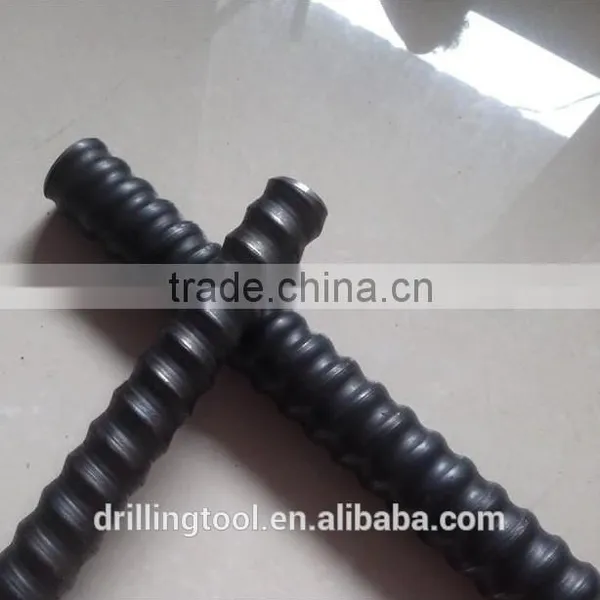

High Tensile Hollow Anchor Rod R38L Diameter 1000mm - 8000mm for Quarry Stabilization photo-3

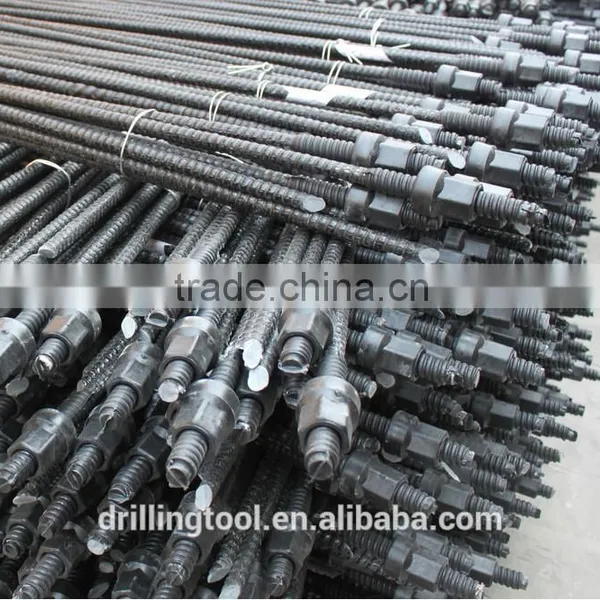

High Tensile Hollow Anchor Rod R38L Diameter 1000mm - 8000mm for Quarry Stabilization photo-4

US$ 1.8 - 10 MOQ: 50 Meters

Key Specifications

Get Latest Price

Place of Origin:

Shandong, China

Brand Name:

Miroc

Model Number:

R25,R32N/L,R32S,R38N,R51N,R51L, T76N, T76S

Contact Supplier Request Quote Chat Now

KSQ Technologies (Beijing) Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

FOB BeiJing or TianJin

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Shandong, China

Brand Name Miroc

Model Number R25,R32N/L,R32S,R38N,R51N,R51L, T76N, T76S

Type Anchor Bolt

Material Other, Steel, 40Cr steel

Diameter 25mm-130mm

Length 1000mm~8000mm

Capacity 200KN-8000KN

Standard ISO

Anchor bolt

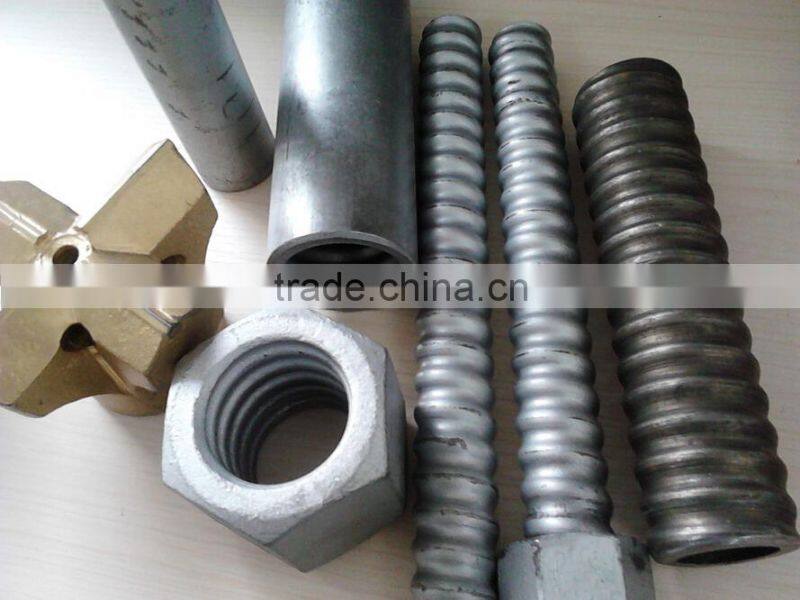

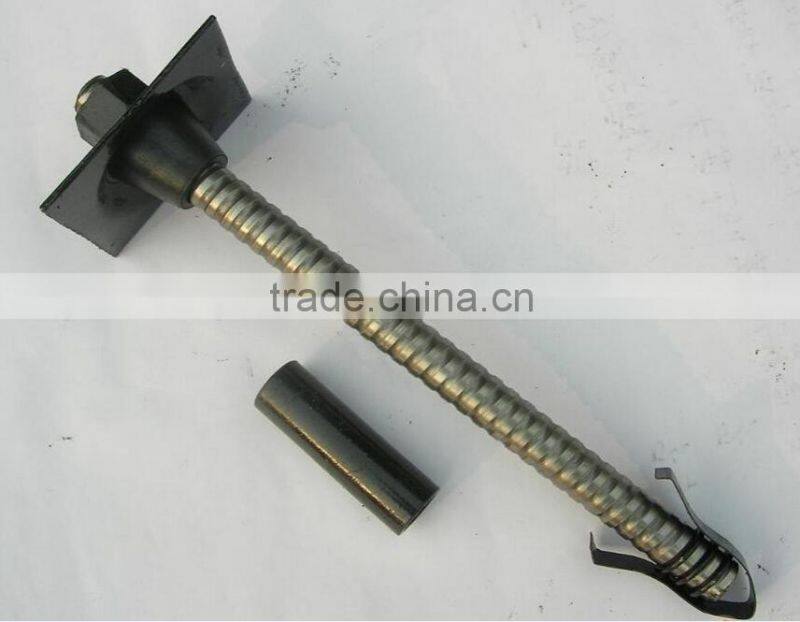

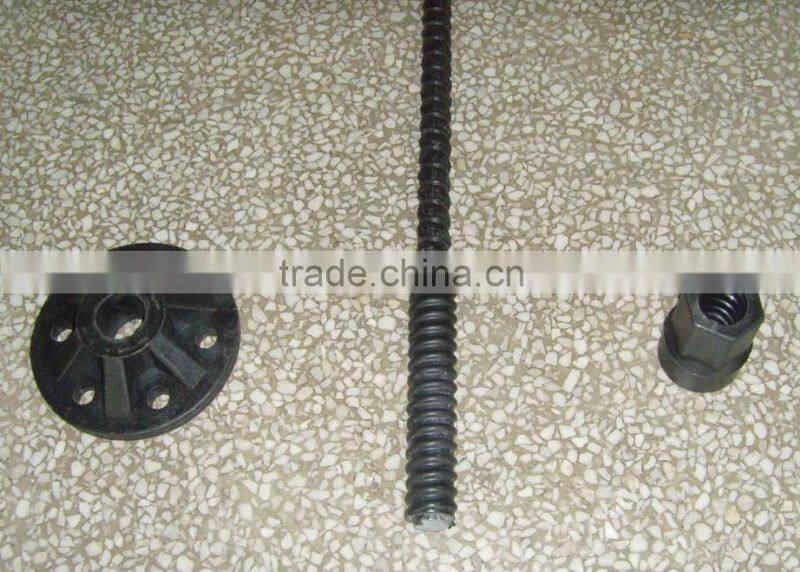

Anchor bolt means a rod that transfers the structures or geotechnical load to a stable rock

formations, it consists of rod, drill bit, coupling, plate, grouting stopper and nut. It has been

widely used in tunnling, mining, slope stabilization, tunneldiseases treatment and roof supporting

of undergroundworks. It is for loose ground(clay, sand friable etc.) Hollow anchor rod is made of

seamless tube with high strength.

Features of hollow grounting anchor bolt

• Particularly suitable for difficult ground conditions.

• A high rate of installation since drilling, placing and grouting can be performed in one single operation.

• Self drilling system eliminates the requirement for a cased borehole.

• Installation with simultaneous drilling and grouting possible.

• Easy installation in all directions, also upwards.

• Suitable for working in limited space, height and in areas of difficult access.

• Simple post grouting system. • Hot-dipped galvanizing for corrosion protection

Applications in Tunneling & Ground Engineering

• Radial bolting

• Slope stabilization

• Forepoling

• Micro injection pile

• Face stabilization

• Temporary support anchor

• Portal preparation

• Soil nailing

Self-Drilling Anchor Bolt Description


	R25N	R32N	R32S	R38N	R51L	R51N	T76N	T76S
Outside Diameter (mm)	25	32	32	38	51	51	76	76
Internal Diameter (mm)	14	19	16	19	36	33	52	45
Ultimate Load Capacity (kN)	200	280	360	500	550	800	1600	1900
Yield Load Capacity (kN)	150	230	280	400	450	630	1200	1500
Tensile Strength, Rm (N/mm2)	800	800	800	800	800	800	800	800
Yield Strength, Rp0.2 (N/mm2)	650	650	650	650	650	650	650	650
Weight (Kg/m)	2.3	3.2	3.6	5.5	6.5	8.0	16.0	19.7
Steel Grade	EN10083-1 (Alloy Structure Steel)
Steel Grade	Compared to carbon steel, alloy structure steel has high anti-corrosion capacity and high mechanical.

Drill Bit

	R25N	R32N	R32S	R38N	R51L	R51N	T76N	T76S
diameter(mm)	41,51	51,76,90		90,100,110,115,130			130,150,160,180,200
Hardened cross bit (EX)	Hardened cross bit for loose to medium dense condition with small boulders.
Tungsten cross bit (EXX)	TC cross bit for soft to medium rock for mations
Hardened button bit (ES)	Hardened buuton bit for unconsolidated rock with boulders.
Tungsten carbon button bit (ESS)	Button bit with TC inserts for medium rock for formations.
Hardened arch bit (EC)	Hardened drill bit with optimized geometry for unconsoliddated soil with small boulders.
Tungsten carbon arch bit (ECC)	TC drill bit with optimized geometry for soft to medium rock formations.
Hardened drop center bit (EY)	Hardened cross bit for loose to medium dense ground conditions
TC drop center bit (EY)	TC drill bit for soft to medium rock formations.
Casting clay bit (EW)	Casting clay bit with optimized geometry for very soft to soft caly.
Machined steel bit or Casring steel bit

T-Thread Anchor Bolt Technial Data

Bar Type	Outside Diameter (mm)	Inside Diameter (mm)	Cross section (mm2)	Ultimate Load KN	Yield Point KN	Weight (kg/m)	Thread Left/ Right Hand
30/11	30	11	446	320	260	3.3	Lift or right
30/14	30	14	395	260	220	2.9	Lift or right
30/16	30	16	382	220	180	2.7	Lift or right
40/16	40	16	879	660	525	7.0	Lift or right
40/20	40	20	726	539	430	5.6	Lift or right
52/26	52	26	1337	929	730	10.0	Lift or right
73/53	73	53	1160	1630	970	12.3	Lift or right
73/56	73	56	1094	1414	785	11.1	Lift or right
73/45	73	45	2265	1630	1180	17.8	Lift or right
