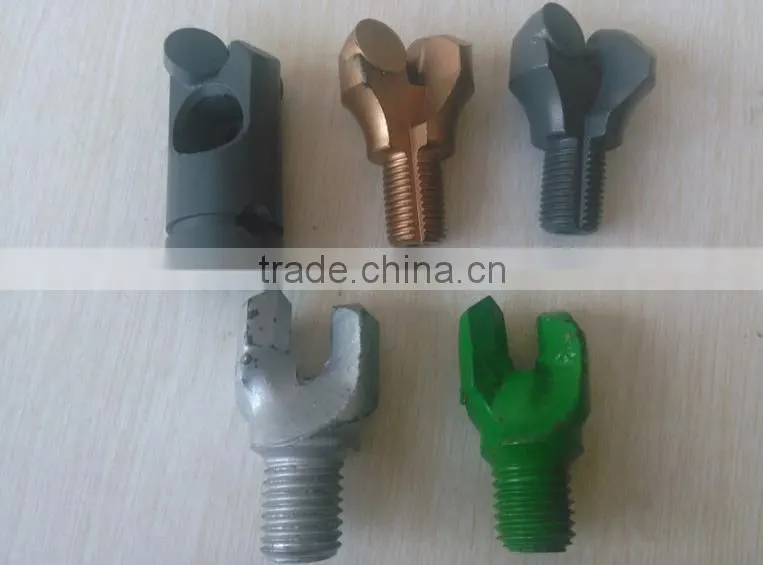

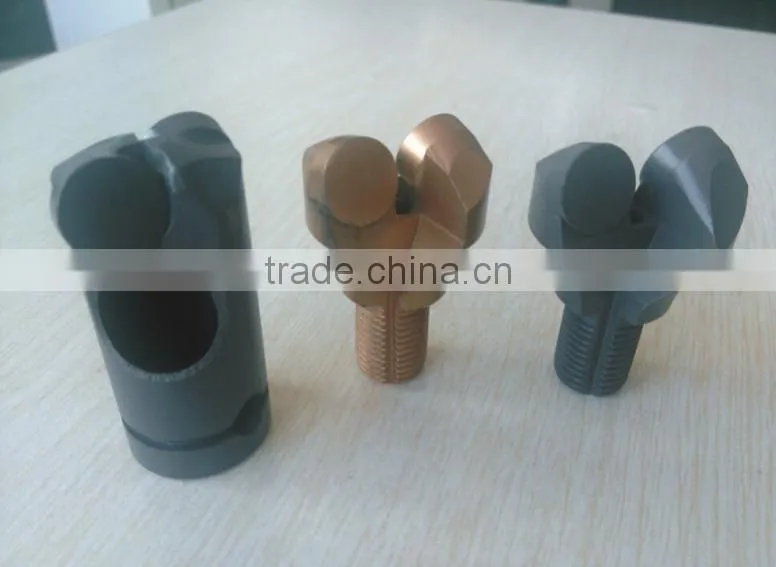

Coal Mining PDC Drill Bit Toughness with Tungsten Carbide Tips
Specifications:
28mm,32mm,42mm,43mm coal mining tool
We can manufacture all kinds of bits and shells according to customer's special requirement.
Advantages:
al mining tool,coal mine drill bit
2.low price and supreme quality
3.manufacturer
4.Certified by ISO9001
Product Description:
Applications:
Apply to the anchor-network support hole drilling in coal mine, hydraulic project. Etc.
Characteristics:
1. High wear resistance and impact-resistance toughness.
2. To repeat repair & greaning are not necessary, long drill life.
3. High efficiency could be promoted sharply in penetration of high-medium hard rock formation.
4. Labour intensity could be reduced.
5. Rock formation to be suitable t: F=4-12
Mining Drilling Tools |
Main Standard(mm) |
|||
D |
H |
L |
M |
|
Thread joint |
27 |
44 |
17 |
M14×1.5 |
27 |
54 |
17 |
M12×1.75 |
|
28 |
54 |
20 |
M12×1.75 |
|
29 |
52 |
18 |
M14×1.5 |
|
30 |
50 |
18 |
M14×1.5 |
|
32 |
52 |
22 |
M14×1.5 |
|
32 |
56 |
22 |
M12×1.75 |
|

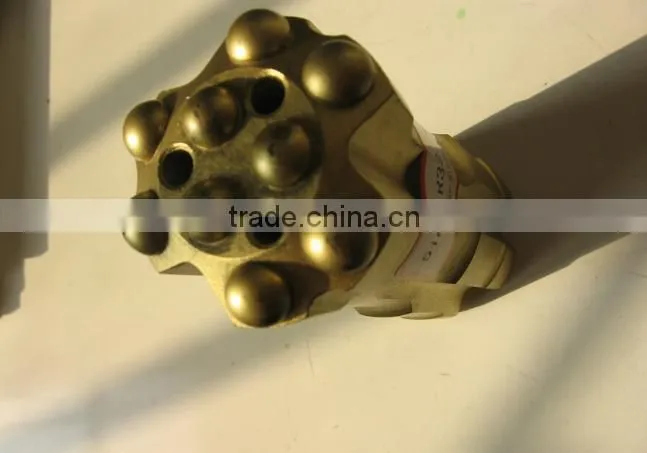

Threaded Button Bit
| T38 button bit | ||||||
| Bit Dia. | Buttons and Size (mm) | Flushing Hole | Weight | |||
| mm | Front | Gauge | Front | Side | kg | |
| 1 | 64 | 3×10, 1×10 | 6×11 | 3 | - | 1.7 |
| 2 | 70 | 3×10, 1×10 | 6×12 | 3 | - | 1.8 |
| 3 | 76 | 3×11, 1×11 | 6×12 | 3 | 1 | 2.6 |
| 4 | 89 | 3×11, 2×11 | 6×13 | 3 | 1 | 3.3 |
| R38 button bit | ||||||
| Bit Dia. | Buttons and Size (mm) | Flushing Hole | Weight | |||
| mm | Front | Gauge | Front | Side | kg | |
| 1 | 64 | 3×11 | 6×12 | 3 | - | 1.8 |
| 2 | 70 | 3×10, 1×10 | 6×12 | 3 | - | 1.8 |
| 3 | 76 | 3×11, 1×11 | 6×12 | 2 | - | 2.6 |
| 4 | 89 | 4×13, 1×13 | 8×13 | 4 | - | 3.3 |
| R32 button bit | ||||||
| Bit Dia. | Buttons and Size (mm) | Flushing Hole | Weight | |||
| mm | Front | Gauge | Front | Side | kg | |
| 1 | 41 | 2×8 | 5×9 | 1 | 1 | 0.7 |
| 2 | 43 | 2×9 | 5×10 | 1 | 1 | 0.7 |
| 3 | 45 | 2×9 | 5×11 | 1 | 1 | 0.8 |
| 4 | 48 | 2×9 | 5×11 | 1 | 1 | 0.9 |
| 5 | 51 | 2×10 | 5×11 | 1 | 1 | 1 |
| 6 | 57 | 3×9 | 6×11 | 3 | - | 1.3 |
| 7 | 64 | 3×11 | 6×12 | 3 | - | 1.6 |
| 8 | 70 | 4×11 | 8×11 | 2 | - | 2.6 |
| 9 | 76 | 4×11 | 8×11 | 2 | - | 2.8 |
| R28 button bit | ||||||
| Bit Dia. | Buttons and Size (mm) | Flushing Hole | Weight | |||
| mm | Front | Gauge | Front | Side | kg | |
| 1 | 37 | 2×7 | 5×9 | 1 | 1 | 0.5 |
| 2 | 38 | 2×7 | 5×9 | 1 | 1 | 0.6 |
| 3 | 41 | 2×8 | 5×9 | 1 | 1 | 0.7 |
| 4 | 43 | 2×9 | 5×9 | 1 | 2 | 0.8 |
| 5 | 45 | 2×9 | 5×10 | 1 | 2 | 0.9 |
| 6 | 48 | 2×9 | 5×11 | 1 | 2 | 1 |
Company Profile:
KSQ Technologies (Beijing) Co. Ltd. is a company that shall cater to the needs of the construction and mining industries, with consideration on providing solutions to the following unique problems:
- Hazardous environment
- Acts, regulations, and other government guidelines that has to be followed
- Significant differences in the way people work, mostly due o physical constraints
- Avoiding downtime on major equipment which can cost tens of thousands of dollars per hour. The best solution with the most reasonable cost is a significant driver.
