Anchor bolt

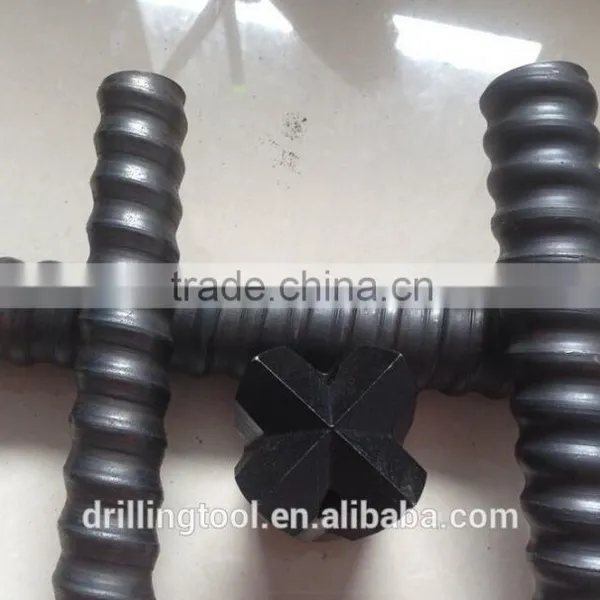

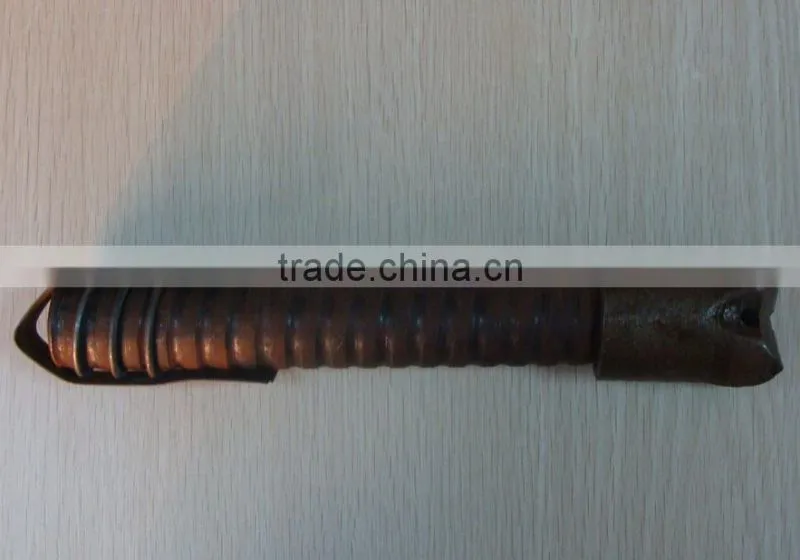

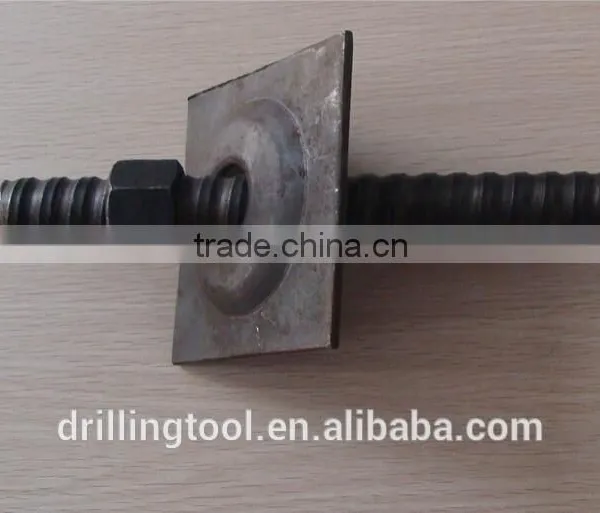

Anchor bolt means a rod that transfers the structures or geotechnical load to a stable rock
formations, it consists of rod, drill bit, coupling, plate, grouting stopper and nut. It has been
widely used in tunnling, mining, slope stabilization, tunneldiseases treatment and roof supporting

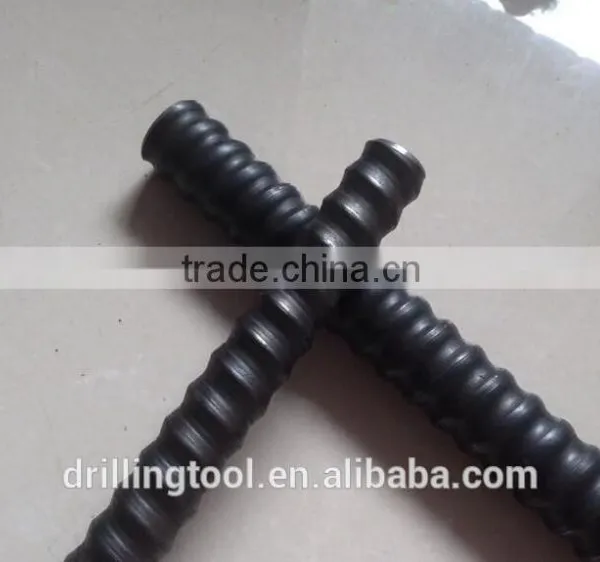

of undergroundworks. It is for loose ground(clay, sand friable etc.) Hollow anchor rod is made of
seamless tube with high strength.
Features of hollow grounting anchor bolt
• Particularly suitable for difficult ground conditions.
• A high rate of installation since drilling, placing and grouting can be performed in one single operation.
• Self drilling system eliminates the requirement for a cased borehole.
• Installation with simultaneous drilling and grouting possible.
• Easy installation in all directions, also upwards.
• Suitable for working in limited space, height and in areas of difficult access.
• Simple post grouting system. • Hot-dipped galvanizing for corrosion protection
Applications in Tunneling & Ground Engineering
• Radial bolting
• Slope stabilization
• Forepoling
• Micro injection pile
• Face stabilization
• Temporary support anchor
• Portal preparation
• Soil nailing
Self-Drilling Anchor Bolt Description
| ||||||||
|
R25N |
R32N |
R32S |
R38N |
R51L |
R51N |
T76N |
T76S |
Outside Diameter (mm) |
25 |
32 |
32 |
38 |
51 |
51 |
76 |
76 |
Internal Diameter (mm) |
14 |
19 |
16 |
19 |
36 |
33 |
52 |
45 |
Ultimate Load Capacity (kN) |
200 |
280 |
360 |
500 |
550 |
800 |
1600 |
1900 |
Yield Load Capacity (kN) |
150 |
230 |
280 |
400 |
450 |
630 |
1200 |
1500 |
Tensile Strength, Rm (N/mm2) |
800 |
800 |
800 |
800 |
800 |
800 |
800 |
800 |
Yield Strength, Rp0.2 (N/mm2) |
650 |
650 |
650 |
650 |
650 |
650 |
650 |
650 |
Weight (Kg/m) |
2.3 |
3.2 |
3.6 |
5.5 |
6.5 |
8.0 |
16.0 |
19.7 |
Steel Grade |
EN10083-1 (Alloy Structure Steel) |
|||||||
Compared to carbon steel, alloy structure steel has high anti-corrosion capacity and high mechanical. | ||||||||
