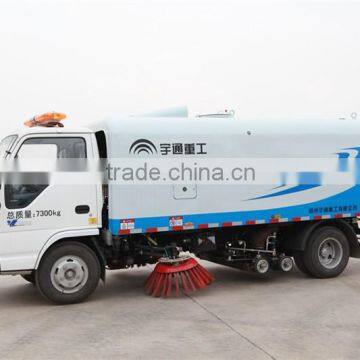

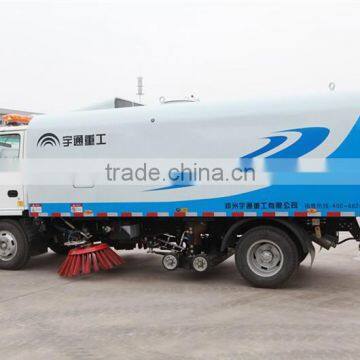

Help CenterHydralic Street Cleaning Truck
Related Products
-
Commercial Sweeping TruckNegotiableMOQ: 1 Set -
China New 20 Cbm Garbage Truck ConstructionUS$ 50,360 - 122,120MOQ: 1 Unit
-
China Hot Sale 4x2 New 9 Cbm Garbage Collector TruckUS$ 60,340 - 105,540MOQ: 1 Unit
-
China 4x2 6m3 Capacity Small Garbage Compactor TruckUS$ 23,411 - 33,660MOQ: 1 Unit
-
4x2 8 Ton Compression Refuse Collector TruckUS$ 60,250 - 91,000MOQ: 1 Unit
Work performance |
High-pressure cleaning |
Cleaning width |
M |
3.1 |
||
Washing speed |
km/h |
3~15 |
||||
Water pressure for washing |
MPa |
10 |
||||
Water volume for washing |
L/min |
80 |
||||
Maximum suction granularity |
mm |
110 |
||||
Sweeping work |
Sweeping width |
M |
3 |
|||
Operating speed |
km/h |
3~20 |
||||
Maximum sweeping capacity |
m2/h |
60000 |
||||
Discharge angle |
° |
≥45 |
||||
Maximum volume of clean water tank |
L |
4500 |
||||
Maximum volume of sewage tank |
L |
2800 |
||||
Driving performance |
Maximum speed (full load) |
km/h |
100 |
|||
Maximum climbing angle |
% |
30 |
||||
Brake distance (full load, 30 km/h) |
M |
≤10 |
||||
Minimum Turning Diameter |
M |
13.6 |
||||
Fuel consumption |
Fuel consumption for driving |
L/10000m2 |
12.8 |
|||
|
Fuel consumption for work (Average sweeping speed 8km/h) |
L/h |
6.5 |
||||
L/10000m2 |
2.4 |
|||||
Mass parameters |
Complete Vehicle Kerb Mass |
kg |
5670 |
|||
Max. gross mass |
kg |
7300 |
||||
Structure dimension |
Appearance dimension (length*width*height) |
mm |
6530*2050*2470 |
|||
Wheel Tread |
mm |
3815 |
||||
Wheel Tread |
Front wheel |
mm |
1504 |
|||
Rear wheel |
mm |
1425 |
||||
Minimum Ground Clearance |
mm |
140 |
||||
1. It is capable for two main functions involving cleaning pavement and sweeping pavement, which can be used as the cleaning truck and the sweeper truck simultaneosuly. During the cleaning operation, it is operated in high-pressure, low flow mode, characterized by dynamic decontamination, highly efficient and water-saving, which is particularly suitable for the cleaning.
2. The truck adopts the state-of-art technologies inclduing touch screen control, LCD monitor system, and GPS position services, etc., while the key parts are made of well-known brands at home and abroad.
3. Owing to the application of ISUZU auxiliary engine, the diesel burning is more adequate, which is not only fuel efficient, but also superior emissions, as well as truly embody the design concept of fuel-efficient and environmentally friendly.
4. The pumping and suction system has been optimized by the academician workstation, thereby enabling reasonable system matching and the industry's lowest power consumption.
5. It has widely used the finite element analysis software in design, which not only allows the components meet the requirements of stiffness and strength, but also greatly reduces the dead weight.
6. High Standard Quality Control: in compliance with the national military standard GJB9001A-2001 quality system certification; and the ISO9001 quality system; as well as the ISO14001 environmental management system.
