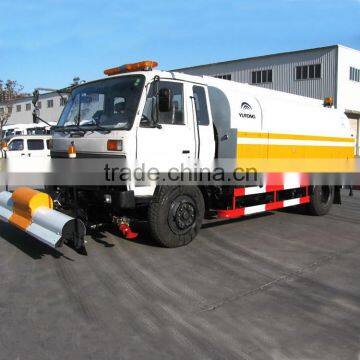

Road Cleaning Truck
Major technical parameters of YTZ5160GQX20E
Chassis model |
EQ1168KJ |
Engine model |
ISDe180 30 |
Engine power (kW) |
132 |
Emission standard |
National III |
Overall dimension (length X width X height) (mm) |
8890X2480X3090 |
Wheelbase (mm) |
4500 |
Kerb mass (kg) |
7600 |
Gross mass (kg) |
16000 |
Size of tank (long shaft X short shaft X length) (mm) |
2180X1450X4000 |
Maximum travel speed (km/h) |
90 |
Cleaning width (m) |
2.5-3.5 |
Cleaning speed (km/h) |
3-20 |
Maximum cleaning pressure (MPa) |
13 |
Volume of cleaning water (L/min) |
153 |
Effective volume/rated volume of water tank (L) |
10000 |
Spray head (m) |
90 |
Spray width (m) |
≥24 |
Spraying water volume (L) |
400-800 |
Range of water gun (m) |
≥36 |
Main configurations of YTZ5160GQX20E
Chassis model/manufacture |
EQ1168KJ/Dongfeng Automobile Co., Ltd. |
Maximum gross mass of chassis |
16000 |
Cab/color/air conditioner |
Cab-over-engine, equipped with sleeping berth, turnover cab/white cab/equipped with air conditioner |
Wheelbase (mm) |
4500 |
Engine model |
ISDe180 30 |
Engine power (kW) |
132 |
Transmission box |
Shanxi Datong DC6J85TZ |
Steering mode |
Steering wheel (power-assisted) |
Tyre |
10.00-20 |
Front and rear axles |
Dongfeng axles |
Auxiliary engine |
Jiangling JE493 engine |
High-pressure water pump |
Italy KF36G (with rated pressure of 13MPa and rated flow of 153L/min) |
Low pressure water pump |
Hangzhou Weilong 80QZF-60/90N (with flow of 1000L/min and head of 90m) |
Control valve |
Hydraulic valve manifolds (with pressure of 16Mpa and flow of 30L/min) |
Performance characteristics of YTZ5160GQX20E
1) It has separated high-pressure and low-pressure water systems. Auxiliary engine is used to drive the high pressure water pumps and the working device of hydraulic system and the chassis engine is used to drive low pressure water pumps. High pressure cleaning speed can be controlled.
2) A low water level sensing alarm system is equipped for the water tank. It will automatically give an alarm when there is a little water in the tank, so as to prevent the water pump from being damaged due to water shortage.
3) The inner wall of the water tank adopts advanced technology and anti-corrosive paint which can avoid the corrosion of water to the tank body. Stainless steel water tank is optional.
4) With centralized control of electricity, liquid and gas in the cab, the vehicle is provided with a good human-machine interface which is easy and flexible to operate.
5) High-pressure water pumps are internationally renowned brands which have reliable performance and long service life and can guarantee the cleaning effect; due to imported spray nozzles, the jet flow is stable and the pressure loss is small.
6) The cleaning width of water-spraying frame is 2.5m~3.5m and it can be controlled at will. When the telescopic spray bar is withdrawn, it can realize reinforced cleaning with dual water flow.
7) Spray nozzles in left and right corners are suitable for efficiently cleaning the highway pavement, curbs and double yellow lines and they can save water;
8) High-pressure water gun is used to clean road signs, advertising boards, etc.;
9) The spraying system can reduce dust and regulate air humidity;
10) Low water system with sprinklers and washing nozzles can provide large amount of water for flushing and can spray water to decrease the temperature of the road.
11) A pressure water outlet port for emergency fire hose is reserved in the system, which can be used as a narrow passage for fire protection in an emergency. In addition, this water outlet port can be used in remote irrigation.
As a specialized supplier of construction machinery of PLA Construction Engineering Corps, Yutong Heavy Industries has made outstanding contributions to the national defense construction, supplied thousands of various equipment like high-speed bulldozers and loaders for this Corps, and been highly appraised by the army due to the high quality of its products in the past 60 years.
Welcome to consult us any question you have !
