YUTONG Big Mining Water Sprinkler Truck For Sale
Main Technical Parameters of Mining Water Sprinkler Truck
Overall Dimension of mining sprinkler water truck(L×W×H) |
9050×3200×4220mm |
Wheelbase of mining sprinkler water truck |
3600 mm/1500 mm |
Wheel track of front wheel |
2400 mm |
Wheel track of rear wheel |
2264 mm |
Capacity of water tank |
36m3 |
Kerb mass of entire vehicle |
24000 kg |
Rated lad capacity of mining sprinkler water truck |
36t |
Maximum speed of mining sprinkler water truck |
49 km/h |
Maximum gradeability |
≥30% |
Maximum turning diameter of mining sprinkler water truck |
≤21 mm |
Minimum ground clearance of mining sprinkler water truck |
380 mm |
Approach angle / departure angle of mining sprinkler water truck |
27°/37° |
Sprinkler head of mining sprinkler water truck |
Operated by electronic control in the cab |
Automatic-flow of mining sprinkler water truck |
A automatic-flow device is equipped, which is controlled in the cab |
Sprinkling distance of sprinkler gun |
≥30m |
Sprinkling height of sprinkler gun |
≥15m |
Sprinkling width of sprinkler gun |
≥14m |
Engine model of mining sprinkler water truck |
WD12.375/YC6M375-20 |
Rated power of engine (kW/hp) |
276/375 |
Rated power of engine (rpm) |
2200 |
Torque of mining sprinkler water truck (N.m) |
1500(1300~1600rpm) |
Air intake way of mining sprinkler water truck |
Three-level oil filter, combined type air filter and turbo charger |
Clutch of mining sprinkler water truck |
Diaphragm spring 430 |
Gearbox of mining sprinkler water truck |
9JSD180 |
Rear axle of mining sprinkler water truck |
Special axle for 13t-level enhanced type mining truck |
Middle and rear axles of mining sprinkler water truck (t) |
Special axle for 25t-level enhanced type mining truck |
Front suspension of mining sprinkler water truck |
Enhanced longitudinal-installed leaf spring, bi-directional telescopic shock absorber |
Rear suspension of mining sprinkler water truck |
Enhanced type balanced suspension |

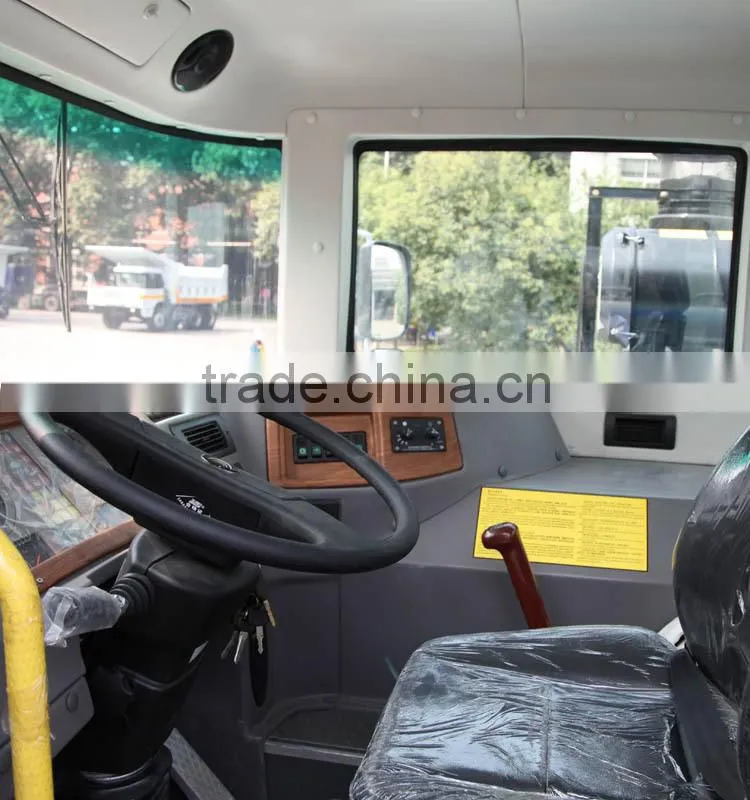

Cab of mining sprinkler water truck |
Bias, turnover, suspended and anti-rollover cab |
Tire of mining sprinkler water truck |
14.00-24 24PR |
Service brake of mining sprinkler water truck |
Dual-circuit brake |
Parking brake of mining sprinkler water truck |
Air break breaking by spring energy storage chamber |
Auxiliary braking of mining sprinkler water truck |
Engine exhaust brake |
|
|
Performance Characteristics of Mining Water Sprinkler Truck
1.Economic and reduced roundtrip driving: the water tank of mining sprinkler water truck can contain 36 m3 of water, providing longer sprinkling distance, so as to prevent wasting the expensive fuel in the frequent roundtrip for adding water. |
| 2.Mature chassis and stable and reliable technology: The mining sprinkler water truck adopts mature and stable YT3621 mining dump truck chassis produced by Yutong Heavy Industries. 2000 vehicles have been sold out since the vehicle enters into the market from 2010, due to its good performance, low failure rate and adequate spare parts. |
| 3.onvenient operation, various functions and wide usage: driver can control the sprinkling action in the cab of mining sprinkler water truck. The sprinkler heads can be controlled separately and can sprinkle water leftward and rightward, in order to prevent the water from being sprinkled to the vehicles passing by and pedestrians and save water. |
| 4.Mining sprinkler water truck is equipped with high-pressure sprinkler heads, high pressure fire interface, fire hose, washing gun, etc, so it can also be used in interior fire fighting, outdoor fire extinguishing, etc besides ordinary sprinkling operation. |
| 5. Mining sprinkler water truck is equipped with Weichai Power WD12.375 engine (standard). Xi’an Cummins ISME385 engine is optional, in order to meet your requirements on parts. |
|
|
|
|
|
|
|
|
|
|
|
