YUTONG Reasonable Price OF Road SweeperTruck
Main Technical Parameters of Road Sweeper Truck
Item |
Parameter |
|
1. Dimension parameters | ||
Overall dimension (L × W × H) |
5650×2000×2350mm |
|
Front suspension |
1015 mm |
|
Rear suspension |
1275 mm |
|
Angle of approach |
24° |
|
Angle of departure |
25° |
|
Minimum ground clearance |
190 mm |
|
Volume of garbage compartment |
5 m3 |
|
Volume of water tank |
1100 L |
|
2. Mass parameters | ||
Kerb mass (kg) |
4420kg |
|
Mass of front axle (no load) |
1800kg |
|
Mass of rear axle (no load) |
2620kg |
|
Mass of front axle (full load) |
1920kg |
|
Mass of rear axle (full load) |
3380kg |
|
Max. gross mass |
5300 kg (Including two people) |
|
3. Performance Parameters | ||
Sweeping width |
2.5-3.2m |
|
Operating speed |
3-15km/h |
|
Maximum vehicle speed |
98 km/h |
|
Tipping angle for garbage |
60° |
|
Maximum cleaning efficiency |
96% |
|
Operating fuel-consumption (8Km/h) |
6.8L/h |
|
Driving fuel-consumption |
10.6L/100km |
|
Chassis model |
QL10508HARY (Qingling Brand) |
Model of chassis-mounted engine |
4JB1–TC1 |
Maximum power |
70kW /3400 rpm |
Max. torque |
206N.m/1700rpm |
Model |
In-line, four-stroke, water cooling, electronic controlled VE pump, turbocharged |
Model of auxiliary engine |
JE493G3-201 |
Maximum power |
57kW /3600 rpm |
|
|
|
|
|
Performance Characteristics of Road SweeperTruck
|

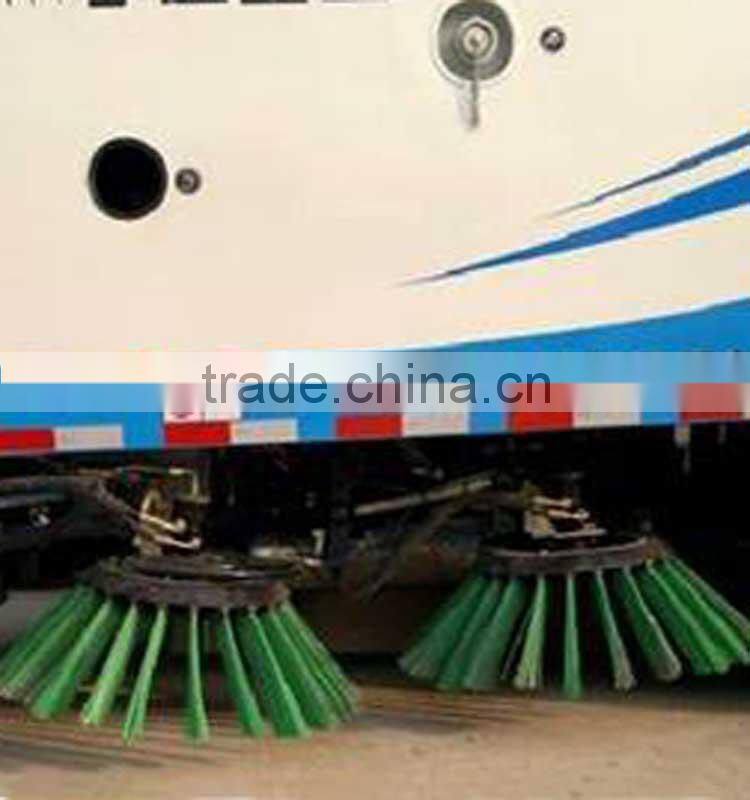

1.The road sweeper truck adopts a technological structure: four sweeping brushes are mounted on left and right sides and a wide suction nozzle is mounted in the middle.
|

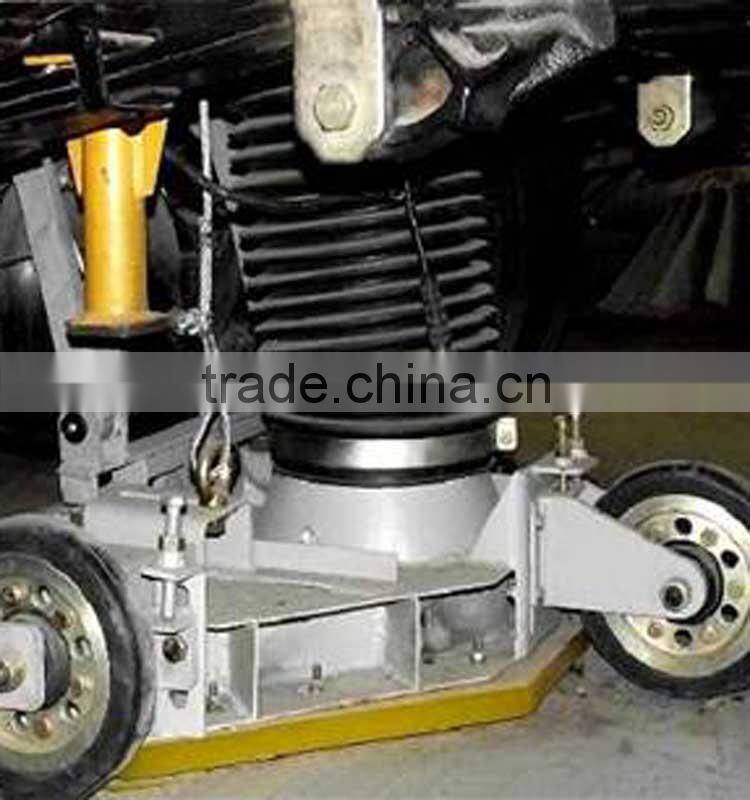

2. Sweeping brushes of the road sweeper truck are equipped with automatic avoidance device. Theroad sweepertruck is featured by centralized operating devices, constant space between suction nozzle and ground, etc. |
3. Both of water tank and dustbin are made of 304 stainless steel materials. The water tank, with double stainless steel structure, is firm and durable and has strong corrosion resistance! |
4. A low water level sensing alarm system is equipped within the water tank. It will automatically give an alarm when there is no water in the tank, so as to prevent the water pump from being damaged due to water shortage . |
5. The road sweeper truck selects and uses "imported hydraulic block". The hydraulic system is further optimized. As for the heat dissipation of hydraulic oil, water cooling system is equipped, which can fully guarantee the normal operation of the truck in the hot summer . |
| 6.The road sweepertruck uses Qingling chassis; the cab is equipped with air conditioner; turbocharged and inter-cooled engine; low fuel consumption, powerful power, good handling, comfortable and luxurious; the cab is wide and bright and has wide field of view! |

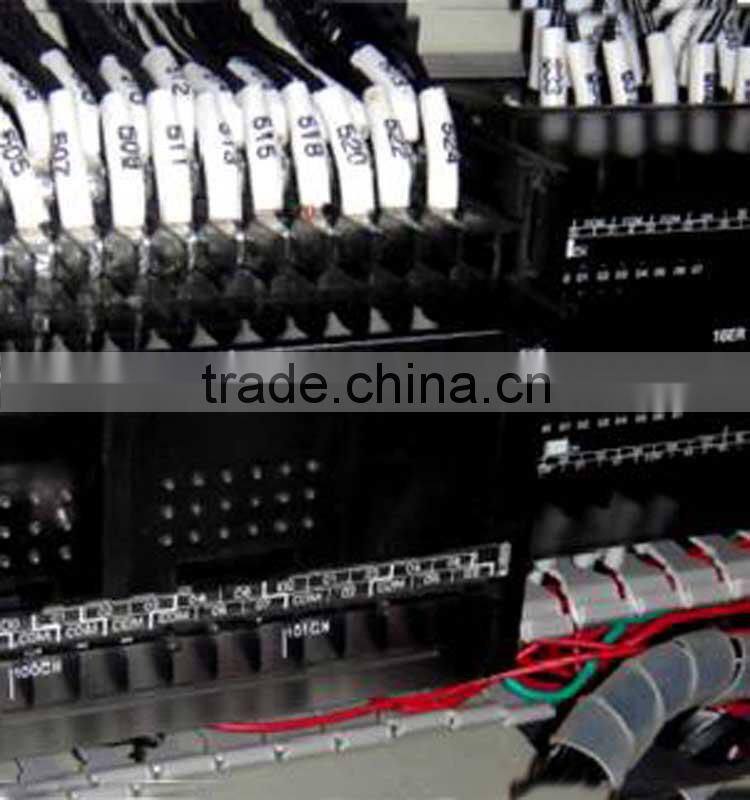

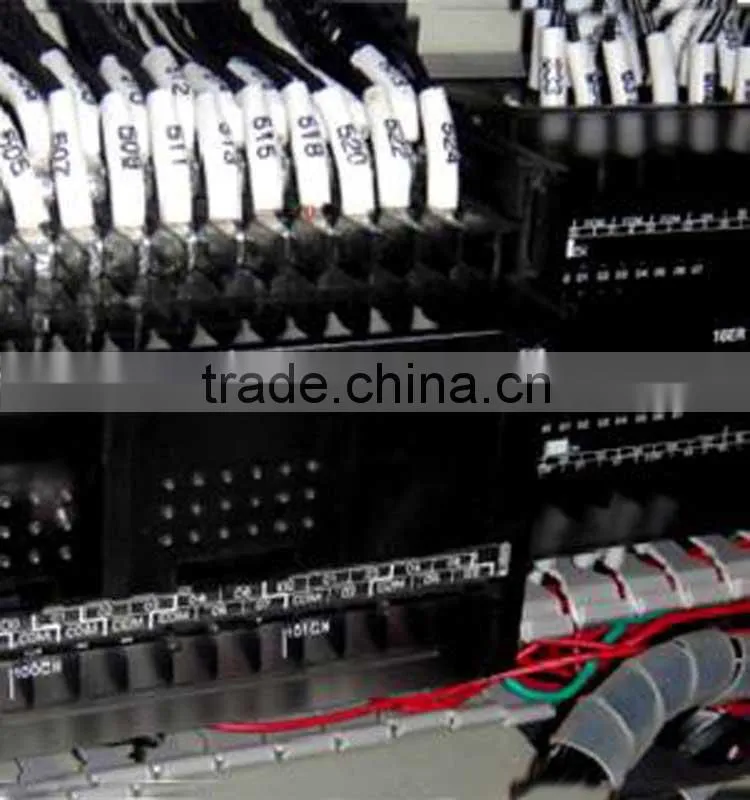

| 7. Centralized electrical control box oftheroad sweeper truck is used to control the truck and it can be controlled by one key in the cab, with high level of automation; a voice alarm device is equipped to accurately broadcast a variety of safety tips and failures; meanwhile, through working camera, optional GPS satellite positioning, reversing radar and other devices, operator can conduct real-time monitoring on the truck! |
|
|
|
|
|
|
|
|
|
|
|
