Home > Industrial Equipment & Components > Cleaning Machine > Floor Sweeper > Road Sweeper

Road Sweeper

Name: Road Sweeper
Brand: Yutong
SKU: 119095147
Availability: InStock

US$ 60,000 - 100,000 MOQ: 1 Set

Key Specifications

Get Latest Price

Condition:

New

Place of Origin:

Henan, China

Brand Name:

Yutong

Contact Supplier Request Quote Chat Now

Zhengzhou Yutong Heavy Industries Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai&Tianjin&Qingdao

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Condition New

Place of Origin Henan, China

Brand Name Yutong

Model Number YTZ5070TXS70E/F

Dimension(L*W*H) 6450x2050x2470 mm

Weight 16t

Certification SGS, ISO, CE

Warranty one year

After-sales Service Provided Overseas service center available

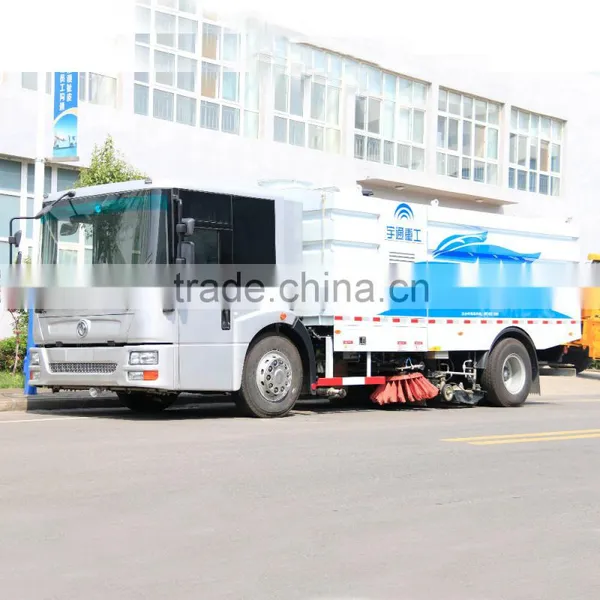

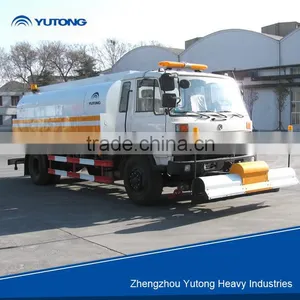

Road sweeper truck

As an environmental sanitation equipment, the road sweeper integrates road sweeping, garbage collection and garbage transportation into one machine, which is widely used for sweeping arterial highway, airfield pavement, uptown and park, etc.

Product Description

Major Technical Parameters of YTZ5050TSL70E Sweeper Truck

Work performance	High-pressure cleaning	Cleaning width		m	3.1
		Washing speed		km/h	3~15
		Water pressure for washing		mpa	10
		Water volume for washing		L/min	80
		Sweeping width for kerb		mm	150
		Maximum suction granularity		mm	110
	Sweeping work	Sweeping width		m	3
		Operating speed		km/h	3~20
		Maximum sweeping capacity		m2/h	60000
		Discharge angle		°	≥45
Maximum volume of clean water tank				L	4500
Maximum volume of sewage tank				L	2800
Driving performance		Maximum speed (full load)		km/h	100
		Maximum climbing angle		%	30
		Brake distance (full load, 30 km/h)		m	≤10
		Minimum Turning Diameter		m	13.6
Fuel consumption		Fuel consumption for driving		L/10000 m2	12.8
		Fuel consumption for work (Average sweeping speed 8km/h)		L/h	6.5
				L/10000 m2	2.4
Mass parameters		Complete Vehicle Kerb Mass		kg	5670
		Max. gross mass		kg	7300
Structure dimension		Appearance dimension (length x width x height)		mm	6450×2050×2470(YTZ5070TXS70E ) 6530×2050×2470 (YTZ5070TXS70F )
		Wheel Tread		mm	3815
		Wheel Tread	Front wheel	mm	1504
			Rear wheel	mm	1425
		Approach angle		(°)	24
		Departure angle		(°)	22
		Minimum ground clearance		mm	190
Major components			Gear pump, gerotor motor, hydraulic cylinder
Oil pressure relief		Mpa	14
Hydraulic oil capacity		L	60
Control mode			Logic programme, alarm, etc
System voltage			12V
Working device system voltage			12V
Battery model			12V-70A.H
High pressure water pump			Type	Plunger type
			Model	Italy KEB36
			Pressure	10Mpa
			Rotate speed	1150r/min
Water Valve			Type	Hydraulic control high pressure ball valve
			Pressure	10Mpa
Nozzle			Type	High pressure type
Water filter			type	Strainer type
Quantity of nozzle				34

Performance Characteristics of TZ5050TSL70E Sweeper Truck

a. It adopts a technological structure: four sweeping brushes are mounted on left and right sides and a wide suction nozzle is mounted in the middle. Sweeping brushes are equipped with automatic avoidance device. The truck is featured by centralized operating devices, constant space between suction nozzle and ground, etc;

b. Both of water tank and dustbin are made of 304 stainless steel materials. The water tank, with double stainless steel structure, is firm and durable and has strong corrosion resistance!

c. A low water level sensing alarm system is equipped within the water tank. It will automatically give an alarm when there is no water in the tank, so as to prevent the water pump from being damaged due to water shortage;

d. The truck selects and uses "imported hydraulic block". The hydraulic system is further optimized. As for the heat dissipation of hydraulic oil, water cooling system is equipped, which can fully guarantee the normal operation of the truck in the hot summer;

e. The truck uses Qingling chassis; the cab is equipped with air conditioner; turbocharged and inter-cooled engine; low fuel consumption, powerful power, good handling, comfortable and luxurious; the cab is wide and bright and has wide field of view!

f. Centralized electrical control box is used to control the truck and it can be controlled by one key in the cab, with high level of automation; a voice alarm device is equipped to accurately broadcast a variety of safety tips and failures; meanwhile, through working camera, optional GPS satellite positioning, reversing radar and other devices, operator can conduct real-time monitoring on the truck!
