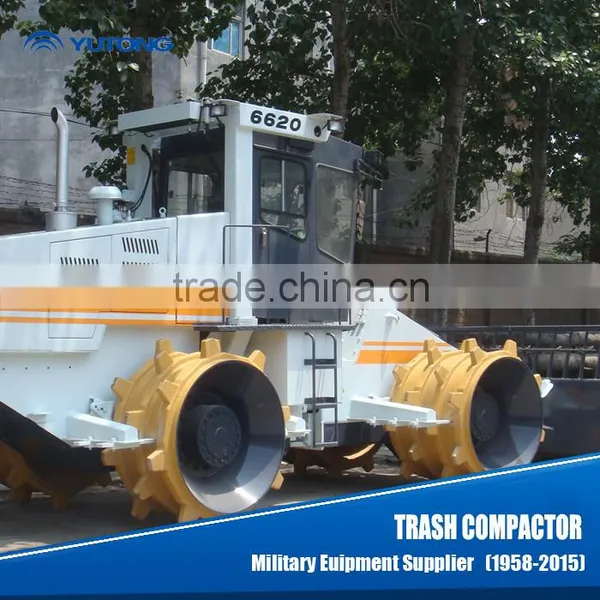

Hot Sale China Military Quality New Trash Compactor
Main Technical Parameters of Landfill Compactor
Overall dimension (mm) |
7275×3094×3710 (Transportation height: 3510) |
Engine model |
SC8D180.1G2B1 |
Rated Power of Engine (Kw) |
132 |
Rated speed of engine (rpm) |
2200 |
Operating mass (kg) |
20000 |
Rolling width (mm) |
2986 |
Shovel height (mm) |
1685 |
Shovel width (mm) |
3094 |
Shovel hoisting height (mm) |
1000 |
Shovel ground-cutting depth (mm) |
150 |
Maximum grade ability |
100 |
Ground clearance (mm) |
420 |
Maximum travel speed (km/h) |
11 |
|
|
Performance Characteristics of the landfill compactor
| 1.The landfill compactor adopts hydromechanical transmission, front and rear four-wheel drive and four-wheel braking. |
| 2. The landfill compactor adopts military quality hydraulic torque converter and power-shift gearbox; the clutch friction plate is installed externally, which is easy for maintenance; two forward gears and two backward gears are suitable for the harsh conditions in landfill; meanwhile, the gearbox can automatically realize spontaneous out-of-gear when braking, and can automatically connect the gear when releasing the braking, so as to avoid damaging transmission system during braking |
| 3. The hydraulic system of the whole machine adopts German DIN standards. Its "Cone-Ο" double seal has good leakproofness and strong anti-leakage. |
| 4.Firm vehicle frame of the landfill compactor with inclosed, flat-bottom and box-shaped structure can reduce driving resistance, completely eradicate fires and prevent garbage from entering into the cabin. |
| 5.The landfill compactor is equipped with an auxiliary disinfection spray system with the ability of drug-corrosion prevention. The spray dosage is adjustable. Meanwhile, it is equipped with electrical protection device for nozzle clogging. |
| 6. NO-Spin differential mechanisms (with automatic interlock) are equipped within the rear drive axles. |
| 7. The landfill compactor of the landfill compactor is equipped with an auxiliary disinfection spray system with the ability of drug-corrosion prevention. The spray dosage is adjustable. Meanwhile, it is equipped with electrical protection device for nozzle clogging; |
| 8. The cab of the landfill compactor is equipped with roll over protection structure (ROPS), becoming firm and safe. |
|
| Sanitation digital information management is a comprehensive application of computer technology, wireless network technology, GIS geographic information technology, GPS positioning technology, video surveillance technology, through the establishment of a unified management information system, to achieve the effect of environmental sanitation, environmental sanitation vehicles, sanitation, waste regulatory terminal disposal, as well as full control of the operating environment, capable of early detection of operational problems, a quick fix. |
|
"12380"Service after sale. We can offer: 1.After receiving the customer mobile, we will help customer solve problem through removing the resources of Yutong service and reply the customer clearly in one hours; 2: To improve the service quality all the time, in 2working days of the end of on-sit service, we will pay a return visit about the satisfaction of after sale service; 3: To comprehensive systematically and professionally maintenance and repair for the customer product, we will have 3 times On-Site Inspection forwardly in warranty period; 8:The service engineer will solve problem in 8 hours after getting to on-sit. If the problem is not solve ,the service engineer can not leave the on-sit; 0: To eliminate customer worries, from receiving order to product scrapping, Yutong will provide full reliance, seamless docking and service in the period of product using. |
|
|
|
|
|
Yutong Heavy Industry is China's top 500 enterprises Yutong Group's core subsidiary, is a leading supplier of specialized mining, infrastructure and sanitation machinery and equipment package of solutions. The company is the cradle of Chinese construction machinery design and manufacturing, since 1958, China's first hydraulic torque converter, the first power shift transmission, the first self-propelled scrapers, the first large horsepower tire type tractors, more than 30 "China's first" all born here! factory occupies 2102 acres, with more than 3,000 people, including more than 470 man-made construction machinery senior technical staff, and has academician workstation and provincial enterprise technology center. Yutong Heavy Industries as a quality supplier of PLA, every year a large loaders and bulldozers to the military. We also provide the United Nations had as loaders, bulldozers and wreckers, and obtained the creation of the United Nations awarded the Star of Science Award. Our company is China's first loader KD line exporter, currently this KD line services in Iran, the annual amount of 300 assembly, and its products can cover the Middle East, many countries such as: Saudi Arabia, Turkey and Azerbaijan. Also Our rotary drilling rig, successfully sold to the United States five devices, and job conditions in Alaska minus 50 degrees. Our product is in Africa an affirmative president of Nigeria, the African business people and our next president our photo equipment. Our sanitation garbage package of solutions and services in Ghana is the country for the African brothers to improve their living environment contribute our part. In South America, Cuba and Venezuela, we are the government's long-term strategy for its suppliers. Rotary Drilling Division I Participation in 2008 Olympic Games in the Bird's Nest construction work, and successfully laid the first pile. |
We are military equipment supplier, our original facotry is founded at 1958. Good quality and competitive price is our advantage.
For quality guarate, we give one year guarantee, and with 24hours response principle for better service. We have more than 30 agency all over the world, you can get the most convenient service by nearest agency.
We accept T/T, L/C, D/P, D/A,even L/G. |
|
