Product Details
Drive Wheel: | 6x4 | Fuel: | Diesel | Transmission Type: | Manual |
Condition: | New | Sprinkling Area (m): | 12 - 16m | Emission Standard: | Euro 4 |
Tank Volume: | 15001 - 30000L | Dimensions (L x W x H) (mm): | 8160x2480x2710 | ||
Brand Name: | YUTONG | Place of Origin: | Henan, China | Model Number: | YTZ5160GSS20E |
Gross Vehicle Weight: | 16 | Certification: | CE, ISO, SGS | Warranty: | one year |
After-sales Service Provided: | Overseas service center available |
Product Description

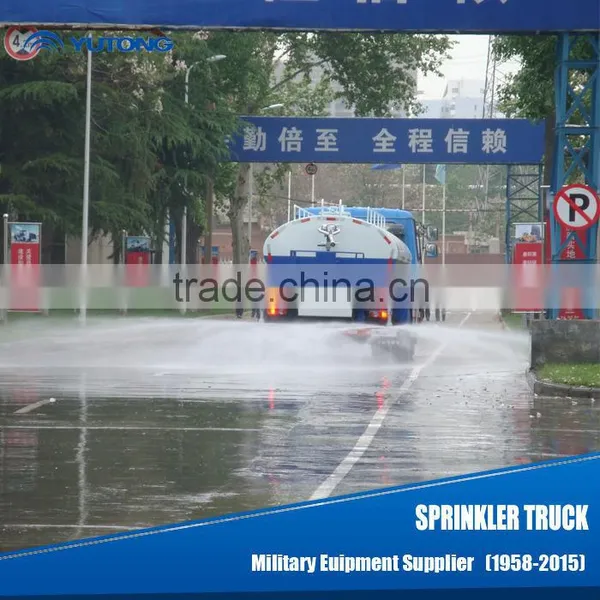

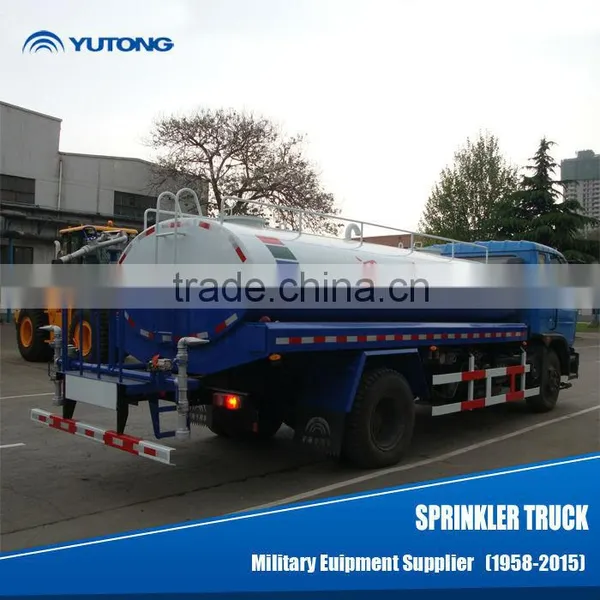

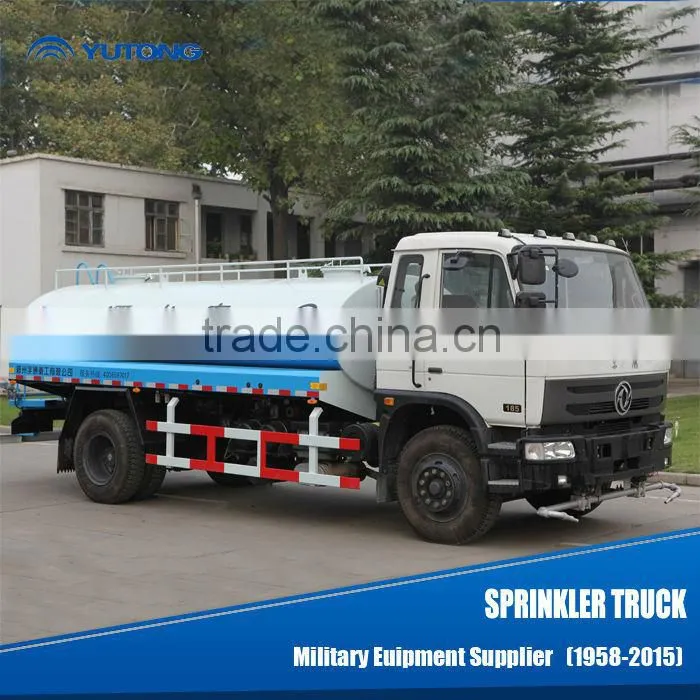

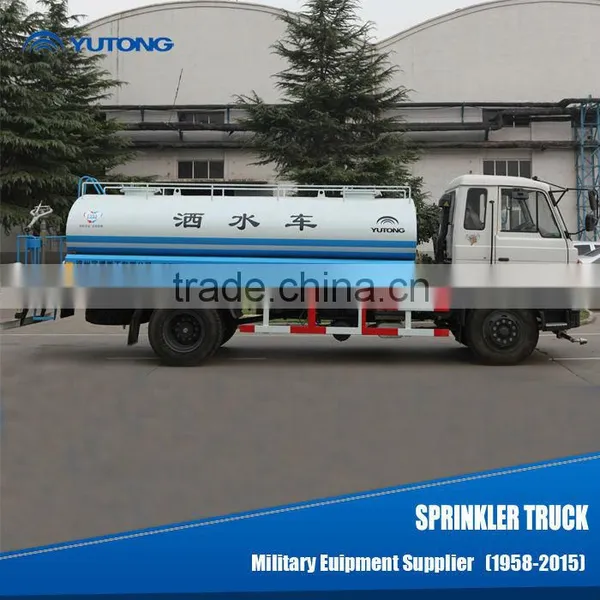

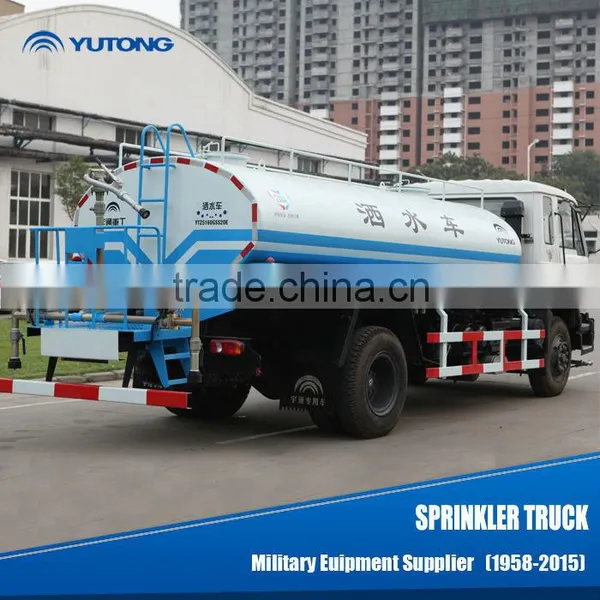

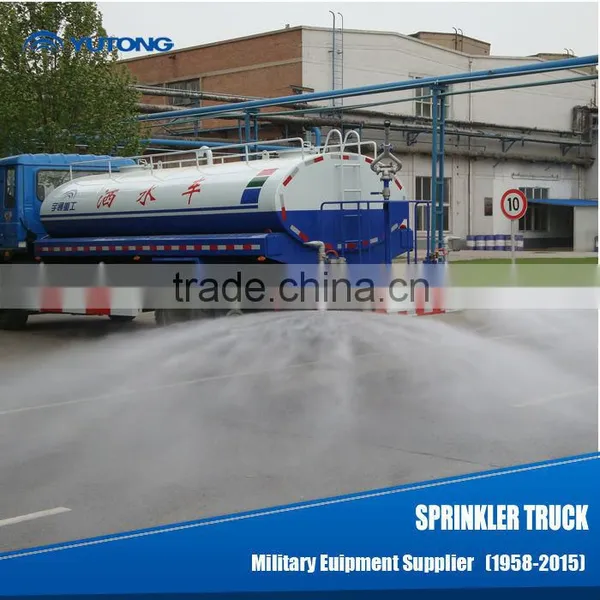

water spray truck
The materials of main part for the water tank truck is made of high strength Q345 steel; compared with the ordinary steel materials, its strength is increased by 60% compared with the conventional low-carbon steel under the same thickness.
1. The chassis is powered by the State Ⅲ engine manufactured by Cummins with the power ranging from 180-210 hp optional to the users, characterized by strong power, high reliability, and available to meet the demands of different users; Moreover, it is featured by low engine fuel consumption, energy conservation and environmental protection and superior economical efficiency.
2. The materials of main part for the water tank truck is made of high strength Q345 steel; compared with the ordinary steel materials, its strength is increased by 60% compared with the conventional low-carbon steel under the same thickness; and it can thinner the wall thickness under the same strength and increase the payload mass of the vehicle.
3. The pump mounted on the water sprinkler truck is characterized by heavy displacement, high lift, strong self-priming capability, high output power and high-pressure, etc.
4. The sprinkler system of the water tank truck is mounted with the manual valves and pneumatic valves, thus it is optional for manual and automatic control. The front flushing and rear spraying can be individually and automatically controlled, easy to operate.
parameter of Yutong Water Sprinkler Truck
Product model | YTZ5160GSS20E |
Chassis model | EQ1168KJ |
Chassis manufacturer | Dongfeng Automobile |
Dimension(mm) | 8160×2480×2710 |
Wheelbase (mm) | 4500 |
Front wheel tread(mm) | 1940 |
Rear wheel tread(mm) | 1860 |
Curb weight (kg) | 7355 |
Total mass (kg) | 16000 |
Max. speed (km/h) | 90 |
Max. gradeability (%) | 30 |
Minimum diameter of turning circle(m) | ≤18 |
Minimum ground clearance(m) | ≥248 |
Approach angle(°) | ≥25 |
Departure Angle(°) | ≥11 |
Effective volume of the tank(m3) | 8.85 |
Max. watering width(m) | ≥14 |
Longest range of spray gun(m) | ≥35 |
Watering speed(km/h) | 5-20 |
Lifting(m) | 90 |
Flow(m3/h) | 60 |
Water intake time(min) | <5 |
Vertical suction distance(m) | >6.5 |
- Can you give us a brief introduction to Yutong Company please?
We are military equipment supplier, our original facotry is founded at 1958. Good quality and competitive price is our advantage.
- How about the quality guarantee and after -sale service?
For quality guarate, we give one year guarantee, and with 24hours response principle for better service.
We have more than 30 agency all over the world, you can get the most convenient service by nearest agency.
- How about the payment terms?
We accept T/T, L/C, D/P, D/A,even L/G.
