Best 80 Ton Crawler Crane Price

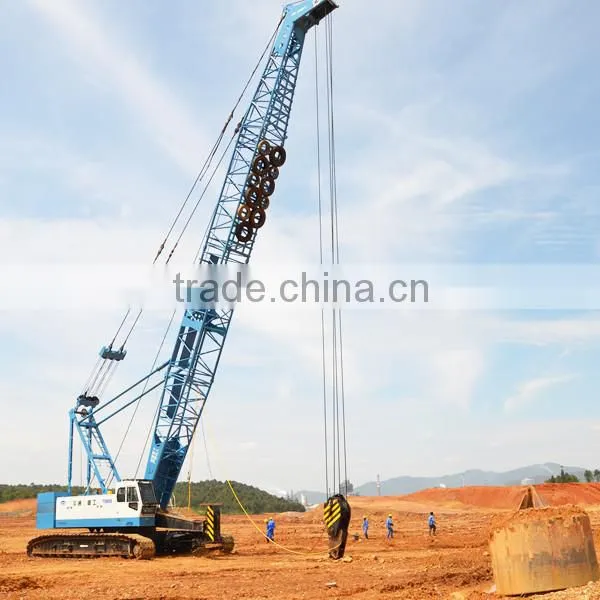

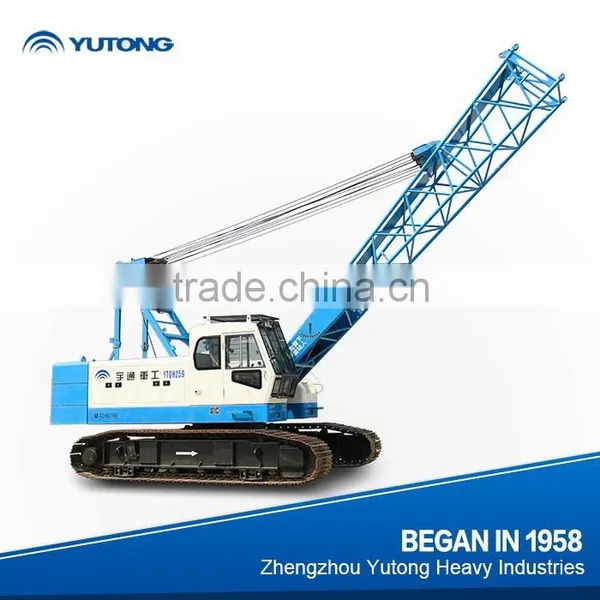

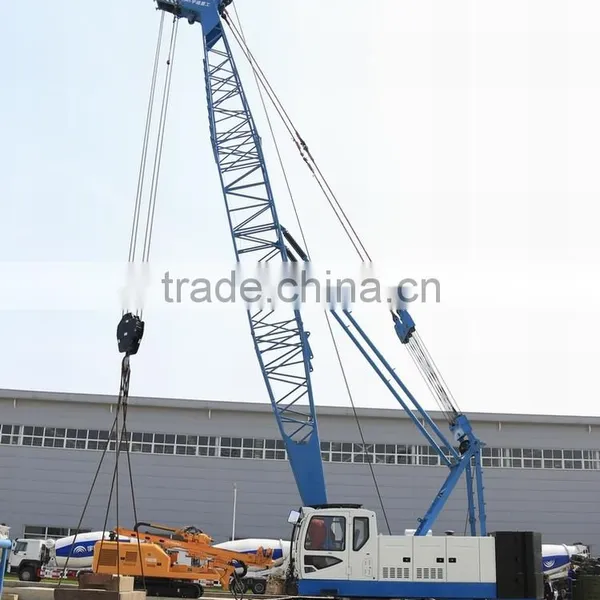

Hydraulic crawler crane is featured with high performance, high reliability and attractive appearance,
which has reached the advanced level among the like products in domestic market. It is widely used
in transportation, chemical industry, water conservancy project, etc.
Main Technical Parameters |
Unit |
YTQU80 |
Maximum hoisting capacity |
t |
80 |
Maximum hoisting torque |
t·m |
80×4.3 |
Length of main arm |
m |
13~58 |
Length of auxiliary arm |
m |
9~18 |
Total maximum length of main arm and auxiliary arm |
m |
49+18 |
Luffing angle of main arm |
° |
30-80 |
Rope lifting and lowering speed of main winch |
m/min |
0~79 |
Rope lifting and lowering speed of auxiliary winch |
m/min |
0~100 |
Rope lifting and lowering speed of hoist boom |
m/min |
0~79 |
Slewing speed |
r/min |
0~3.3 |
Travelling speed |
km/h |
0~1.1 |
Gradeability (with basic arm and keep the cab rearward) |
% |
30 |
Engine rated output power/rotation speed |
kw/r/min |
194kW/2200rpm |
|
Model of engine |
|
Cummins 6CTAA8.3-C260 |
Total weight (with basic arm and largest hoisting hook) |
t |
84 |
Ground pressure of crawler (with basic arm) |
Mpa |
0.08 |
Counterweight mass |
t |
25 |
Crawler gauge |
mm |
3390~4900 |
Wheel track of crawler |
mm |
5470 |
Width of crawler |
mm |
850 |
Maximum transportation weight for a single piece |
t |
51.6 |
Maximum transportation dimensions for a single piece (length X width X height) |
mm |
8460×3390×3823 |
Performance characteristics of YTQU80
1. It adopts a high performance Cummins diesel engine, providing international warranty service. The
engine with engine power of 260 kw meets the emission standard of GB II and can provide a reliable,
economical and environment-friendly power source.
2. The retractable chassis structure improves the stability of chassis and at the same time will not influence
overall transportation. The working width reaches 4900 mm, and the stability of whole vehicle is good.
3. The built-in planet gear reductor and high torque running motor have a large driving force, strong
gradeability and high reliability.
4. The main winch has a high speed free lowering function. Variable motor drive is used, which can not
only provide high speed, but also can greatly improve the working efficiency.
5. The lifting and derricking winch mechanisms which are equipped with ratchet locking device guarantee
the safe and reliable positioning of boom.
6. For the boom that is formed by welding of high strength structural pipe, the boom head adopts nylon
pulley which has a good stiffness, light weight, and high carrying capacity.
7. The pilot controlled and load sensing hydraulic control system has high micro-motion performance,
high accuracy,
and convenient and agile operating performance.
8. The swing mechanism that has a controllable free slipping mechanism can be controlled stably without
impact.
As a specialized supplier of construction machinery of PLA Construction Engineering Corps, Yutong Heavy Industries has made outstanding contributions to the national defense construction, supplied thousands of various equipment like high-speed bulldozers and loaders for this Corps, and been highly appraised by the
army due to the high quality of its products in the past 60 years.
Manufacturing
Yutong Heavy Industries has more than 60 kinds of products that can be classified to such 5 categories as shoveling and transporting machinery, environmental protection equipment and environmental protection engineering, piling machinery, special purpose vehicle, construction hoisting machinery, with its business covering the roads, railways, hydraulic engineering, architectural engineering, coal mines, petroleum engineering, civil engineering, environmental protection.
R&D Center
Located in Zhengzhou City, Henan Province and occupying a land of four hundred sixty-five thousand square meters, the company has about 3500 employees including more than 470 construction technicians. It has its own academician working station and provincial corporate technical center so it has a powerful technical innovation and new product development ability.
