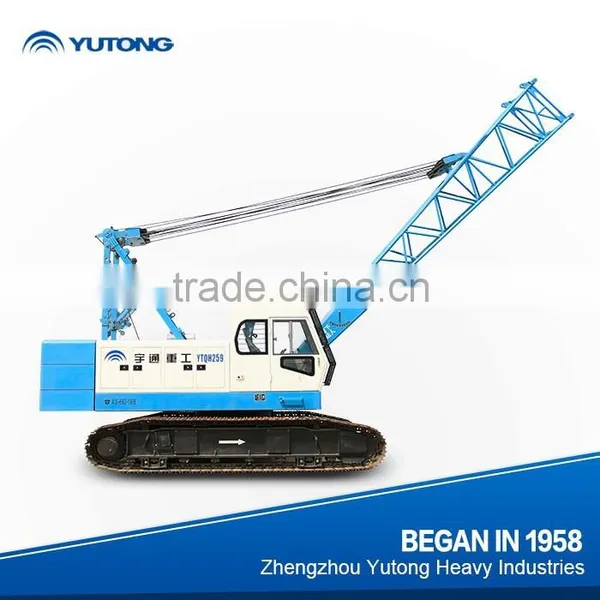

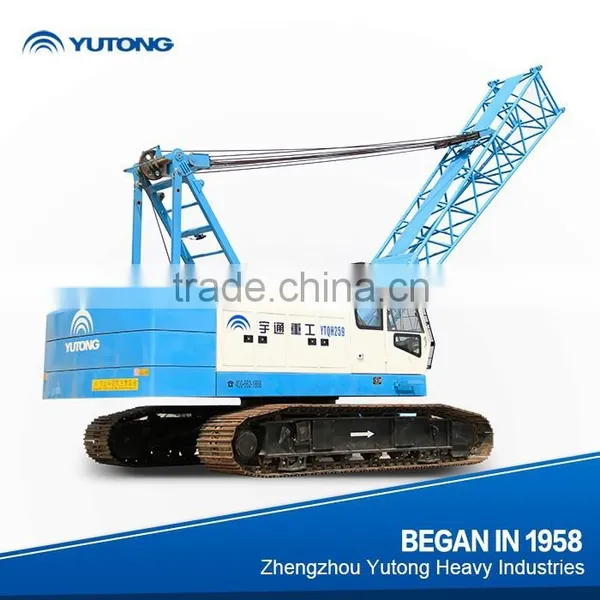

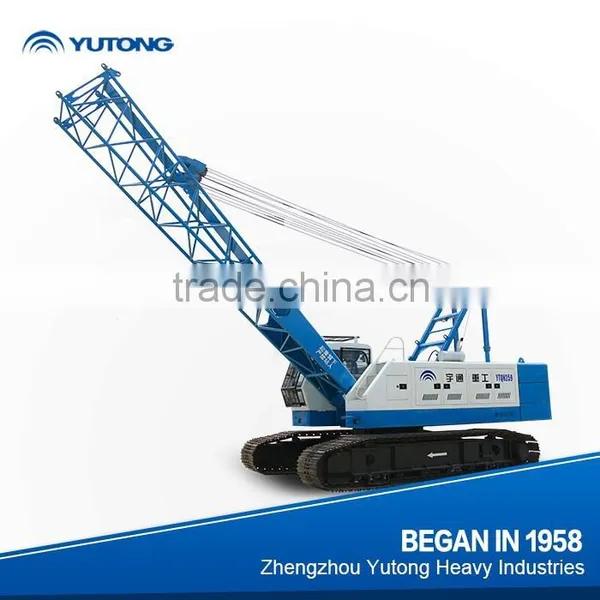

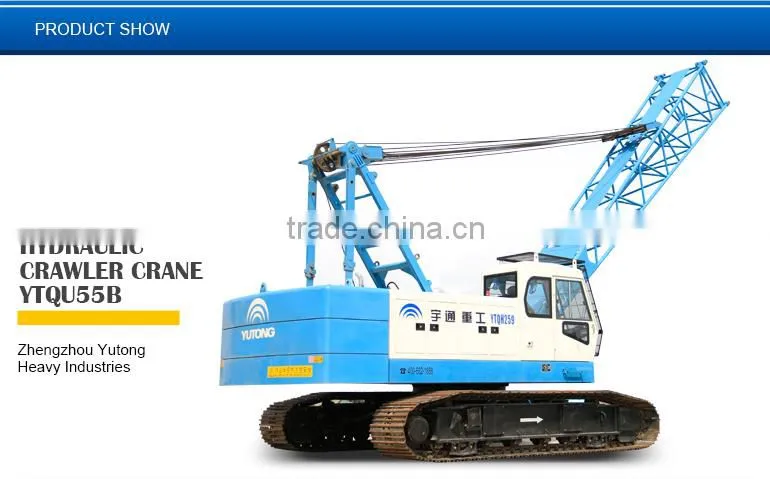

55t Hydraulic Crawler Crane Produced by Yutong
US$ 100,000 - 400,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Application:
construction
Rated Lifting Moment:
203.5
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai&Tianjin&Qingdao
Delivery Detail:
Delivery time depends on order quantity.
Related Products
Condition
New
Application
construction
Rated Lifting Moment
203.5
Max. Lifting Load
55t
Max. Lifting Height
26m
Span
25m
Place of Origin
Henan, China
Brand Name
YUTONG
Model Number
YTQU55B
Certification
CE&ISO
Warranty
Six Months
After-sales Service Provided
Overseas service center available
The brand concepts
of Full Care and Trust,
based on"customer-oriented
and employee-oriented"
management idea.
of Full Care and Trust,
based on"customer-oriented
and employee-oriented"
management idea.
Being one of the 50
largest engineering
machinery manufact
urersand in China.
largest engineering
machinery manufact
urersand in China.
More than 50 years
of military industry
experience and
technology.
of military industry
experience and
technology.
Yutong have successfully developed
a series of high value-added
products, such as rotary drilling
rig, longspiral drill rig,
crawler cranes, dynamic
compactor, and mining dump
truck, etc.
a series of high value-added
products, such as rotary drilling
rig, longspiral drill rig,
crawler cranes, dynamic
compactor, and mining dump
truck, etc.
The Environmental Protection
covering foundation construction,
resources exploitation,
environmental protection
and other fields.
covering foundation construction,
resources exploitation,
environmental protection
and other fields.
Tamping energy level (t.m) |
203.5 |
Allowable hammer weight (t) |
55 |
Chassis track (mm) |
5300 |
Chassis width (mm) |
3360 (4830) |
Creeper tread width (mm) |
800 |
Boom length (m) |
19-25 |
Maximum lifting height (m) |
25.8 |
Working radius (m) |
6.5-14.6 |
Lifting pulling force (t) |
14 |
Lifting speed (m/min) |
0-110 |
Gradeability (%) |
40% |
Traveling Speed (km/h) |
0-1.3 |
Rotating Speed (km/min) |
0-1.78 |
Operating Angle(°) |
30-80 |
Engine power (KW) |
132 |
Rated speed of engine (r/min) |
2000 |
Overall weight (t) |
52 |
Weight of balancing weight (t) |
17.5 |
Main machine weight (t) |
32 |
Main machine dimension (mm) |
7200×3360×3360 |
Grounding pressure |
0.069 |
1. Strong power system
Its hydraulic energy-saving technology significantly reduces the engine’s fuel consumption. Meanwhile, the hydraulic control is easy, flexible and efficient to operate and convenient to combine with the electrical control, which help to improve the automatic control level for the whole machine.
2. Strong power system
Hydraulic crawler type dynamic compaction machine adopts a 294 kilowatts Weichai diesel engine with strong power, which can meet National III Emission Standard. Meanwhile, it is equipped with a 132 kW high-power variable main pump with high transmission efficiency and two high-intensity main winches, which can effectively extend the working time and improve the working efficiency.
Its hydraulic energy-saving technology significantly reduces the engine’s fuel consumption. Meanwhile, the hydraulic control is easy, flexible and efficient to operate and convenient to combine with the electrical control, which help to improve the automatic control level for the whole machine.
2. Strong power system
Hydraulic crawler type dynamic compaction machine adopts a 294 kilowatts Weichai diesel engine with strong power, which can meet National III Emission Standard. Meanwhile, it is equipped with a 132 kW high-power variable main pump with high transmission efficiency and two high-intensity main winches, which can effectively extend the working time and improve the working efficiency.
3. Reinforced chassis mechanism
Hydraulic dynamic compaction adopts special reinforced chassis
mechanism with good stability during working; the transitions transport is
convenient and the transportation costs can be reduced.
4. Beautiful appearance and comfortable ride.
Hydraulic dynamic compaction has well-designed appearance and
modern shape; the cab, mounted with shock absorption device, has
broad vision and beautiful appearance. It is equipped with protection
net and pilot controlled system, the operation of which is easy and
flexible and can effectively relieve driver's fatigue; meanwhile, the cab
is equipped with damping seat, electric fan and heating equipment and
optionally provides MP3 player; the operation is comfortable and the
working environment is good.
Hydraulic dynamic compaction adopts special reinforced chassis
mechanism with good stability during working; the transitions transport is
convenient and the transportation costs can be reduced.
4. Beautiful appearance and comfortable ride.
Hydraulic dynamic compaction has well-designed appearance and
modern shape; the cab, mounted with shock absorption device, has
broad vision and beautiful appearance. It is equipped with protection
net and pilot controlled system, the operation of which is easy and
flexible and can effectively relieve driver's fatigue; meanwhile, the cab
is equipped with damping seat, electric fan and heating equipment and
optionally provides MP3 player; the operation is comfortable and the
working environment is good.
DETAIL ONE:
Hydraulic dynamic compaction adopts hydraulic drive system. With smaller overall size and largely decreased dead-weight, the compaction machine has smaller ground pressure and better passing ability.
Hydraulic dynamic compaction adopts hydraulic drive system. With smaller overall size and largely decreased dead-weight, the compaction machine has smaller ground pressure and better passing ability.
DETAIL TWO:
Dynamic compaction machine is equipped with multi-level safety protection, electric combination instrument, integrated control of engine data and automatic alarm.
Dynamic compaction machine is equipped with multi-level safety protection, electric combination instrument, integrated control of engine data and automatic alarm.
DETAIL THREE:
In order to ensure safe and reliable operation, the machine is equipped with slewing locking device for rotary table, anti-overturn device for cargo boom, over-winding prevention for winches, lifting limit micro-switch and other safety devices.
In order to ensure safe and reliable operation, the machine is equipped with slewing locking device for rotary table, anti-overturn device for cargo boom, over-winding prevention for winches, lifting limit micro-switch and other safety devices.
Zhengzhou Yutong Heavy Industries Co.,Ltd.(hereinafter referred to as"
Yutong Heavy Industries") is the core enterprise of Yutong Group, a profe-
ssional manufacturer integrating research and development, manufacturing
and sales service. Being one of the 50 largest engineering machinery ma-
nufacturers in China, with registered capital of 600 million and more than
3,000 employees.
Yutong Heavy Industries") is the core enterprise of Yutong Group, a profe-
ssional manufacturer integrating research and development, manufacturing
and sales service. Being one of the 50 largest engineering machinery ma-
nufacturers in China, with registered capital of 600 million and more than
3,000 employees.
Up to now, we have successfully developed a series of high value-added products, such as rotary drilling rig, long spiral drill rig, crawler cranes, dynamic compactor, and mining dump truck, etc. Currently, the Company covering foundation construction, resources exploitation, environmental protection and other fields.In overseas, the sales of high-tech and new, cutting-edge products represented by the multi-functional rotary drilling rig, new-generation oader and scraper is increasing rapidly, which has become a new highlight.
It possesses ISO9001:2000 Quality Management System Certification and ISO14001-2004 Environmental Management System Certification, etc.
ATTEND BUSINESS FORUM
LEADERS MET WITH ACCEPTANCE
MINING DUMP TRUCK MATCH
ENVIRONMENTAL AGREEMENT
AIGNED IN AUSTRIA
AIGNED IN AUSTRIA
Inspect vehicles before sale
Laser welding
Examine the metalic
elements
elements
SGS certification
Waterproof test
.
