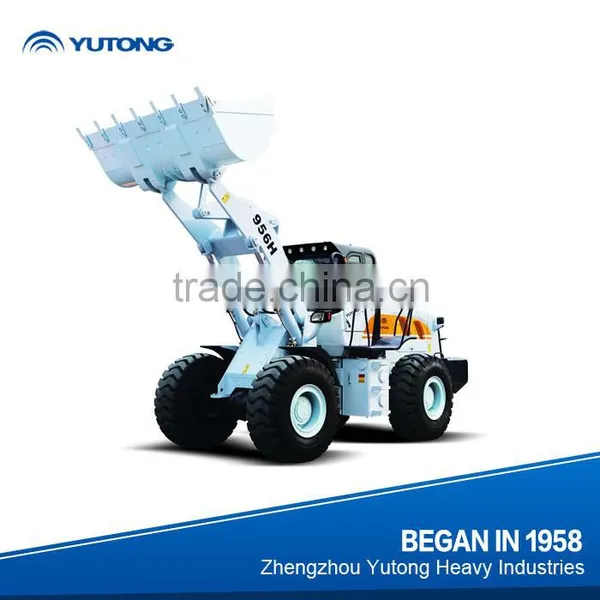

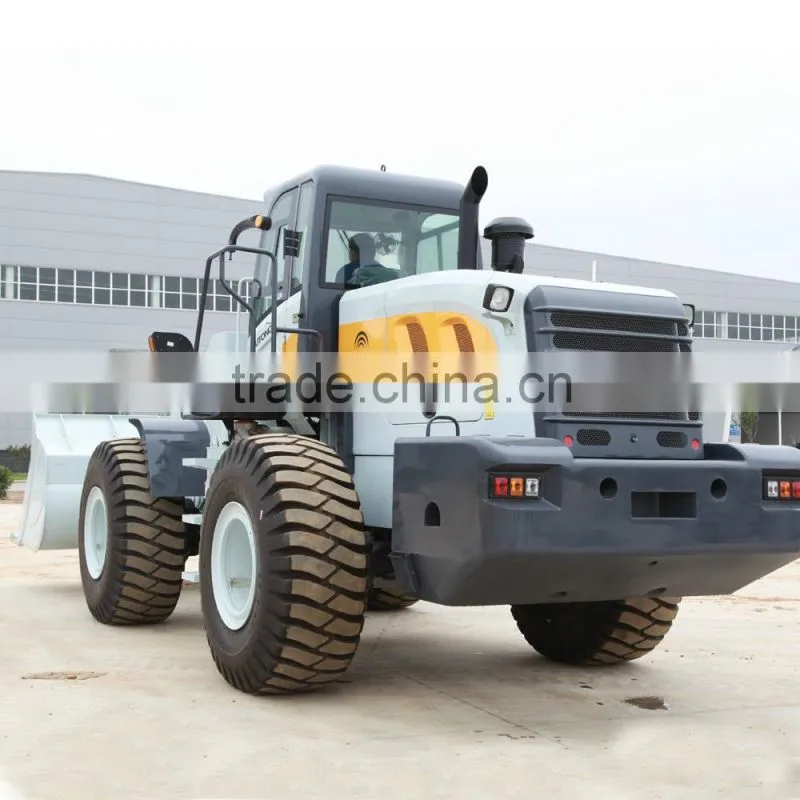

Help CenterYutong Wheel Loader 956H
Related Products
-
China Long Arm 3 Ton Front-end LoaderUS$ 1 - 112,400MOQ: 1 Piece -
China CE Certificate 5 Ton Front-end LoaderUS$ 1 - 111,220MOQ: 1 Unit
-
China Hot Sale 6 Ton Stone Bucket LoaderUS$ 1 - 113,320MOQ: 1 Unit
-
China Long Arm Small Garden Tractor With Front-End LoaderUS$ 1 - 113,480MOQ: 1 Piece
-
5 Ton Earth-moving MachineryUS$ 1 - 116,000MOQ: 1 Set
Overall size (L*W*H) |
8430*3000*3370 |
Rated load |
5 |
Shovel volume |
2.7-4.2 |
Weight of complete machineUnloading height |
16.5 |
Unloading height |
3450 |
Unloading distance |
1070 |
Sum of lifting, dumping and falling time |
10.8 |
Wheelbase |
3325 |
Wheel distance |
2200 |
Maximum dig up force |
175 |
Maximum tractive force |
150 |
Steering angle |
37º |
Maximum driving speed |
36 |
Minimum turning radius |
6097 |
Maximum grade ability |
25 |
Motor Model |
WD10G220E21 |
Motor Rated power |
162 /220 |
Motor Rated revolution |
2200 |
Torque |
949 |
Engine emission |
National Stage II Emission Standard |
Transmission model |
Hangzhou Gear ZL50X54D transmission |
Transmission gear |
Two forward gears, One reverse gear |
Drive axle model |
YuTong M Drive axle |
Drive axle load (t) |
28 |
Brake |
Caliper disc brake |
Tyre Model |
23.5-25-16PR |
Working system pressure (MPa) |
16 |
Working system operating method |
Flexible shaft operation |
Air-conditioning system |
Air conditioner |
Main 936H Performance Features
1. Efficient operation
5.4s for lifting, 10.8s for three elements; the vehicle speed during operation up to 12km/h; high working efficiency.
Frame-centered arrangement, small turning radius; coaxial flow amplifying steering system to ensure flexibility;
162KW Weichai supercharged engine so that the driving force is guaranteed; dual-pump-converging technology so that the hydraulic power is enough.
The lengthened bucket bottom has ensured a big cutting force and bucket drawback angle, and high full coefficient.
2. Performance strength
The mounted boom with discharge height of 3160mm (optional discharge height of 3450mm) meets the superelevation discharge requirement and can improve the working performance;
Breakout force of 175kN and traction of 150kN, which are big enough to fit various severe working conditions;
Long wheelbase (3,325mm) arrangement, and the site suitability and working stability reach the optimized matching condition;
The optimized single-bellcrank equipment is smooth during running and with big force delivering ratio, and the bucket is available to realize automatic leveling.
3. High reliability
The integrated front frame, single-beam rear frame, and the thickened-plate structure have remarkably improved the reliability of the structure;
The adoption of finite element analysis satisfies the requirements of high-strength working;
The articulation joint adopts double-row centering cylindrical-roller bearing so that the load carrying becomes more reasonable and the steering more flexible.
4. Long service life:
The wear plate, tooth, and bucket enjoy much longer service life;
The articulation joint of pin bearing adopts C-shape jacket to make it more effective in dust control and more resistant to wear;
The hydraulic pipeline adopts "cone-O" double seal according to Germany DIN Standard to make it with reliable sealing and good performance in leakage control.
5. More comfortable during driving:
The cab modeling made according to patented technology is in line with the international aesthetic demands and very popular for international users.
The design to enlarge the cab has ensured a lager interior space and a broad vision, which has made the driver more comfortable and safer;
The handbrake and down/up shift have been optimized so that the operation has become more convenient and humanized.
The air conditioner and heater blower of standard configuration with large discharge have made the cab more comfortable.
