earth-moving machinery

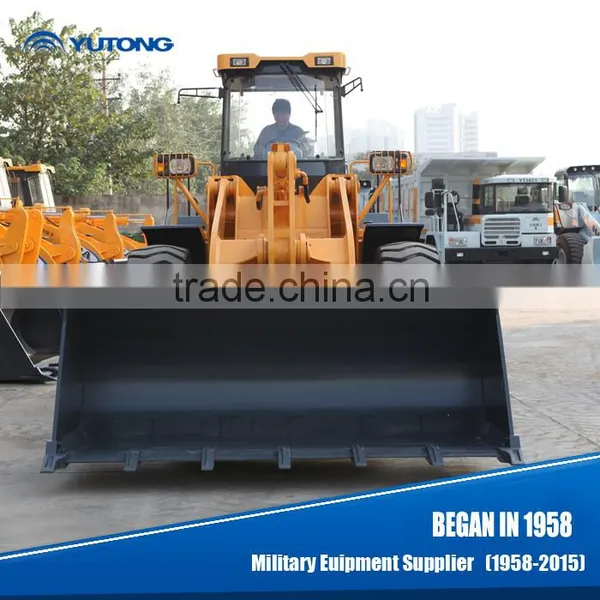

Major technical parameters of 952A
Rated load (t) |
5 |
Capacity of bucket (m3) |
2.7 |
Weight of complete machine (t) |
16.5-16.9 |
Unloading height (mm) |
3450 |
Unloading distance (mm) |
1070 |
Sum time of three items (s) |
10.8 |
Power of engine (kW) |
162 |
Lowest fuel consumption (g / kW.h) |
208 |
Maximum breakout force (kN) |
170 |
Steering angle (º) |
±36 |
Maximum traveling speed (km/h) |
38 |
Minimum turning radius |
5890 |
Outside of tire (mm) |
6235 |
Outside of bucket at transport position(mm) |
6860 |
Wheelbase (mm) |
3200 |
Wheel track (mm) |
2200 |
Overall dimension (length×width×height) (mm) |
8205×3000×3450 |
Minimum ground clearance |
415 |
Main configurations of 952A
Engine model |
WD10G220E21 |
Rated power of engine (kw/hp) |
162 /220 |
Rated speed of engine (rpm) |
2200 |
Maximum torque of engine (N.m) |
860 |
Engine displacement |
China II |
Model of gearbox |
Hangzhou Advance Gearbox ZL50X54D |
Gears of gearbox |
Two forward gears and one backward gear |
Model of drive axle |
50M |
Braking way |
Caliper disc brake |
Tire model |
23.5-25 16PR |
Pressure of working system (MPa) |
17 |
Operation manner of working system |
Flexible axle operation |
A/C system |
Warm air blower |
|
Performance characteristics of 952A
Flexible, efficient, high-unloading----implementor of extraordinary value
The whole machine is equipped with Weichai Phase-II supercharged engine which has excellent performance in the industry. With large power and low fuel consumption, the engine has reliable quality and is economical and practical. Also, the whole machine is equipped with hydraulic power-shift gearbox which is produced by Hangzhou Advance Gearbox and heavy loading drive axle, both of which have reliable quality and superior performance in the industry. The whole machine has strong power and enough horsepower and can work hard, so it is highly appreciated by users.
The vehicle frame is arranged symmetrically and the steering force is small, so the steering is easy and flexible; a standard 3450 unloading height is provided to achieve a unloading with higher height; due to optimized moving point of working device of single rocker arm, 10.8 s of sum time of three items and 170 kN breakout force, the unloading speed is quick and unloading force is large.
Working device of single rocker arm is optimized, motion is smooth, force transmission ratio is large and the bucket can lay flat automatically.
Due to wear-resistant blades and bucket teeth, the service life of bucket becomes longer;
“C”-shaped protecting bush is used at the hinge joint of hinge pin, which has good dustproof effect and makes the hinge joint of hinge pin more wearable.
The hydraulic pipeline adopts “Cone-Ο” double seal meeting German DIN standards, with good leakproofness and strong capacity of anti-leakage;

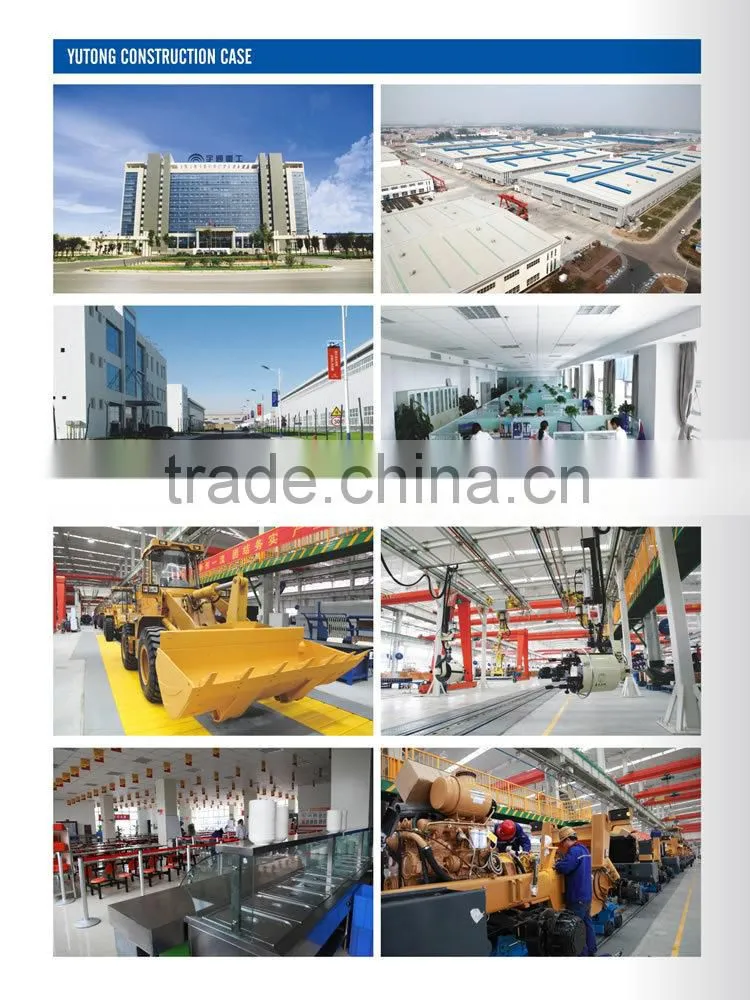

Manufacturing
Yutong Heavy Industries has more than 60 kinds of products that can be classified to such 5 categories as shoveling and transporting machinery, environmental protection equipment and environmental protection engineering, piling machinery, special purpose vehicle, construction hoisting machinery, with its business covering the roads, railways, hydraulic engineering, architectural engineering, coal mines, petroleum engineering, civil engineering, environmental protection.

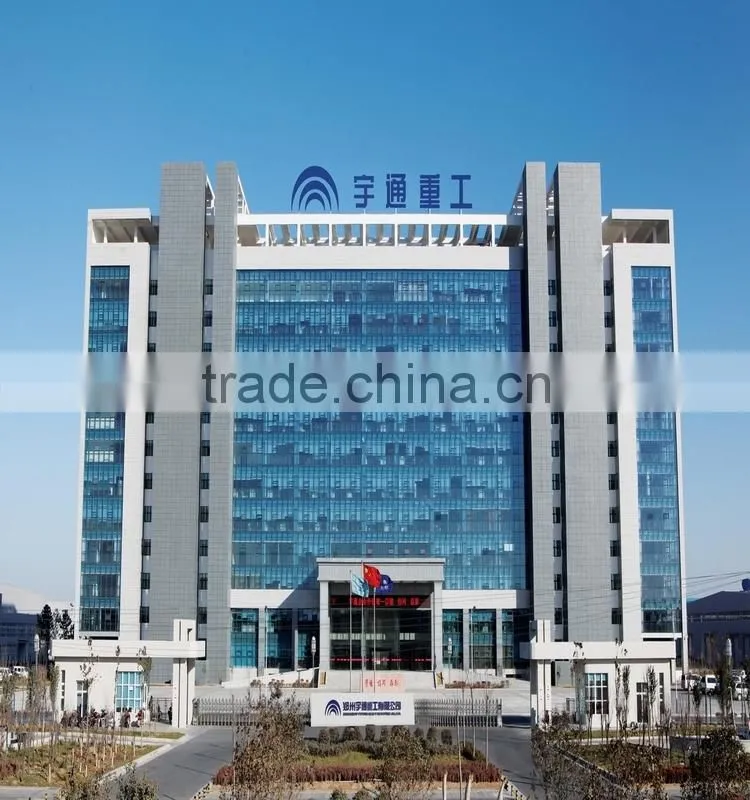

R&D Center
Located in Zhengzhou City, Henan Province and occupying a land of four hundred sixty-five thousand square meters, the company has about 3500 employees including more than 470 construction technicians. It has its own academician working station and provincial corporate technical center so it has a powerful technical innovation and new product development ability.
Welcome to consult us any question you have !
- We supply the package of service to minning works. such as drilling, stone crushing, granule delivery, etc.
- We supply the package of service to sanitation works, such as road cleaning, city garbage compactor, delivery, etc.
- We supply the technique support to these customer for better usage of our products.
- 24 hours response principle, let us to help you faster and better.
- Some products can be found below, (Click the name or the picture for quick browsing)
-
Catalogue Products Description Dump truck Loadage can be 40t -100t Wheel loader Loadage can be 3t - 8 t Bulldozer 3 m3 capcity and other capcity Truck mounted crane 5t - 50 t Crawler crane 50t - 360 t Drilling rigs Rotary Drilling Rigs; Auger Rigs; Anchor rigs Sanitation equipment Sweeper; garbage compressing machine; sewage suction truck; Sprinkler Vehicle etc. Concrete Mixer Truck 8 m3 - 10 m3
You can contact with me for more information and serive.
- Can you give us a brief introduction to Yutong Company please?
We are military equipment supplier, our original facotry is founded at 1958. Good quality and competitive price is our advantage.
- How about the quality guarantee and after -sale service?
For quality guarate, we give one year guarantee, and with 24hours response principle for better service.
We have more than 30 agency all over the world, you can get the most convenient service by nearest agency.
- How about the payment terms?
We accept T/T, L/C, D/P, D/A,even L/G.

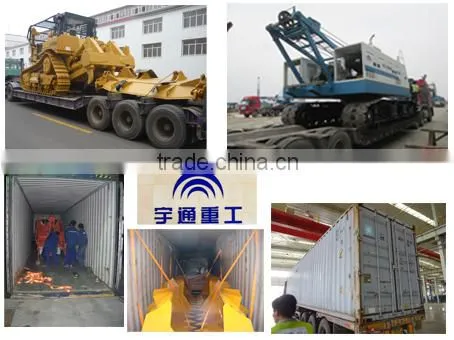

There is no packing to the main machine, small parts and wear parts will be packed in box . |
We usually use roll-on-roll-off ship because the volume is too big to be put into a container. |
|
