Home > Products > Integral Rod > Chisel Bit Integral Rod Hex 22, Shank 22 mm x 108 mm Dia.26-38mm

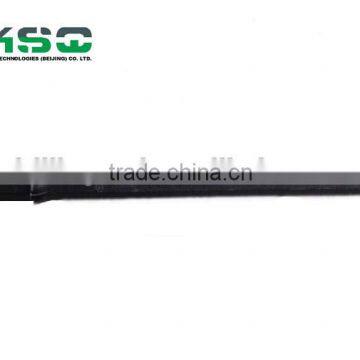

Chisel Bit Integral Rod Hex 22, Shank 22 mm x 108 mm Dia.26-38mm
Negotiable
/ Piece
20 Pieces(Min.Order)
- Beijing or Tianjin
- T/T Credit Card
You May Like
Product Details
| Place of Origin | Shandong, China | Brand Name | MIROC | |
| Model Number | IH22-C38-800, Chisel Bit Integral Rod Hex 22, Shank 22 mm x 108 mm | Type | Other, Chisel Bit Integral Rod Hex 22, Shank 22 mm x 108 mm Dia.26-38mm | |
| Machine Type | Drilling Tool | Material | Carbide | |
| Processing Type | Casting | Use | Ore Mining |
Product Description
Specifications
High strength chromium-molybdenum steel with high fatigue strength and excellent wear resistanceHigh grade tungsten carb
Description
The H22 Integral drills steels, H22 x 108 mm shank, are the most common type within the Dimensional Stone Quarrying Industry. The product range includes a Ø26 - 40 mm bit diameters and lengths from 0.4 – 7.2 meters.
Application
• Dimensional Stone Quarrying Industry
• Underground Mining
• Tunneling
Specification
<
| Part Number | Product Code and Brief Description | Length (mm) | Length (ft/inch) | Bit Diameter (mm) | Weight (kg) |
| 4148300065 | IH22-C38-800, Chisel Bit Integral Rod Hex 22, Shank 22 mm x 108 mm | 800 | 2 5/8 | 38 | 3.1 |
| 4148300066 | IH22-C39-1200, Chisel Bit Integral Rod Hex 22, Shank 22 mm x 108 mm | 1200 | 4 | 39 | 4.3 |
| 4148300067 | IH22-C36-1600, Chisel Bit Integral Rod Hex 22, Shank 22 mm x 108 mm | 1600 | 5 1/4 | 36 | 5.2 |
| 4148300068 | IH22-C36-1800, Chisel Bit Integral Rod Hex 22, Shank 22 mm x 108 mm | 1800 | 6 | 36 | 6 |
| 4148300069 | IH22-C32-2000, Chisel Bit Integral Rod Hex 22, Shank 22 mm x 108 mm | 2000 | 6 5/9 | 32 | 6.7 |
| 4148300070 | IH22-C27-2400, Chisel Bit Integral Rod Hex 22, Shank 22 mm x 108 mm | 2400 | 7 7/8 | 27 | 8 |
| 4148300071 | IH22-C27-3200, Chisel Bit Integral Rod Hex 22, Shank 22 mm x 108 mm | 3200 | 10 1/2 | 27 | 10.2 |
| 4148300072 | IH22-C32-3200, Chisel Bit Integral Rod Hex 22, Shank 22 mm x 108 mm | 3200 | 10 1/2 | 32 | 10.3 |
| 4148300073 | IH22-C30-6400, Chisel Bit Integral Rod Hex 22, Shank 22 mm x 108 mm | 6400 | 21 | 30 | 20.1 |
| 4148300074 | IH22-C26-8000, Chisel Bit Integral Rod Hex 22, Shank 22 mm x 108 mm | 8000 | 26 1/4 | 26 | 25 |
