Specifications
1.Greater Stability and Durability
2.Strict quality control
3.Factory price
4.Better after-servic

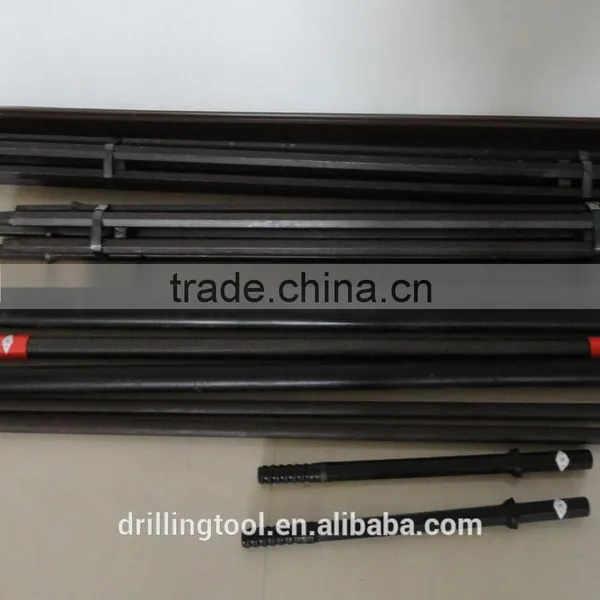

Tapered Rock Shank Rods/Drill Road
Taper drill rod is used for rock drilling, blasting holes and other drilling works in the quarries, coal mines, traffic and other contractions. It works with taper drill bits and has different length for various applications, our taper drill rods come in a variety of taper angles, generally, the light duty rock drill usually use 7 taper or smaller taper angle, the heavy duty rock drill mainly use 11,12 taper angle.
Paramater
| Hex Tapered Rod , 7 ° , 11° , 12° | |||||
| Shank 22 x 108 mm (7/8” x 4 1/4”) | |||||
| Length (mm) | Weight (Kg) | PN. | |||
| 1 | 600 | 1.93 | 4148300179 | ||
| 2 | 800 | 2.54 | 4148300180 | ||
| 3 | 1000 | 3.15 | 4148300181 | ||
| 4 | 1200 | 3.76 | 4148300182 | ||
| 5 | 1500 | 4.68 | 4148300183 | ||
| 6 | 1600 | 4.98 | 4148300184 | ||
| 7 | 1800 | 5.59 | 4148300185 | ||
| 8 | 2000 | 6.2 | 4148300186 | ||
| 9 | 2200 | 6.81 | 4148300187 | ||
| 10 | 2300 | 7.12 | 4148300188 | ||
| 11 | 2400 | 7.42 | 4148300189 | ||
| 12 | 2500 | 7.73 | 4148300190 | ||
| 13 | 2600 | 8.03 | 4148300191 | ||
| 14 | 3000 | 9.25 | 4148300192 | ||
| 15 | 3500 | 10.78 | 4148300193 | ||
| 16 | 4000 | 12.3 | 4148300194 | ||
| 17 | 4500 | 13.83 | 4148300195 | ||
| 18 | 5000 | 15.35 | 4148300196 | ||
| 19 | 5500 | 16.88 | 4148300197 | ||
| 20 | 6000 | 18.3 | 4148300198 | ||
Company Profile:
KSQ Technologies (Beijing) Co. Ltd. is a company that shall cater to the needs of the construction and mining industries, with consideration on providing solutions to the following unique problems:
- Hazardous environment
- Acts, regulations, and other government guidelines that has to be followed
- Significant differences in the way people work, mostly due o physical constraints
- Avoiding downtime on major equipment which can cost tens of thousands of dollars per hour. The best solution with the most reasonable cost is a significant driver.
