Help CenterIntegral Drill Rod for Rock Quarrying
Related Products
-
Small Hole Diameter Integral Drill RodUS$ 7 - 120MOQ: 5 Pieces -
Drill End Rod H22 7/8' Chisel Bit Integral Drill SteelsUS$ 7 - 8MOQ: 10 Pieces
-
Atlas Copco Integral Drill RodsUS$ 7 - 120MOQ: 5 Pieces
-
Chisel Bit Drill Steel Rod , Shank 22x108mmUS$ 7 - 120MOQ: 5 Pieces
-
Integral Steel Manufacturer / Integral Drill Steel Rods H22 / H19US$ 7 - 15MOQ: 10 Pieces
Specifications
High strength chromium-molybdenum steel with high fatigue strength and excellent wear resistanceHigh grade tungsten carb

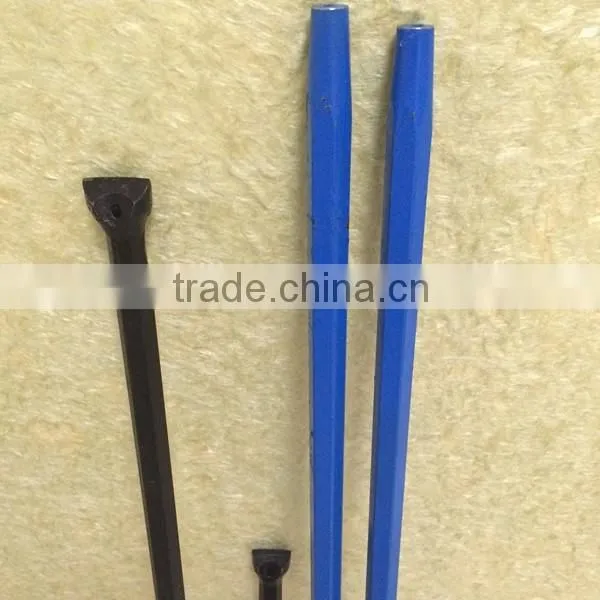

The H22 Integral drills steels, H22 x 108 mm shank, are the most common type within the Dimensional Stone Quarrying Industry. The product range includes a Ø26 - 40 mm bit diameters and lengths from 0.4 – 7.2 meters.
• Suitable for small hole range
• Widely used in Dimensional Stone Quarrying Industry
Color: Based on Customer requirements
Material: Tungsten carbide and high strength alloy steel
Processing: CNC milling and proprietary heat treatment process
Product Name: |
hard rock Mining Integral drill steel,Integral drill rod |
|||
Types |
Tapered drill rods, Integral drill rods, Plug hole rods |
|||
Application:: |
Tapered drill rods are used in granite and marble quarry, gold mine, railway, tunnel, etc. for drilling |
|||
Material: |
High quality carbide and high quality steel |
|||
MOQ: |
No requirement for testing and trial order |
|||
Applications of integral drill steel
• Dimensional Stone Quarrying Industry
• Underground Mining
• Tunneling,quarrying
Competitive Advantage
• High strength chromium-molybdenum steel with high fatigue strength and excellent wear resistance
• High grade tungsten carbide inserts
Specification of integral drill steel
Types of drill rods |
Specifications |
Length (mm) |
Shank |
Weight (kg) |
Tapered drill rods |
Taper Angle: 4, 6, 7, 11, 12 degree |
400mm to 8000mm |
Hex22mm*108mm Hex25mm*159mm Hex19mm*108mm |
1.7 - 24.9 |
Integral drill steel |
Bit diameter: 26mm, 28mm, 30mm, 32mm, 34mm, 36mm, 38mm, 40mm, 42mm |
400mm to 4800mm |
3 – 15.4 |
|
Plug hole rods |
Chisel bit diameter: 17mm, 20mm, 22mm |
150mm to 710mm |
0.6 - 2.9 |
Send Inquiry to This Supplier
