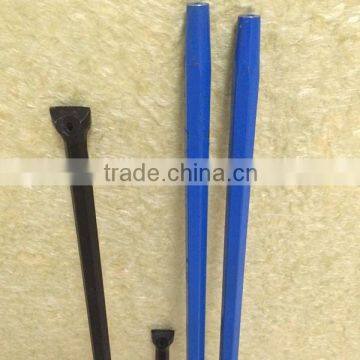

Chromium Molybdenum Steel Integral Drill Rod With Heat Treatment Process
- 30000 Piece / Pieces per Month
- Tianjin Port
- T/T L/C D/P D/A Credit Card PayPal
You May Like
-
Tungsten Carbide Chisel Bit Integral Rod
-
Chisel Bit H22 Hexagonal Drill Extension Rod 22 mm x 108 mm
-
Chisel Bit Carbide Drill Rod Hex 22
-
2000mm 8000mm H22 Integral Drill Rod 4 Inch 6 Inch Rock Drill Rod
-
Chisel Bit Integral Rod Shank 19 mm x 108 mm Dia.26-29mm
-
Plug Hole Integral Drill Rod Hex Shank 19 mm x 108 mm
Product Details
| Place of Origin | Shandong, China | Brand Name | Miroc | |
| Model Number | Integral Drill Rod | Type | Other, Integral Drill Rod, Integral Drill Rod | |
| Machine Type | Drilling Tool | Certification | API | |
| Material | Carbon Steel | Processing Type | Forging | |
| Use | Other, tunneling, mining,quarrying |
Product Description
Specifications
High strength chromium-molybdenum steel with high fatigue strength and excellent wear resistanceHigh grade tungsten carb
The H22 Integral drills steels, H22 x 108 mm shank, are the most common type within the Dimensional Stone Quarrying Industry. The product range includes a Ø26 - 40 mm bit diameters and lengths from 0.4 – 7.2 meters.
• Suitable for small hole range
• Widely used in Dimensional Stone Quarrying Industry
Color: Based on Customer requirements
Material: Tungsten carbide and high strength alloy steel
Processing: CNC milling and proprietary heat treatment process
Product Name: | hard rock Mining Integral drill steel,Integral drill rod | |||
Types | Tapered drill rods, Integral drill rods, Plug hole rods | |||
Application:: | Tapered drill rods are used in granite and marble quarry, gold mine, railway, tunnel, etc. for drilling | |||
Material: | High quality carbide and high quality steel | |||
MOQ: | No requirement for testing and trial order | |||
Applications of integral drill steel
• Dimensional Stone Quarrying Industry
• Underground Mining
• Tunneling,quarrying
Competitive Advantage
• High strength chromium-molybdenum steel with high fatigue strength and excellent wear resistance
• High grade tungsten carbide inserts
Specification of integral drill steel
Types of drill rods | Specifications | Length (mm) | Shank | Weight (kg) |
Tapered drill rods | Taper Angle: 4, 6, 7, 11, 12 degree | 400mm to 8000mm | Hex22mm*108mm Hex25mm*159mm Hex19mm*108mm | 1.7 - 24.9 |
Integral drill steel | Bit diameter: 26mm, 28mm, 30mm, 32mm, 34mm, 36mm, 38mm, 40mm, 42mm | 400mm to 4800mm | 3 – 15.4 | |
Plug hole rods | Chisel bit diameter: 17mm, 20mm, 22mm | 150mm to 710mm | 0.6 - 2.9 |
Packaging:Carton or Wooden Box
KSQ Technologies (Beijing) Co. Ltd. is a company that shall cater to the needs of the construction and mining industries, with consideration on providing solutions to the following unique problems:
- Hazardous environment
- Acts, regulations, and other government guidelines that has to be followed
- Significant differences in the way people work, mostly due to physical constraints
- Avoiding downtime on major equipment which can cost tens of thousands of dollars per hour. The best solution with the most reasonable cost is a significant driver.
KSQ Technologies (Beijing) Co. Ltd. has significant experience and know-how in the supply of materials, components, finished goods, specially designed/engineered equipment, and services from China. The company caters to medium to large scale clients who are doing projects and capital expansion, as well as to firms who require support with consumable products, maintenance, and repair operations.
