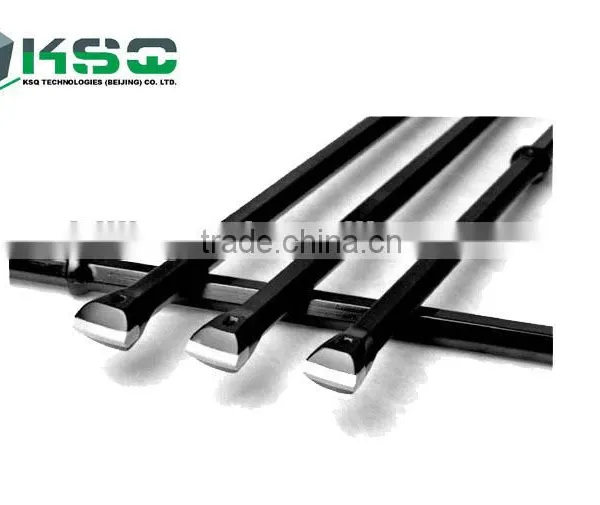

Chisel Bit Integral Rod Hex 22, Shank 22 mm x 108 mm Dia.31-40mm

Chisel Bit Integral Rod Hex 22, Shank 22 mm x 108 mm Dia.31-40mm thumbnail-1
Chisel Bit Integral Rod Hex 22, Shank 22 mm x 108 mm Dia.31-40mm thumbnail-2
Chisel Bit Integral Rod Hex 22, Shank 22 mm x 108 mm Dia.31-40mm photo-1
Chisel Bit Integral Rod Hex 22, Shank 22 mm x 108 mm Dia.31-40mm photo-2
Negotiable MOQ: 20 Pieces (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Shandong, China
Brand Name:
MIROC
Model Number:
IH22-C40-800, Chisel Bit Integral Rod Hex 22, Shank 22 mm x 108 mm
Contact Supplier Request Quote Chat Now
KSQ Technologies (Beijing) Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Beijing or Tianjin
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Shandong, China
Brand Name MIROC
Model Number IH22-C40-800, Chisel Bit Integral Rod Hex 22, Shank 22 mm x 108 mm
Type Other, Chisel Bit Integral Rod Hex 22, Shank 22 mm x 108 mm Dia.31-40mm
Machine Type Drilling Tool
Material Carbide
Processing Type Casting
Use Well Drilling

Specifications

High strength chromium-molybdenum steel with high fatigue strength and excellent wear resistance
High grade tungsten carb

Description



The H22 Integral drills steels, H22 x 108 mm shank, are the most common type within the Dimensional Stone Quarrying Industry. The product range includes a Ø26 - 40 mm bit diameters and lengths from 0.4 – 7.2 meters.



Application



• Dimensional Stone Quarrying Industry
• Underground Mining
• Tunneling



Specification



<

<

Part Number Product Code and Brief Description Length (mm) Length (ft/inch) Bit Diameter (mm) Weight (kg)
4148300044 IH22-C40-800, Chisel Bit Integral Rod Hex 22, Shank 22 mm x 108 mm 800 2 5/8 40 3
4148300045 IH22-C39-1600, Chisel Bit Integral Rod Hex 22, Shank 22 mm x 108 mm 1600 5 1/4 39 5.2
4148300046 IH22-C38-2400-1, Chisel Bit Integral Rod Hex 22, Shank 22 mm x 108 mm 2400 7 7/8 38 8
4148300047 IH22-C37-3200, Chisel Bit Integral Rod Hex 22, Shank 22 mm x 108 mm 3200 10 1/2 37 10.2
4148300048 IH22-C36-4000, Chisel Bit Integral Rod Hex 22, Shank 22 mm x 108 mm 4000 13 1/8 36 12.9
4148300049 IH22-C35-4800, Chisel Bit Integral Rod Hex 22, Shank 22 mm x 108 mm 4800 15 3/4 35 15.1
4148300050 IH22-C34-5600, Chisel Bit Integral Rod Hex 22, Shank 22 mm x 108 mm 5600 18 3/8 34 17.6
4148300051 IH22-C33-6400, Chisel Bit Integral Rod Hex 22, Shank 22 mm x 108 mm 6400 21    33 20.1
4148300052 IH22-C32-7200, Chisel Bit Integral Rod Hex 22, Shank 22 mm x 108 mm 7200 23 5/8 32 22.5
4148300053 IH22-C31-8000, Chisel Bit Integral Rod Hex 22, Shank 22 mm x 108 mm 8000 26 1/4 31 25
