Specifications
High strength chromium-molybdenum steel with high fatigue strength and excellent wear resistanceHigh grade tungsten carb

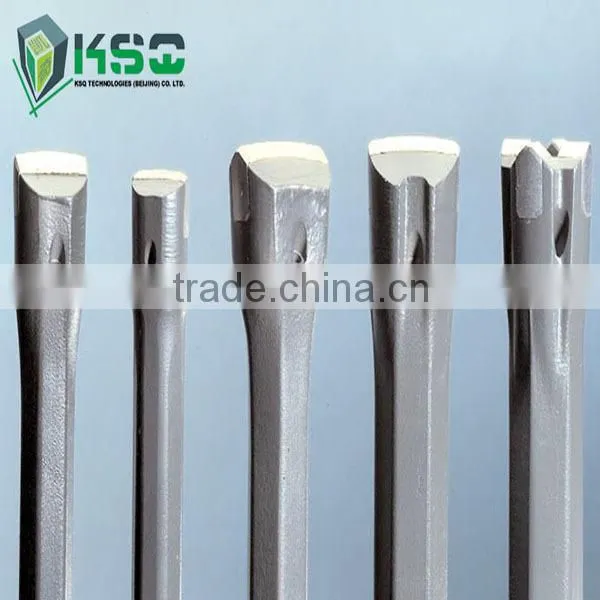

Alloy Steel Hex 19 Integral Drill Rod
Description
Within the Dimensional Stone Quarrying Industry, hole sizes are generally quite small (Ø25-34mm) and are therefore too small to accommodate threaded equipment. H19 Chisel Bit Integral Rods with H19 x 108mm shank are suitable for the smaller hole ranges, between Ø25-27mm. Smallest available size is Ø23mm.
• Suitable for small hole range
• Widely used in Dimensional Stone Quarrying Industry
Color: Based on Customer requirements
Material: Tungsten carbide and high strength alloy steel
Processing: CNC milling and proprietary heat treatment process
Type: Chisel Bit Integral Rod Hex 19 Shank 19 mm x 108 mm
Applications
• Dimensional Stone Quarrying Industry
• Underground Mining
• Tunneling
Competitive Advantage
• High strength chromium-molybdenum steel with high fatigue strength and excellent wear resistance
• High grade tungsten carbide inserts
specification
| Part Number | Product Code and Brief Description |
Length (mm) |
Length (ft/inch) |
Bit Diameter (mm) |
Weight (kg) |
| 4148300000 |
IH19-C29-400, Chisel Bit Integral Rod Hex 19, Shank 19 mm x 108 mm |
400 | 1 1/3 | 29 | 1.3 |
| 4148300001 |
IH19-C29-500, Chisel Bit Integral Rod Hex 19, Shank 19 mm x 108 mm |
500 | 1 2/3 | 29 | 1.5 |
| 4148300002 |
IH19-C28-800, Chisel Bit Integral Rod Hex 19, Shank 19 mm x 108 mm |
800 | 2 5/8 | 28 | 2.2 |
| 4148300003 |
IH19-C28-1000, Chisel Bit Integral Rod Hex 19, Shank 19 mm x 108 mm |
1000 | 3 2/7 | 28 | 2.6 |
| 4148300004 |
IH19-C27-1200, Chisel Bit Integral Rod Hex 19, Shank 19 mm x 108 mm |
1200 | 4 | 27 | 3 |
| 4148300005 |
IH19-C27-1600, Chisel Bit Integral Rod Hex 19, Shank 19 mm x 108 mm |
1600 | 5 1/4 | 27 | 3.9 |
| 4148300006 |
IH19-C26-2400, Chisel Bit Integral Rod Hex 19, Shank 19 mm x 108 mm |
2400 | 7 7/8 | 26 | 5.7 |
Packaging:Carton or Wooden Box
KSQ Technologies (Beijing) Co. Ltd. is a company that shall cater to the needs of the construction and mining industries, with consideration on providing solutions to the following unique problems:
- Hazardous environment
- Acts, regulations, and other government guidelines that has to be followed
- Significant differences in the way people work, mostly due o physical constraints
- Avoiding downtime on major equipment which can cost tens of thousands of dollars per hour. The best solution with the most reasonable cost is a significant driver.
KSQ Technologies (Beijing) Co. Ltd. has significant experience and know-how in the supply of materials, components, finished goods, specially designed/engineered equipment, and services from China. The company caters to medium to large scale clients who are doing projects and capital expansion, as well as to firms who require support with consumable products, maintenance, and repair operations.
